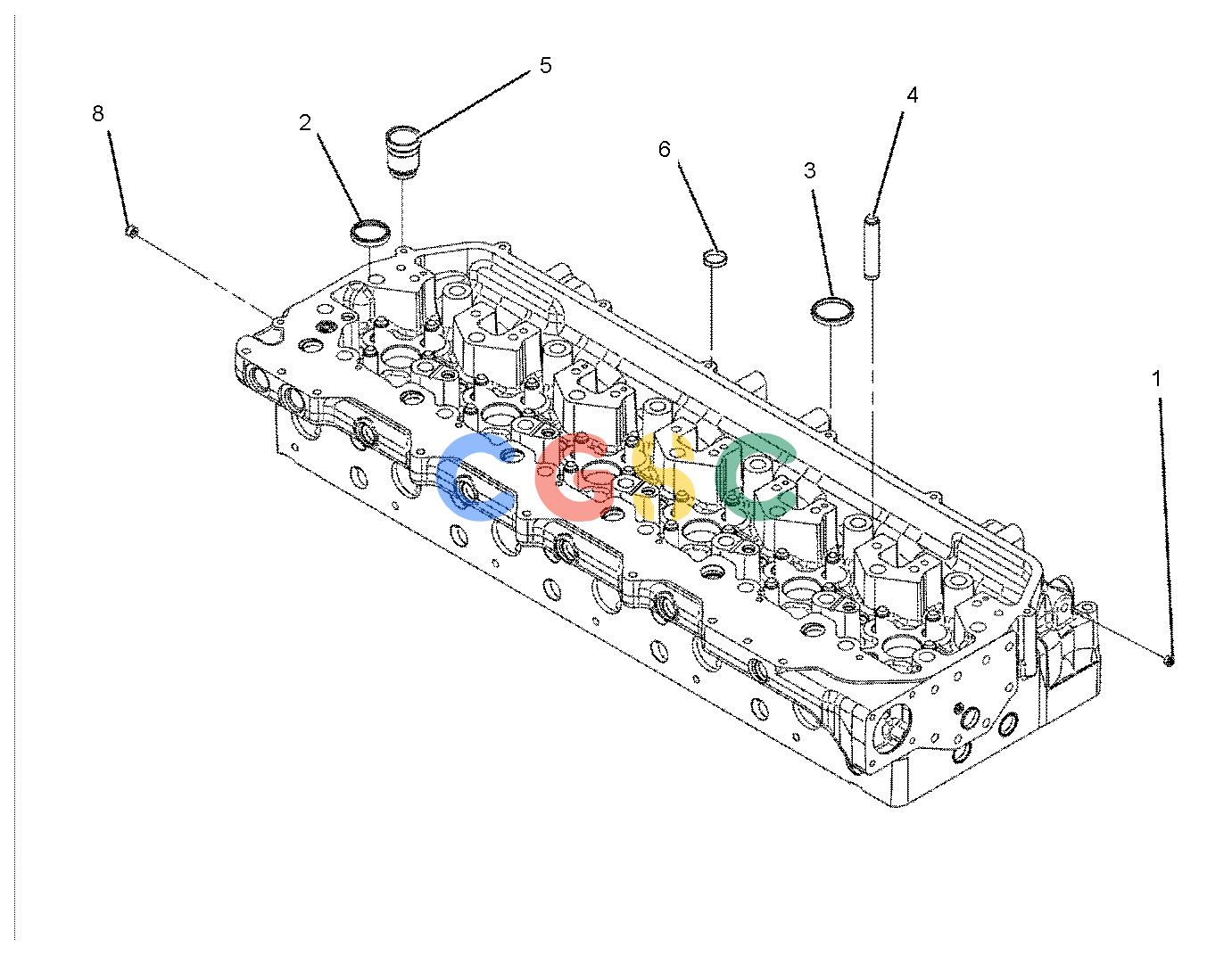

卡特零件查询（725） 245-4031: CYLINDER HEAD AS
广数供应链运营团队, 14 02月, 2025，浏览：
242 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 217-5763 | [5] | PLUG | |
| 2. | 224-1270 | [12] | INSERT-VALVE SEAT(EXHAUST)(STANDARD) | |
| | 331-5010AB | | INSERT-VALVE SEAT(0.13-MM OS)(EXHAUST) | |
| | 331-5011AB | | INSERT-VALVE SEAT(0.26-MM OS)(EXHAUST) | |
| | 254-3944AB | | INSERT-VALVE SEAT(0.51-MM OS)(EXHAUST) | |
| 3. | 224-2410 | [12] | INSERT-VALVE SEAT(INLET)(STANDARD) | |
| | 254-3943AB | | INSERT-VALVE SEAT(0.51-MM OS, INLET) | |
| | 314-3055AB | | INSERT-VALVE SEAT(SHORT 0.5-MM)(INLET) | |
| | 314-3056AB | | INSERT-VALVE SEAT(0.13-MM OS)(INLET) | |
| | 314-3057AB | | INSERT-VALVE SEAT(0.13-MM OS)(INLET) | |
| | 314-3058AB | | INSERT-VALVE SEAT(0.26-MM OS)(INLET) | |
| | 314-3060AB | | INSERT-VALVE SEAT(1.26-MM OS, INLET) | |
| | 314-3061AB | | INSERT-VALVE SEAT(0.51-MM OS, INLET) | |
| 4. | 224-3124 | [24] | GUIDE-VALVE | |
| 5. | 226-0262 | [6] | SLEEVE-INJECTOR | |
| 6. | 245-3353 | [2] | PLUG | |
| 8. | 3B-0623 | [36] | PLUG-CUP | |
| | A | | NOT PART OF THIS GROUP |
| | B | | USE AS REQUIRED |
