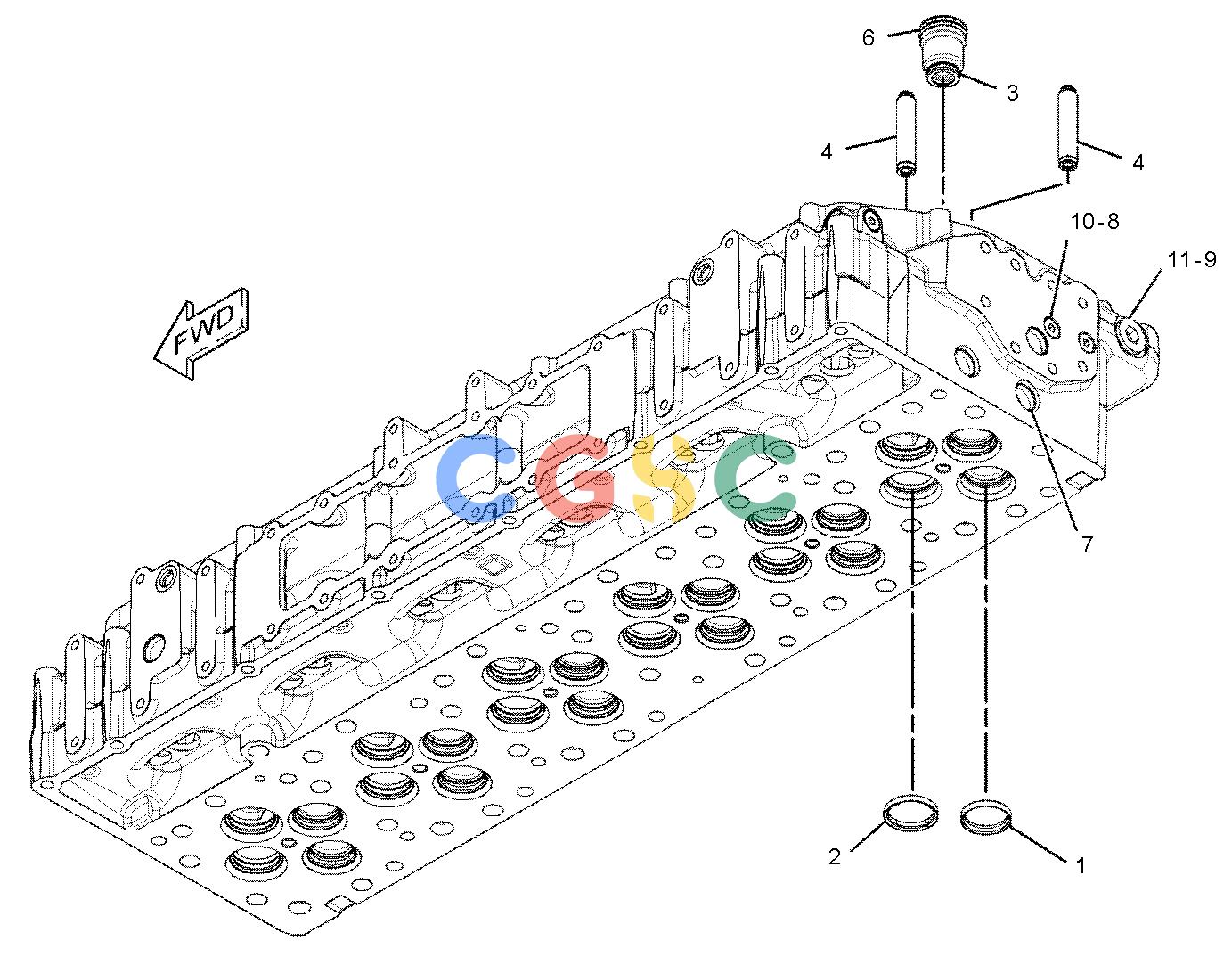

卡特零件查询（725） 342-4397: CYLINDER HEAD AS
广数供应链运营团队, 14 02月, 2025，浏览：
612 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 224-1270 | [12] | INSERT-VALVE SEAT(EXHAUST)(STANDARD) | |
| | 254-3944AB | | INSERT-VALVE SEAT(0.51-MM OS) | |
| | 331-5010AB | | INSERT-VALVE SEAT(0.13-MM OS) | |
| | 331-5011AB | | INSERT-VALVE SEAT(0.26-MM OS) | |
| 2. | 260-4855 | [12] | INSERT-VALVE SEAT(INLET)(STANDARD) | |
| | 331-5007AB | | INSERT-VALVE SEAT(0.13-MM OS, INLET) | |
| | 331-5008AB | | INSERT-VALVE SEAT(0.26-MM OS, INLET) | |
| | 331-5009AB | | INSERT-VALVE SEAT(0.51-MM OS, INLET) | |
| 3. | 9X-7430 | [6] | SEAL-O-RING | |
| 4. | 268-2953 | [24] | GUIDE-VALVE | |
| 6. | 166-2904 | [12] | SEAL-O-RING | |
| 7. | 3B-0623 | [35] | PLUG-CUP | |
| 8. | 214-7568 | [7] | SEAL-O-RING | |
| 9. | 6V-5063 | [1] | SEAL-O-RING | |
| 10. | 9S-8004 | [7] | PLUG(9/16-18-THD) | |
| 11. | 9S-8008 | [1] | PLUG(1-1/16-12-THD) | |
| | A | | NOT PART OF THIS GROUP |
| | B | | USE AS REQUIRED |
