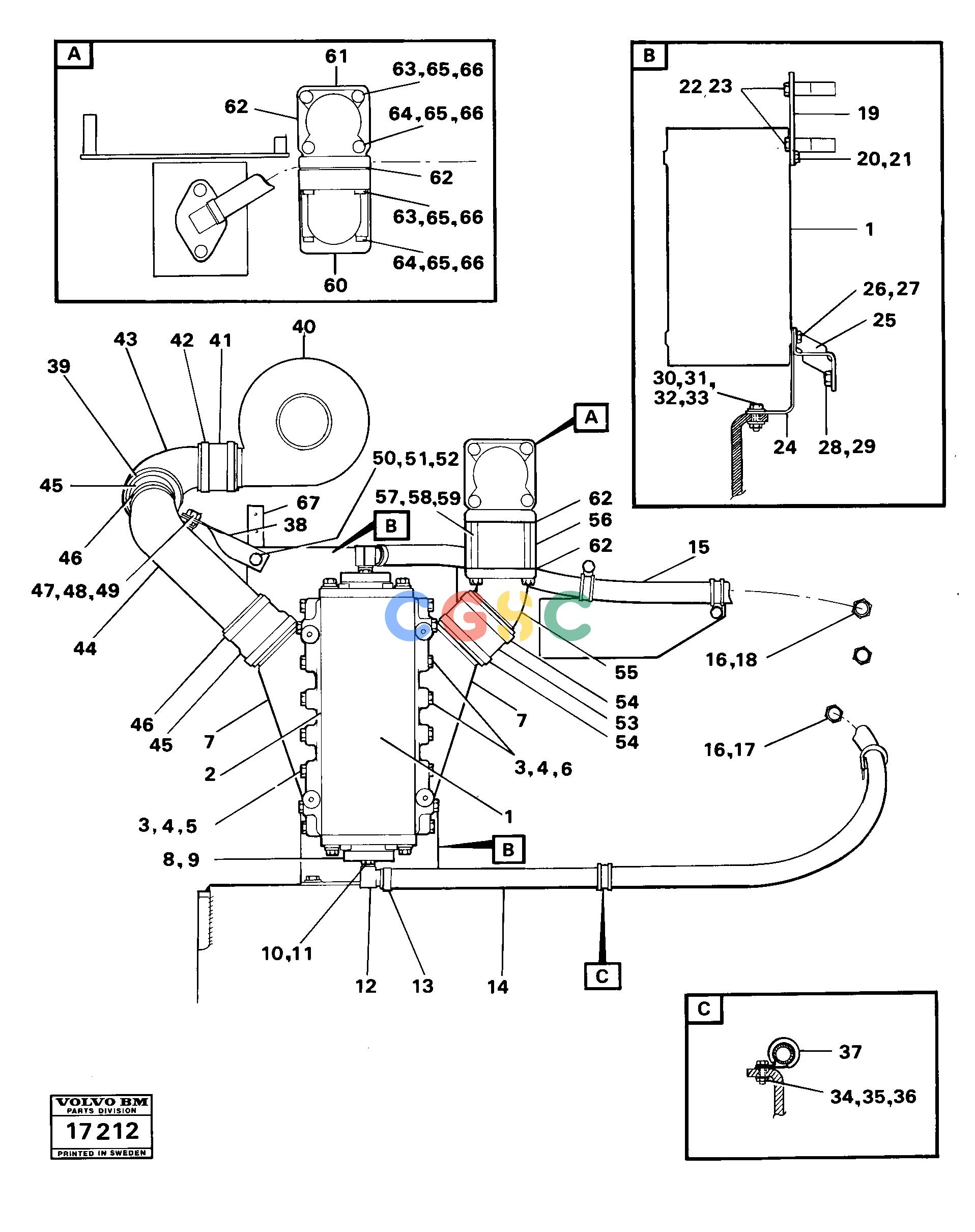

沃尔沃零件查询4400 Air cooler with fitting parts 99297, 992994400 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
199 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE60111880
|
[0024] |
Hexagon screw
|
|
| 49. |
VOE955782
|
[1] |
Hexagon nut
|
|
| 50. |
VOE959793
|
[1] |
Hexagon screw
|
|
| 51. |
VOE13941907
|
[1] |
Washer
|
|
| 52. |
VOE13955894
|
[2] |
Washer
|
|
| 53. |
VOE4771485
|
[1] |
Hose
|
|
| 54. |
VOE943481
|
[2] |
Hose clamp
|
|
| 55. |
VOE4774722
|
[1] |
Inlet manifold
|
|
| 56. |
|
[1] |
Starter element
|
SEE GROUP 21
|
| 57. |
VOE955668
|
[4] |
Hexagon screw
|
|
| 58. |
VOE13941907
|
[4] |
Washer
|
|
| 6. |
VOE940132
|
[0008] |
Hexagon screw
|
|
| 59. |
VOE13955894
|
[0004] |
Washer
|
|
| 60. |
VOE4865141
|
[0001] |
Pipe elbow
|
|
| 61. |
VOE4774815
|
[0001] |
Pipe elbow
|
|
| 62. |
VOE471682
|
[0004] |
Gasket
|
|
| 63. |
VOE940186
|
[0004] |
Hexagon screw
|
|
| 64. |
VOE955533
|
[0004] |
Hexagon screw
|
|
| 65. |
VOE13941907
|
[0004] |
Washer
|
|
| 66. |
VOE13955894
|
[0004] |
Washer
|
|
| 67. |
VOE4854198
|
[0001] |
Attaching Plate
|
|
| 7. |
VOE4774934
|
[0002] |
End plate
|
|
| |
VOE4774934
|
[0002] |
End plate
|
|
| 8. |
VOE4774814
|
[0002] |
Flange
|
|
| 1. |
VOE4774864
|
[0001] |
Charge air cooler
|
|
| 9. |
VOE13960227
|
[0002] |
O-ring
|
|
| 10. |
VOE13941907
|
[0004] |
Washer
|
|
| 11. |
VOE13955295
|
[0004] |
Screw
|
|
| 12. |
VOE961610
|
[0002] |
Elbow nipple
|
|
| 13. |
VOE13943474
|
[0004] |
Hose clamp
|
|
| 14. |
VOE192358
|
[REQ] |
Rubber hose
|
L=1000
|
| 15. |
VOE192358
|
[REQ] |
Rubber hose
|
L=750
|
| 16. |
VOE13943474
|
[0004] |
Hose clamp
|
|
| 17. |
VOE961659
|
[0001] |
Nipple
|
|
| 18. |
VOE479974
|
[0001] |
Nipple
|
|
| 2. |
VOE11033126
|
[0002] |
Gasket
|
|
| 19. |
|
[0001] |
Anchorage
|
|
| 20. |
VOE13955295
|
[0002] |
Screw
|
|
| 21. |
VOE13941907
|
[0002] |
Washer
|
|
| 22. |
VOE955533
|
[0003] |
Hexagon screw
|
|
| 23. |
VOE13941907
|
[0004] |
Washer
|
|
| 24. |
|
[0001] |
Plate
|
|
| 25. |
|
[0001] |
Anchorage
|
|
| 26. |
VOE955297
|
[0002] |
Hexagon screw
|
|
| 27. |
VOE13941907
|
[0002] |
Washer
|
|
| 28. |
VOE955534
|
[0002] |
Hexagon screw
|
|
| 3. |
VOE13955894
|
[0032] |
Washer
|
|
| 29. |
VOE13942336
|
[0001] |
Spring washer
|
|
| 30. |
VOE13960141
|
[0004] |
Washer
|
|
| 31. |
VOE13941907
|
[0002] |
Washer
|
|
| 32. |
VOE940142
|
[0002] |
Hexagon screw
|
|
| 33. |
VOE955782
|
[0002] |
Hexagon nut
|
|
| 34. |
VOE955297
|
[0001] |
Hexagon screw
|
|
| 35. |
VOE13941907
|
[0001] |
Washer
|
|
| 36. |
VOE955782
|
[0001] |
Hexagon nut
|
|
| 37. |
VOE943717
|
[0004] |
Clamp
|
|
| 38. |
|
[0001] |
Anchorage
|
|
| 4. |
VOE13941907
|
[0032] |
Washer
|
|
| 39. |
VOE941434
|
[0001] |
Clamp
|
|
| 40. |
VOE4880772
|
[0001] |
Turbocharger
|
|
| 41. |
VOE466327
|
[0001] |
Hose
|
|
| 42. |
VOE943479
|
[0002] |
Hose clamp
|
|
| 43. |
VOE4804059
|
[0001] |
Pipe elbow
|
|
| 44. |
VOE4774721
|
[0001] |
Tube
|
|
| 45. |
VOE4804110
|
[2] |
Hose
|
|
| 46. |
VOE943481
|
[4] |
Hose clamp
|
|
| 47. |
VOE940142
|
[1] |
Hexagon screw
|
|
| 48. |
VOE13955894
|
[1] |
Washer
|
|
