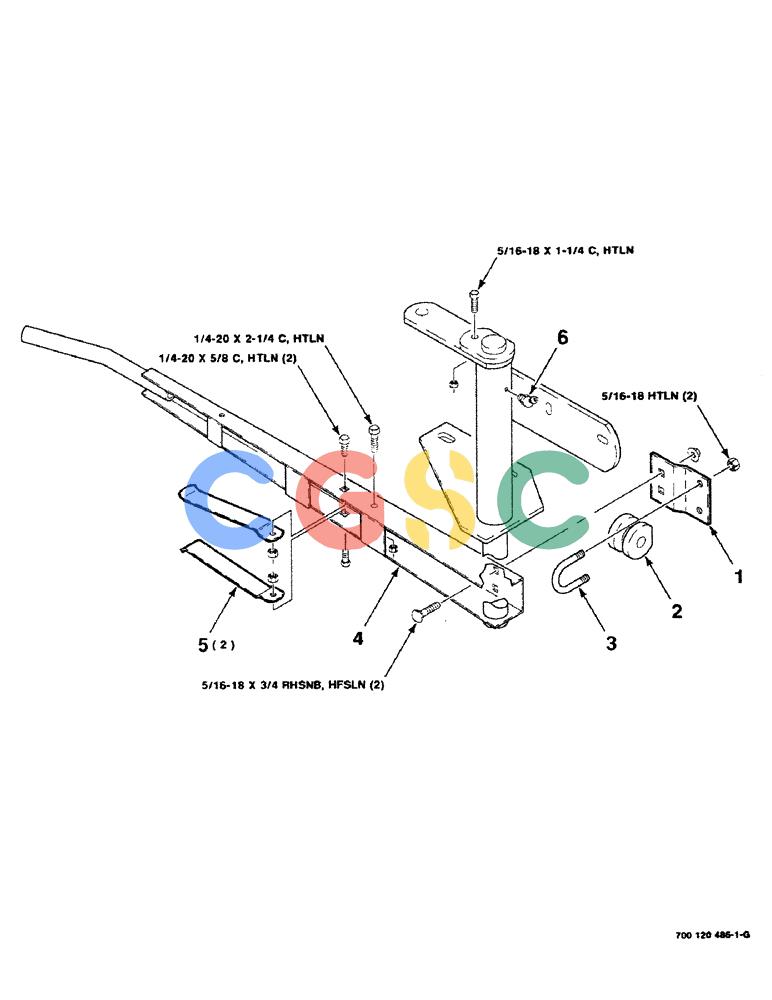

凯斯零件查询(8430) - CASE IH ROUND BALER (1/88-12/00) (6-08) - THREADER ARM ASSEMBLY Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
319 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700117223
|
[1] |
GUIDE
|
HFI
SUPPORT - guide, twine
|
| 2. |
7745003
|
[1] |
GUIDE
|
L
|
| 3. |
51200861
|
[1] |
U-BOLT
|
BRR
|
| 4. |
700120487
|
[1] |
ARM
|
HFI
WA - twine
|
| 5. |
700707665
|
[2] |
LARGE PLATE
|
IH
SPRING - leaf
|
| 6. |
77040
|
[1] |
FITTING
|
CAS
1/4-28 x 45deg. ZERK Superseded by part number: 219-90, 219-90, 87569
|
| . . |
700707343
|
[2] |
SCREW
|
CAS
1/4-20 x 5/8 C Superseded by part number: 280641
|
| . . |
7773849
|
[1] |
BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 5
|
HFI
1/4-20 x 2-1/4 C Superseded by part number: 87405
|
| . . |
7701568
|
[1] |
BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5
|
CAS
5/16-18 x 1-1/4 C Superseded by part number: 413-520
|
| . . |
700013
|
[2] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5
|
CAS
5/16-18 x 3/4 RHSNB
|
| . . |
7774839
|
[3] |
LOCK NUT
|
CAS
1/4-20 HTLN Superseded by part number: 280129
|
| . . |
231-4115
|
[3] |
NUT,5/16"-18, GB
|
CAS
5/16-18 HTLN Superseded by part number: 280736
|
| . . |
700239
|
[2] |
5/16-18 HFSLN
|
|
