斗山零件查询OVERHAUL GASKET KIT - TOP DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
797 次

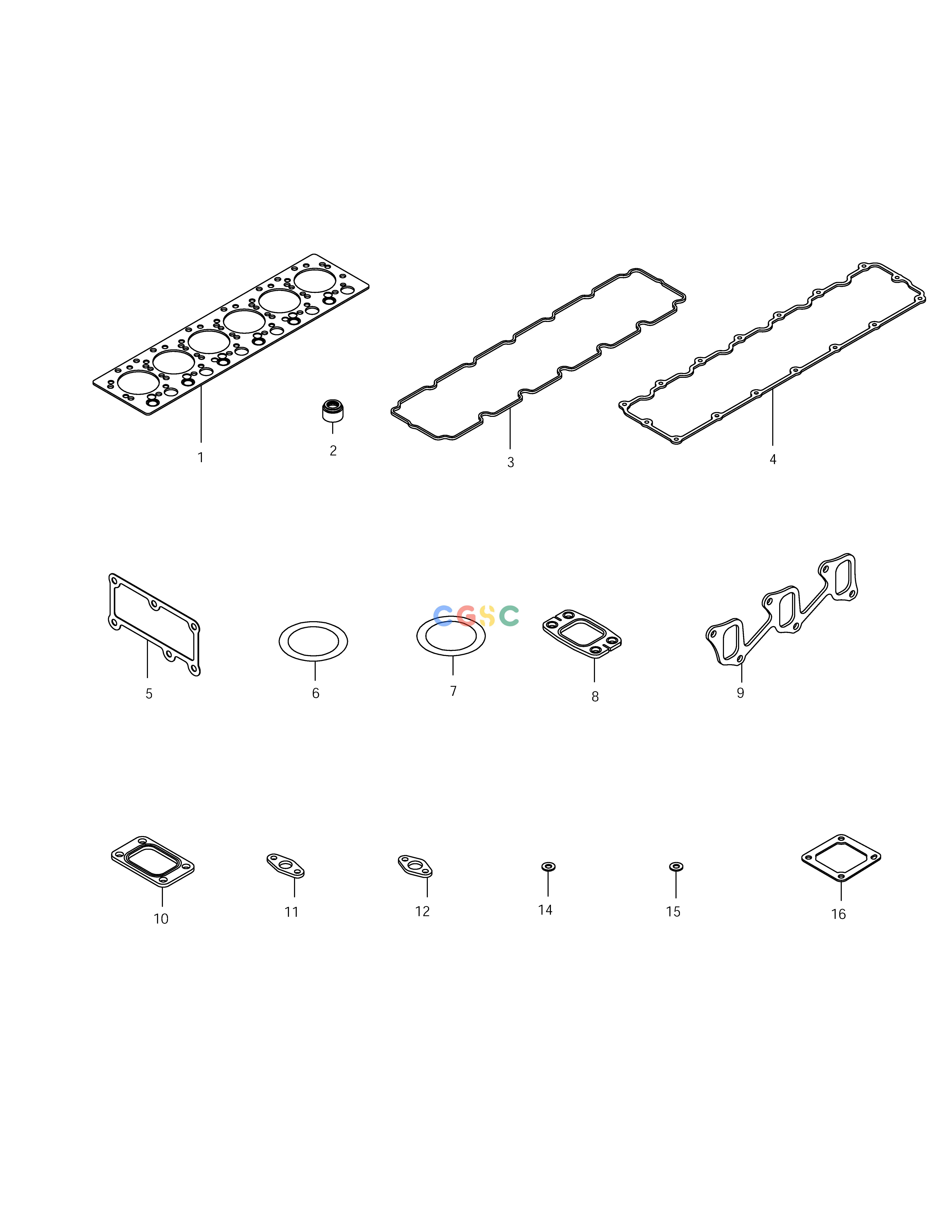

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
65.99605-8042
|
[1] |
TOP OVERHAUL GASKET KIT
|
|
| 1. |
65.03901-0071
|
[1] |
GASKET;CYLINDER HEAD
|
|
| 10. |
65.09901-0018A
|
[1] |
GASKET
|
|
| 11. |
65.96601-0067
|
[1] |
GASKET;T/C OIL RETURN
|
|
| 12. |
65.96601-0052
|
[1] |
GASKET
|
|
| 14. |
65.96507-0053
|
[6] |
RING;SEAL
|
|
| 15. |
06.56180-0712
|
[18] |
RING;SEAL
|
|
| 16. |
65.09904-0008
|
[2] |
GASKET;AIR HEATER
|
|
| 2. |
65.03905-5002
|
[14] |
PACKING;HEAD COVER
|
|
| 3. |
65.03905-0037A
|
[1] |
GASKET;HEAD COVER
|
|
| 4. |
65.03905-0041
|
[1] |
GASKET;CYL. HEAD COVER
|
400603-00050
|
| 4. |
400603-00050
|
[1] |
GASKET;INTERMEDIATE
|
|
| 5. |
65.06904-0020
|
[1] |
GASKET;THERMOSTAT
|
|
| 6. |
65.06904-0003
|
[1] |
GASKET;THERMOSTAT
|
|
| 7. |
65.96501-0099A
|
[2] |
O-RING
|
|
| 8. |
65.08901-0045
|
[6] |
GASKET;EXHAUST MANIFOLD
|
|
| 9. |
65.08902-0030A
|
[2] |
GASKET;MANIFOLD
|
|
