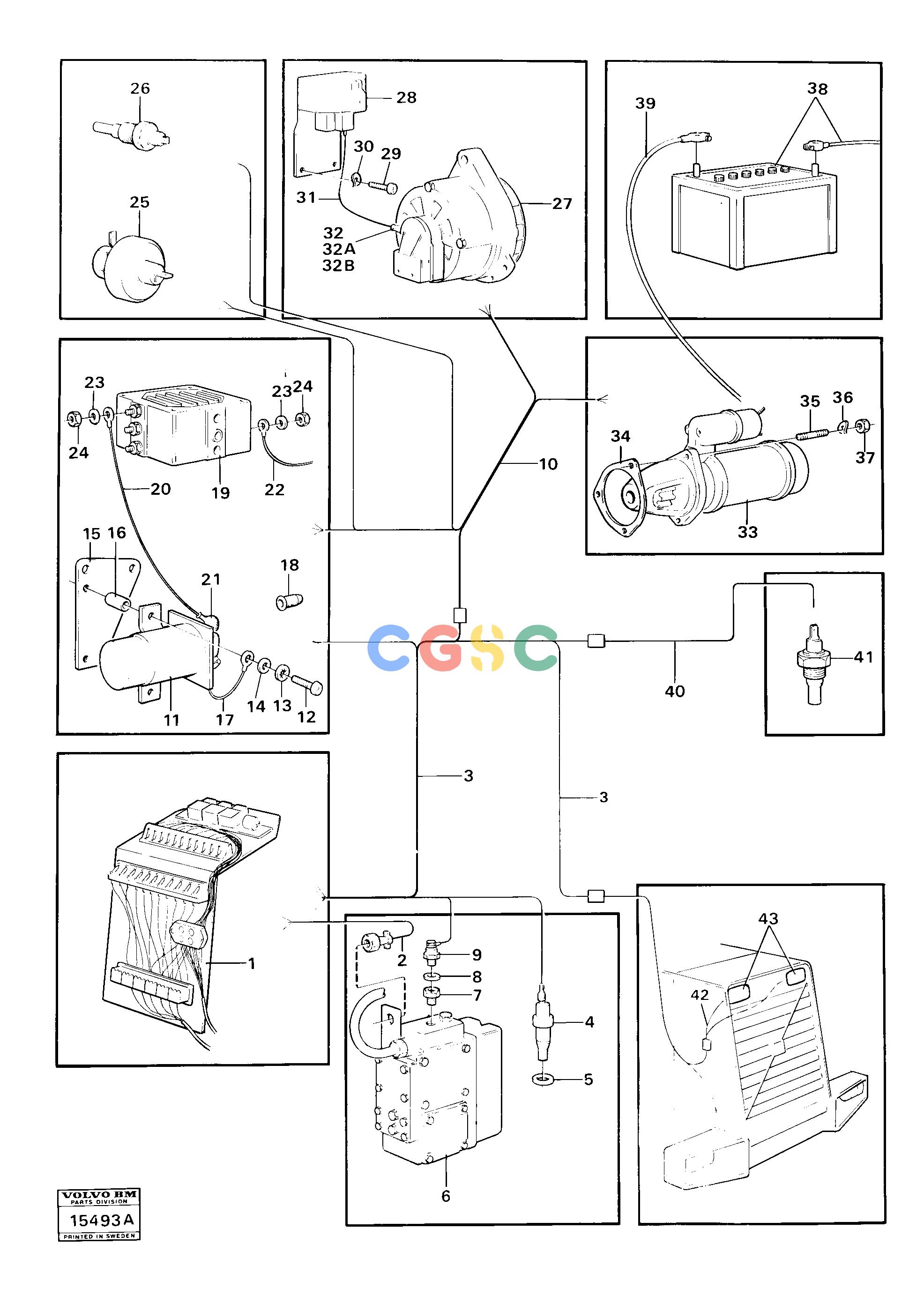

沃尔沃零件查询4400 Electric system, rear4400 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
920 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE13945653
|
[1] |
Plane gasket
|
|
| 6. |
|
[1] |
Gear selector valve
|
SEE GROUP 41
|
| 7. |
|
[1] |
Connection
|
SER NO - 3281
|
| |
|
|
None
|
ERS. AV 4803340
|
| 8. |
VOE13945653
|
[1] |
Plane gasket
|
|
| 9. |
VOE4785034
|
[0001] |
Contact
|
TM TILLV.NR-3281
|
| |
VOE4803340
|
[0001] |
Switch
|
TM SER NO 3282-
|
| 1. |
|
[0001] |
El Distr Unit
|
|
| 10. |
VOE4850392
|
[0001] |
Cable harness
|
SER NO - 5118
|
| |
VOE4854990
|
[0001] |
Cable harness
|
SER NO 5119 -
|
| 11. |
VOE1577376
|
[0001] |
Relay
|
|
| 12. |
VOE955243
|
[0002] |
Hexagon screw
|
|
| 13. |
VOE941905
|
[0002] |
Spring washer
|
|
| 14. |
VOE13940090
|
[0002] |
Washer
|
|
| 15. |
VOE465326
|
[0001] |
Bracket
|
|
| 16. |
VOE465327
|
[0001] |
Spacer sleeve
|
|
| 17. |
|
[0001] |
Cable
|
|
| 18. |
VOE7025971
|
[0001] |
Protection
|
|
| 19. |
|
[0001] |
Starter element
|
SEE GROUP 21
|
| 2. |
VOE4854455
|
[0001] |
Cable harness
|
|
| 20. |
|
[0001] |
Cable
|
|
| 21. |
VOE241308
|
[0001] |
Protecting cap
|
|
| 22. |
|
[0001] |
Cable
|
|
| 23. |
VOE942767
|
[0002] |
Toothed washer
|
|
| 24. |
VOE7017624
|
[0002] |
Hexagon nut
|
|
| 25. |
|
[0001] |
Pressure indicator
|
SEE GROUP 24
|
| 26. |
|
[0001] |
Pressure sensor
|
MO, SEE GROUP 21
|
| 27. |
|
[0001] |
Alternator
|
|
| 28. |
VOE4803292
|
[0001] |
Regulator
|
|
| |
|
|
None
|
SER NO - 4525
|
| 29. |
VOE955269
|
[0002] |
Hexagon screw
|
|
| 3. |
VOE4850402
|
[0001] |
Cable harness
|
SER NO - 5118
|
| 30. |
VOE13941906
|
[0002] |
Washer
|
SER NO - 4525
|
| |
VOE4854989
|
[0001] |
Cable harness
|
SER NO 5119 -
|
| 31. |
VOE4850254
|
[1] |
Cable harness
|
SER NO - 4525
|
| 32. |
VOE241308
|
[2] |
Protecting cap
|
|
| 32A. |
VOE13963104
|
[3] |
Lock nut
|
|
| |
|
|
None
|
M5, SER NO - 4525
|
| |
VOE4850692
|
[0001] |
Cable harness
|
PROD NO 33203
|
| 32B. |
VOE13963105
|
[1] |
Lock nut
|
|
| |
|
|
None
|
M6, SER NO - 4525
|
| |
|
|
Starter motor
|
MO28596 - 57352
|
| 33. |
VOE4785541
|
[1] |
Starter Motor
|
MO - 28595
|
| |
|
|
None
|
|
| |
VOE4774617
|
[1] |
Starter Motor
|
MO 28596 - 57352.
|
| |
|
|
None
|
|
| |
VOE4881097
|
[1] |
Starter motor
|
MO 57353-
|
| |
|
|
None
|
|
| 34. |
VOE11030013
|
[1] |
Gasket
|
|
| 35. |
VOE953486
|
[0003] |
Stud
|
|
| 36. |
VOE13942336
|
[0003] |
Spring washer
|
|
| 37. |
VOE13955827
|
[0003] |
Nut
|
|
| 38. |
|
[0002] |
Battery
|
|
| 39. |
VOE4949094
|
[0001] |
Battery cable
|
|
| 4. |
|
[1] |
Sensor
|
TM PROD NO 33200
|
| 40. |
VOE4850396
|
[0001] |
Cable harness
|
SER NO - 5118
|
| 41. |
|
[0001] |
Temp.sensor
|
MO, SEE GROUP 21
|
| 42. |
VOE4850401
|
[0001] |
Cable
|
SER NO -3743
|
| |
VOE4780337
|
[1] |
Sensor
|
TM PROD NO 33203
|
| |
VOE4761643
|
[0001] |
Cable
|
SER NO 3744 - 5118
|
| |
VOE4927103
|
[0001] |
Cable
|
SER NO 5119 -
|
| 43. |
|
[0002] |
Head lamp
|
|
