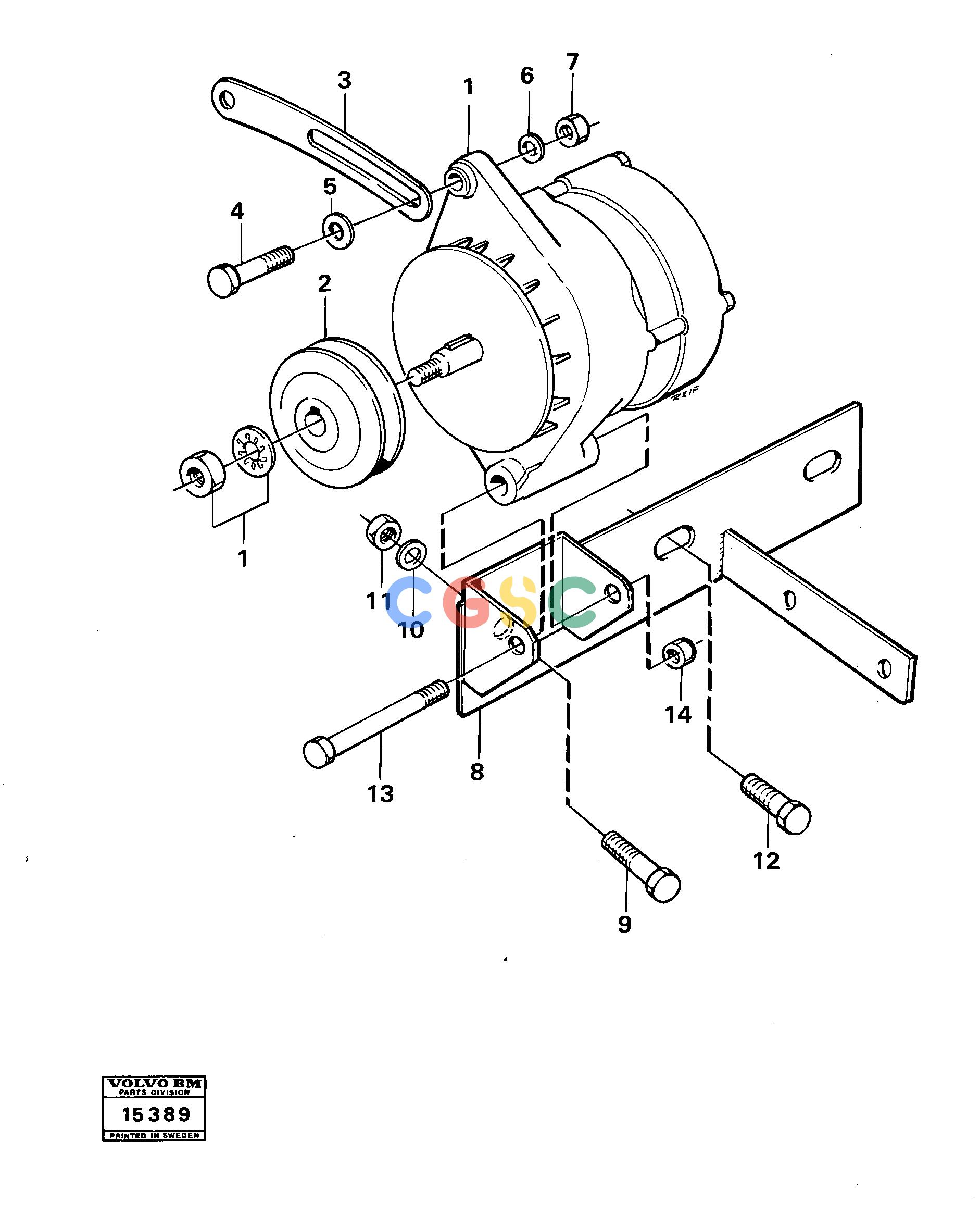

沃尔沃零件查询4400 Alternator with assembling details4400 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
628 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE930840
|
[0001] |
Plain washer
|
|
| 6. |
VOE13941907
|
[0001] |
Washer
|
|
| 7. |
VOE955782
|
[0001] |
Hexagon nut
|
SER NO - 4525
|
| |
VOE13955894
|
[0001] |
Washer
|
SER NO 4526 -
|
| |
VOE466735
|
[0001] |
Brace
|
SER NO 4526 -
|
| 8. |
VOE4974375
|
[0001] |
Alternator anchorage
|
|
| 9. |
VOE13970971
|
[0001] |
Hexagon screw
|
|
| 1. |
VOE1502372
|
[0001] |
Alternator
|
SER NO - 4525
|
| 10. |
VOE940280
|
[0001] |
Spring washer
|
|
| 11. |
VOE13971072
|
[0001] |
Hexagon nut
|
|
| 12. |
|
[0002] |
Bolt
|
SEE GROUP 71
|
| 13. |
VOE13955554
|
[0001] |
Screw
|
|
| |
|
|
None
|
SER NO - 5118
|
| |
VOE4942015
|
[0001] |
Pin
|
SER NO 5119 -
|
| 14. |
VOE950355
|
[0001] |
Lock nut
|
SER NO - 5118
|
| |
VOE4803545
|
[0001] |
Alternator
|
SER NO 4526 - 6914
|
| |
VOE13971083
|
[0002] |
Lock nut
|
|
| |
|
|
None
|
SER NO 5119 -
|
| |
|
|
None
|
ERS AV 4803774
|
| |
VOE955896
|
[0002] |
Plain washer
|
SER NO 5119 -
|
| |
VOE4803774
|
[0001] |
Alternator
|
SER NO 6915 -
|
| 2. |
VOE7420433
|
[0001] |
Pulley
|
SER NO - 5118
|
| |
VOE822573
|
[0001] |
Pulley
|
SER NO 5119 -
|
| 3. |
VOE4774490
|
[0001] |
Tensioner
|
|
| 4. |
VOE60111880
|
[0001] |
Hexagon screw
|
|
| |
|
|
None
|
SER NO - 4525
|
| |
VOE958299
|
[0001] |
None
|
SER NO 4526 -
|
