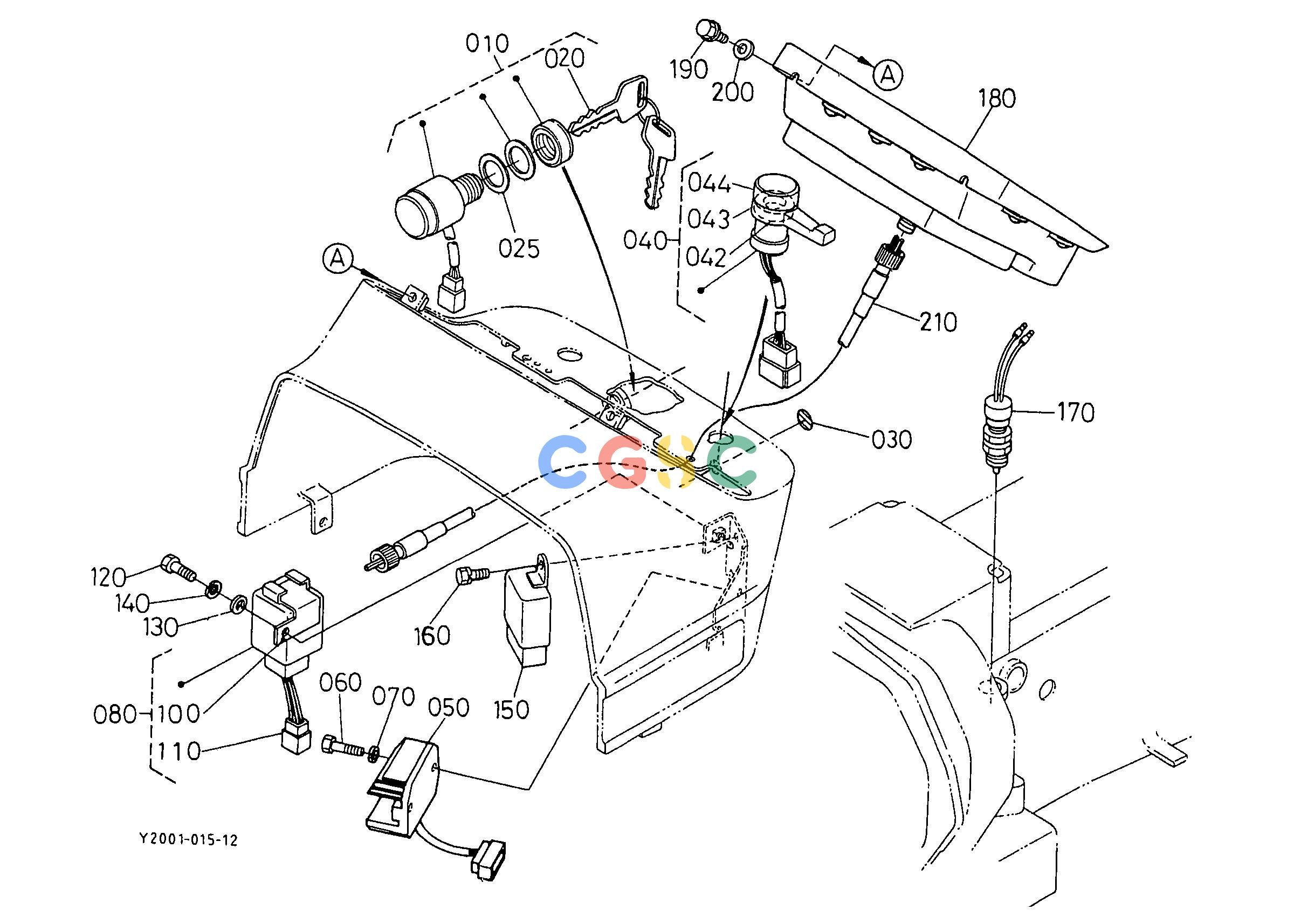

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 010. | 3741059110 | [1] | ASSY SWITCH STARTER | 0.7040(lbs); 0.320 |
| 020. | 3741055150 | [2] | KEY STARTER | 0.0550(lbs); 0.025 |
| 025. | 6641655170 | [1] | WASHER | ; =>50522 0.0022(lbs); 0.001 |
| 030. | 3511032420 | [1] | PLUG | ; <=63039 0.0044(lbs); 0.002 |
| 030. | 6641647170 | [1] | LABEL COVER | ; =>63040 0.0022(lbs); 0.001 |
| 040. | 6715655210 | [1] | SWITCH COMBINATION | 0.2090(lbs); 0.095 |
| 042. | 6715655230 | [1] | NUT RING | 0.0066(lbs); 0.003 |
| 043. | 6715655240 | [1] | LEVER FLASHER | 0.0088(lbs); 0.004 |
| 044. | 6715655250 | [1] | KNOB LIGHT | 0.0088(lbs); 0.004 |
| 050. | 1926764600 | [1] | COMP.REGULATOR | ; <=61424 0.0000(lbs); 0.000 |
| 050. | 1926764602 | [1] | ASSY REGULATOR | ; =>61425 0.4136(lbs); 0.188 |
| 050. | RP20153710 | [1] | ASSY REGULATOR | ; =>63695 0.4004(lbs); 0.182 |
| 060. | 0105350632 | [2] | BOLT | 0.0110(lbs); 0.005 |
| 070. | 0451250060 | [2] | WASHER SPRING | 0.0022(lbs); 0.001 |
| 080. | 3243033700 | [1] | ASSY HAZARD UNIT | 0.2090(lbs); 0.095 |
| 100. | 3243094270 | [1] | BRACKET HAZARD UNIT | 0.0330(lbs); 0.015 |
| 110. | 3243094280 | [1] | HARNESS HAZARD UNIT | 0.0440(lbs); 0.020 |
| 120. | 0105350620 | [1] | BOLT | 0.0132(lbs); 0.006 |
| 130. | 0401350060 | [1] | WASHER PLAIN | 0.0022(lbs); 0.001 |
| 140. | 0451250060 | [1] | WASHER SPRING | 0.0022(lbs); 0.001 |
| 150. | 3135131410 | [1] | TIMER | ; <=63239 0.0000(lbs); 0.000 |
| 150. | T007031410 | [1] | TIMER | ; =>63240 0.1430(lbs); 0.065 |
| 160. | 0102350610 | [2] | BOLT | 0.0110(lbs); 0.005 |
| 170. | 6641655810 | [1] | ASSY SWITCH SAFETY | 0.2420(lbs); 0.110 |
| 180. | 6641655120 | [1] | ASSY PANEL GAUGE | ; <=61573 0.0000(lbs); 0.000 |
| 180. | 6641655122 | [1] | ASSY PANEL GAUGE | ; =>61574 3.8280(lbs); 1.740 |
| 190. | 3135118790 | [4] | BOLT FLANGE | 0.0110(lbs); 0.005 |
| 200. | 3135118860 | [4] | WASHER | ; =>61388 0.0044(lbs); 0.002 |
| 210. | 6641655310 | [1] | CABLE HOUR METER | 0.5896(lbs); 0.268 |
