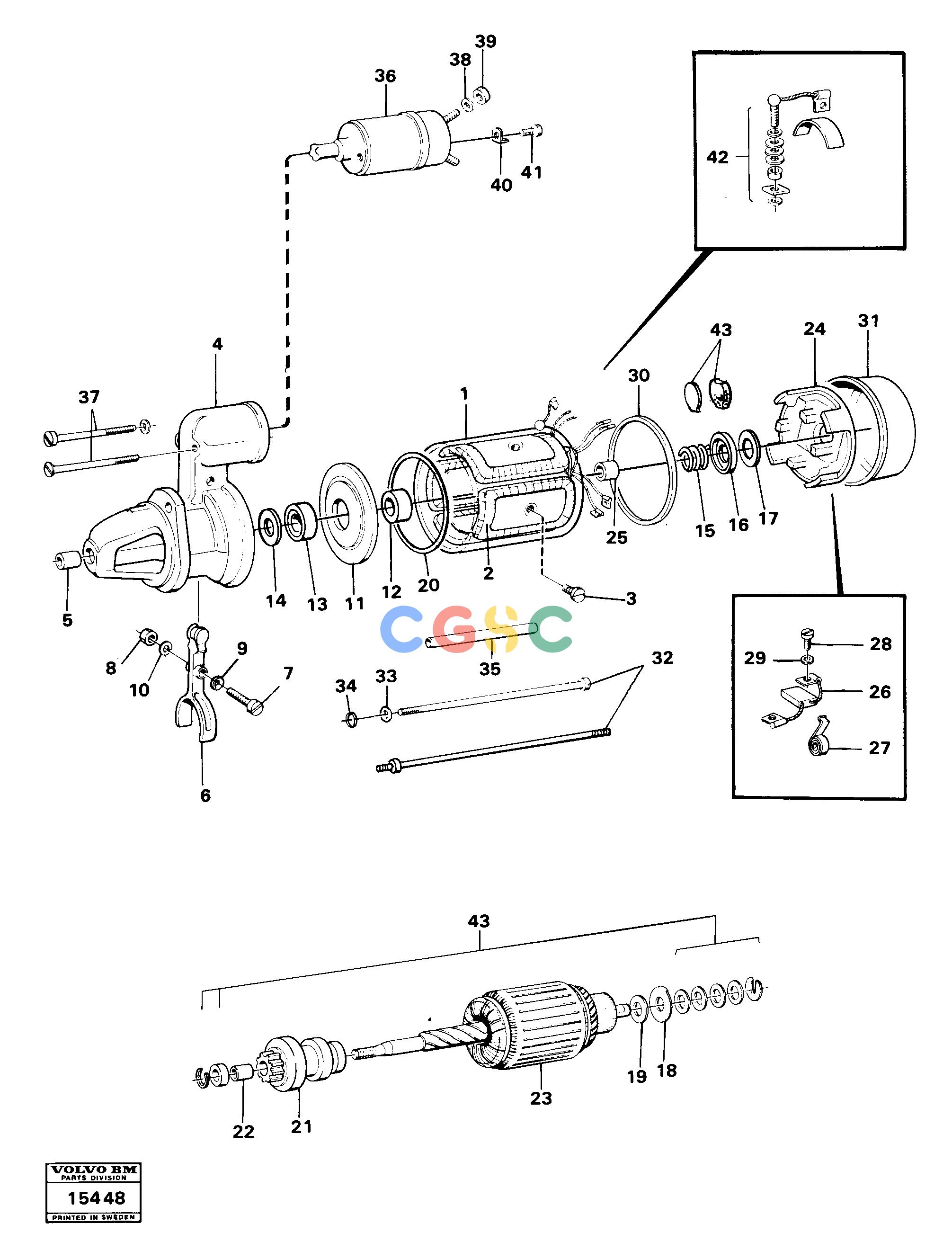

沃尔沃零件查询4400 Starter motor mo-285954400 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
580 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE6645039
|
[0001] |
Bearing shield
|
|
| 5. |
VOE6645040
|
[0001] |
Bushing
|
|
| 6. |
VOE6645020
|
[0001] |
Arm
|
|
| 7. |
VOE11700731
|
[0001] |
Screw
|
|
| 8. |
VOE6645042
|
[0001] |
Nut
|
|
| |
VOE4785541
|
[0001] |
Starter Motor
|
ERS AV 4880691
|
| 9. |
VOE6645043
|
[0001] |
Gasket
|
|
| 10. |
VOE947620
|
[0001] |
Gasket
|
|
| 11. |
VOE6645044
|
[0001] |
Center Bearing
|
|
| 12. |
VOE7241276
|
[0001] |
Bushing
|
|
| 13. |
VOE6640123
|
[0001] |
Gasket
|
|
| |
|
|
None
|
|
| 14. |
VOE6644950
|
[0001] |
Washer
|
|
| 15. |
VOE6645046
|
[0001] |
Spring
|
|
| 16. |
VOE6643402
|
[0001] |
Brake Disc
|
|
| 17. |
VOE7048067
|
[0001] |
Washer
|
|
| 18. |
VOE6646794
|
[0001] |
Washer
|
|
| 1. |
|
[0001] |
Housing
|
|
| 19. |
VOE244216
|
[0001] |
Washer
|
|
| 20. |
VOE7241876
|
[0001] |
Sealing ring
|
|
| 21. |
VOE6210464
|
[0001] |
Drive Gear
|
|
| 22. |
VOE244217
|
[0001] |
Bushing
|
|
| 23. |
VOE6645048
|
[0001] |
Anchor
|
|
| 24. |
VOE6212774
|
[0001] |
Commutator Brg
|
|
| 25. |
VOE7241281
|
[0001] |
Bushing
|
|
| 26. |
VOE6644951
|
[0001] |
Brush set
|
|
| 27. |
VOE241283
|
[0004] |
Spring
|
|
| 28. |
VOE244218
|
[0004] |
Screw
|
|
| 2. |
VOE6648084
|
[0001] |
Field winding
|
|
| 29. |
VOE941905
|
[0004] |
Spring washer
|
|
| |
|
|
None
|
SPOLE 1-4/COIL 1-4
|
| 30. |
VOE11992541
|
[0001] |
Gasket
|
|
| 31. |
VOE7241284
|
[0001] |
Casing
|
|
| 32. |
VOE6210649
|
[0002] |
Screw
|
|
| 33. |
VOE955892
|
[0002] |
Plain washer
|
|
| 34. |
VOE7241874
|
[0001] |
Sealing ring
|
|
| 35. |
VOE870845
|
[0001] |
Insulation
|
|
| 36. |
VOE11992387
|
[0001] |
Magnet
|
|
| |
VOE6648163
|
[0001] |
Bellows
|
|
| 37. |
VOE6212461
|
[0003] |
Screw
|
|
| 3. |
VOE969537
|
[0004] |
Six point socket screw
|
|
| 38. |
VOE941908
|
[0002] |
Spring washer
|
|
| 39. |
VOE955791
|
[0002] |
Hexagon nut
|
|
| 40. |
VOE858689
|
[0001] |
Plate
|
|
| 41. |
VOE956058
|
[0001] |
Cross recessed screw
|
|
| 42. |
VOE6645051
|
[0001] |
Connector kit
|
|
| 43. |
VOE829707
|
[0001] |
Repair kit
|
|
