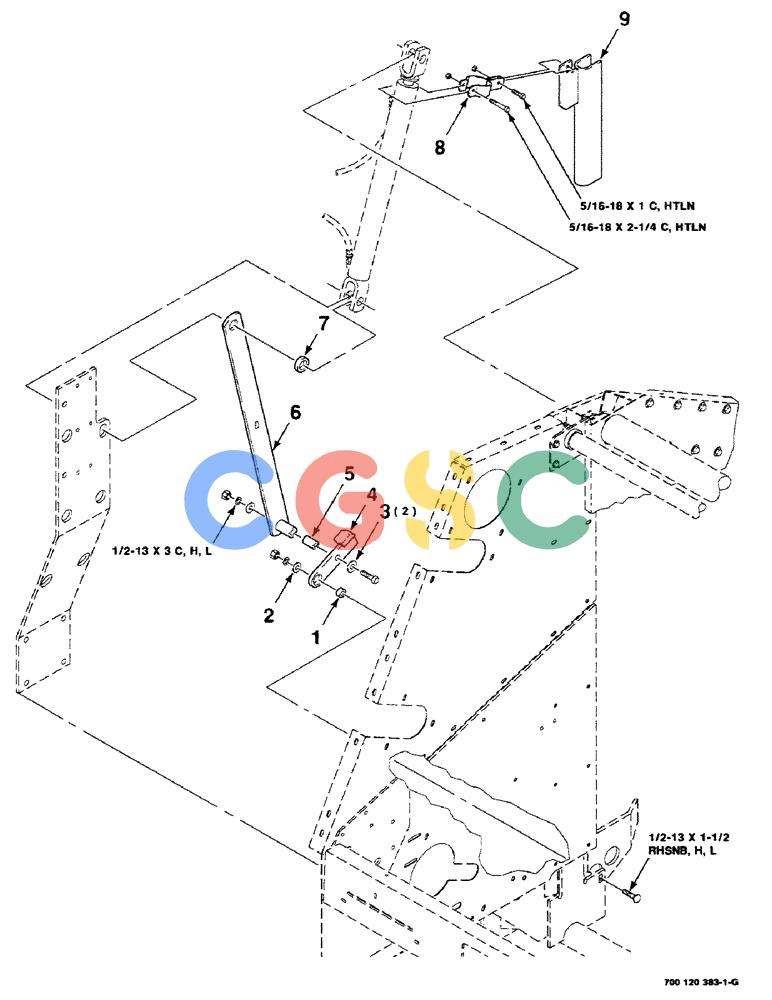

凯斯零件查询(8430) - CASE IH ROUND BALER (1/88-12/00) (5-04) - TAILGATE LATCH AND SAFETY STOP ASSEMBLY (RIGHT) Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
548 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
6287155
|
[1] |
SPACER
|
HFI
|
| 2. |
700709605
|
[1] |
WASHER,1/2"
|
CAS
1/2 WIDE PLAIN WASHER Superseded by part number: 80700
|
| 3. |
705541
|
[2] |
WASHER,0.53" ID x 1.06" OD x 0.14" Thk
|
CAS
1/2 HARDENED PLAIN WASHER
|
| 4. |
700120755
|
[1] |
LATCH
|
HFI
|
| 5. |
6865851
|
[1] |
SPACER
|
HFI
|
| 6. |
700120627
|
[1] |
STRAP
|
HFI
LINK - strap
|
| 7. |
700120629
|
[1] |
SPACER
|
HFI
|
| 8. |
700101583
|
[1] |
CLAMP
|
HFI
- mounting, stop
|
| 9. |
700120647
|
[1] |
STOP
|
HFI
- safety, hydraulic
|
| . . |
703579
|
[1] |
BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd
|
CAS
5/16-18 x 1 C
|
| . . |
7771744
|
[1] |
BOLT,Hex, 5/16" - 18 x 2 1/4", Gr 5
|
CAS
5/16-18 x 2-1/4 C Superseded by part number: 86505972
|
| . . |
7702038
|
[1] |
SCREW,Hex, 1/2" - 13 x 3", Gr 5
|
CAS
1/2-13 x 3 Superseded by part number: 87339
|
| . . |
7700156
|
[1] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5
|
CAS
1/2-13 x 1-1/2 RHSNB Superseded by part number: 280420
|
| . . |
704031
|
[2] |
NUT
|
NNA
1/2-13 H Superseded by part number: 425-108, 425-108, NLS
|
| . . |
231-4115
|
[2] |
NUT,5/16"-18, GB
|
CAS
5/16-18 HTLN Superseded by part number: 280736
|
| . . |
80679
|
[2] |
LOCK WASHER,1/20.507 CST ZND
|
NH
WASHER, LOCK, 1/2"
|
