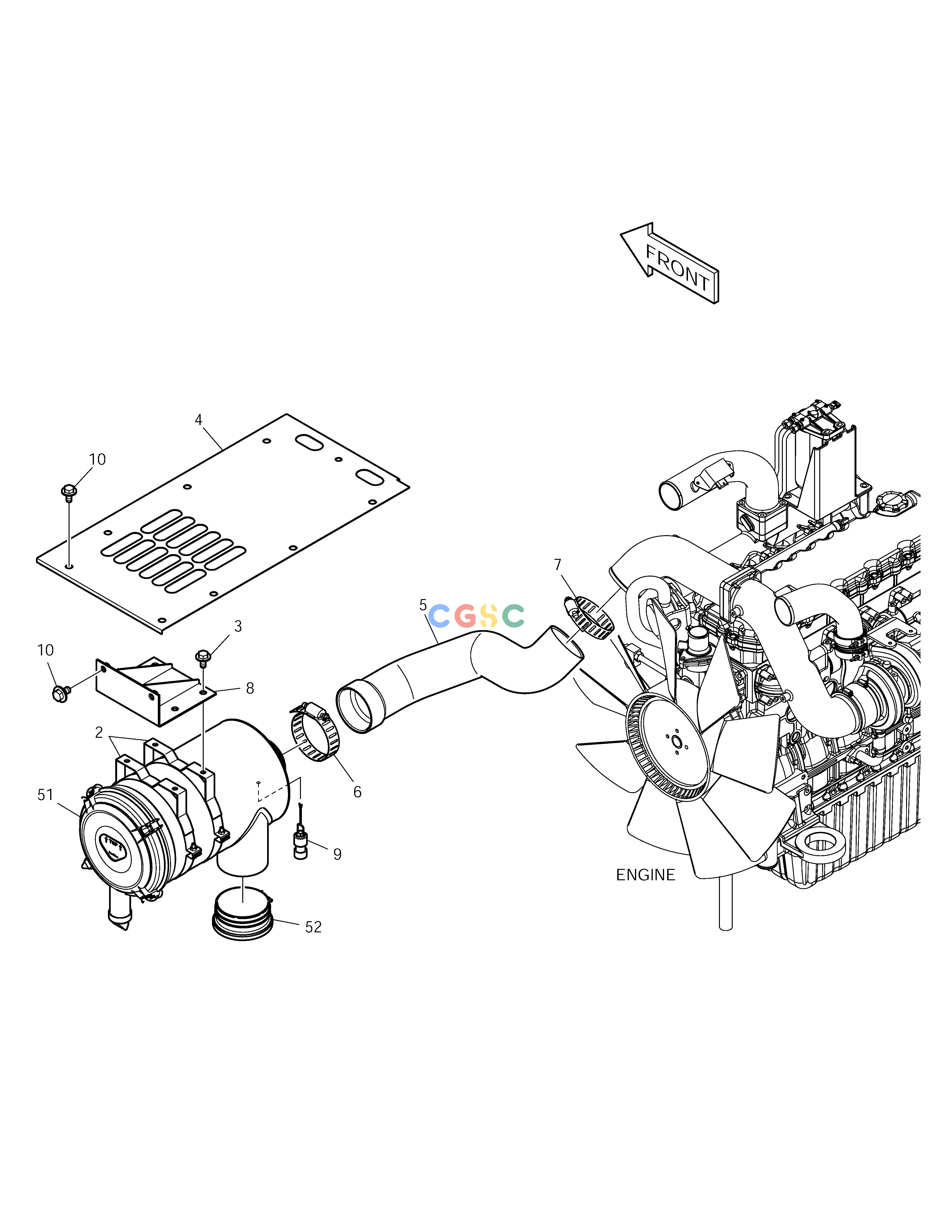

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | K1017627C | [-] | AIR CLEANER ASS'Y | |
| 10. | DS0025015 | [11] | BOLT | |
| 2. | 124-00298A | [2] | BAND | |
| 3. | DS0025017 | [4] | BOLT | |
| 4. | K1017628A | [1] | COVER;AIR CLEANER | |
| 5. | K1008507 | [1] | HOSE;AIR | |
| 51. | 204-00067 | [1] | AIR CLEANER | |
| 52. | K1003618 | [1] | CAP;RAIN | |
| 6. | S8510143 | [1] | CLAMP | |
| 7. | S8510118 | [1] | CLAMP | |
| 8. | K1017691A | [1] | BRACKET;AIR CLEANER | |
| 9. | 170-00004 | [1] | INDICATOR |
