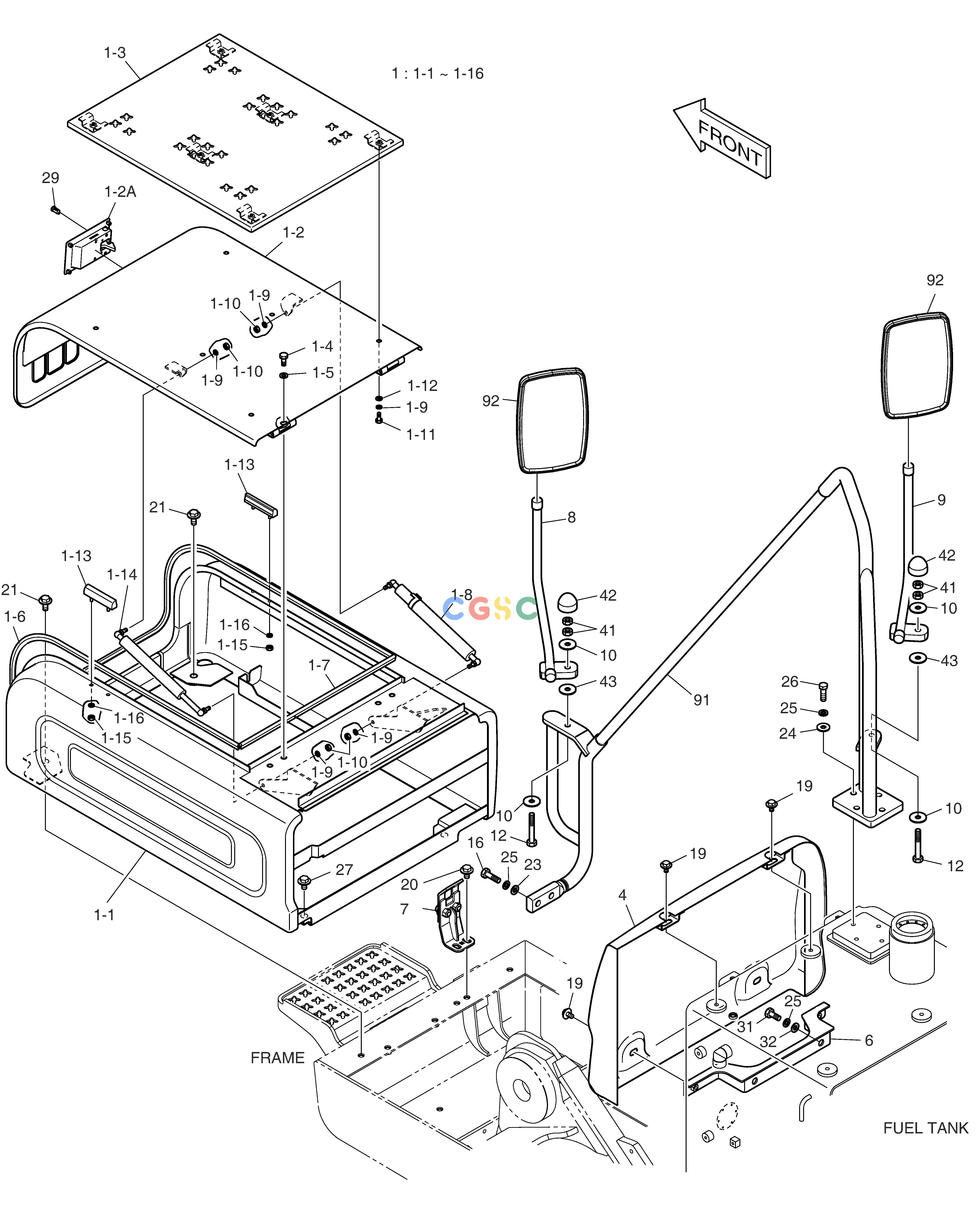

斗山零件查询BATTERY COVER DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
604 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1018020M
|
[-] |
|
|
| 1. |
K1000144G
|
[1] |
BATTERY COVER ASS'Y
|
K1000144H
|
| 1. |
K1000144H
|
[1] |
BATTERY COVER ASS'Y
|
|
| 1-1. |
NA00394
|
[1] |
COVER
|
|
| 1-10. |
S4012533
|
[4] |
NUT
|
|
| 1-11. |
S0508866
|
[6] |
BOLT
|
|
| 1-12. |
2114-1058D29
|
[6] |
WASHER
|
|
| 1-13. |
K1005305A
|
[2] |
. STOPPER;RUBBER
|
|
| 1-14. |
DS1001061
|
[1] |
. CYLINDER;GAS
|
|
| 1-15. |
S4012333
|
[4] |
NUT
|
|
| 1-16. |
S5102303
|
[4] |
. WASHER
|
|
| 1-2. |
K1000146C
|
[1] |
COVER
|
|
| 1-2A. |
125-00071B
|
[1] |
LATCH;FRONT
|
|
| 1-3. |
K1000147
|
[1] |
. COVER
|
|
| 1-4. |
S0512066
|
[4] |
. BOLT
|
|
| 1-5. |
S5010613
|
[4] |
WASHER
|
|
| 1-6. |
2160-1217
|
[1] |
RUBBER
|
|
| 1-7. |
2160-1217
|
[1] |
RUBBER
|
|
| 1-8. |
K1001968
|
[1] |
CYLINDER;GAS
|
|
| 1-9. |
S5102503
|
[10] |
. WASHER
|
|
| 10. |
2114-1058D68
|
[4] |
WASHER
|
|
| 12. |
S0561066
|
[2] |
BOLT
|
|
| 16. |
S0560666
|
[2] |
BOLT
|
|
| 19. |
DS0025014
|
[4] |
BOLT
|
|
| 20. |
DS0025015
|
[2] |
BOLT
|
|
| 21. |
DS0025027
|
[2] |
BOLT
|
|
| 23. |
2114-1058D33
|
[2] |
WASHER
|
|
| 24. |
S5010713
|
[4] |
WASHER;PLAIN
|
|
| 25. |
S5102703
|
[8] |
WASHER
|
|
| 26. |
S0560566
|
[4] |
BOLT
|
|
| 27. |
DS0025022
|
[2] |
BOLT
|
|
| 29. |
K1004630
|
[1] |
CYLINDER;KEY
|
|
| 31. |
S0515166
|
[2] |
BOLT
|
|
| 32. |
2114-1154
|
[2] |
WASHER
|
|
| 4. |
621-03025A
|
[1] |
COVER;TANK
|
|
| 41. |
S4012733
|
[4] |
NUT
|
|
| 42. |
161-00580
|
[2] |
CAP,RUBBER
|
|
| 43. |
2114-1058D54
|
[2] |
WASHER
|
|
| 6. |
195-02706C
|
[1] |
BRACKET
|
|
| 7. |
195-02624C
|
[1] |
BRACKET
|
|
| 8. |
K1038110A
|
[1] |
STAY,MIRROR
|
|
| 9. |
K1038107A
|
[1] |
STAY,MIRROR
|
|
| 91. |
K1024264A
|
[1] |
STAY
|
|
| 92. |
903-00068
|
[2] |
MIRROR
|
|
