神钢零件查询(6D14) - MITSUBISHI DIESEL ENGINE - K904C, K907B, K907C & YS750-2 (1/77-12/06) (08-002) - CYLINDER HEAD REPAIR KIT Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
820 次

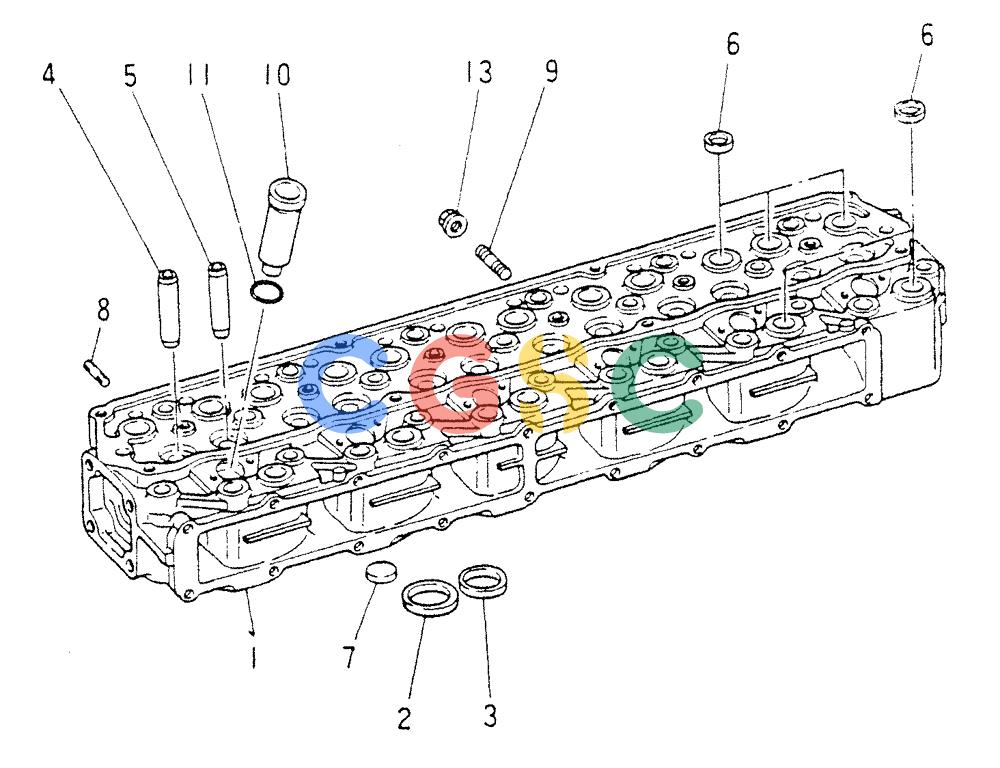

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-13. | VAME999223 | [1] | HEAD CYLINDER HEAD ASSY 6D14 (FOR M0) | HEAD CYLINDER HEAD ASSY 6D14 (FOR M0) |
| 1-13. | VAME999112 | [1] | CYLINDER HEAD ASSY 6D14T (FOR M1) | |
| 1-13. | VAME999222 | [1] | HEAD CYLINDER HEAD ASSY 6D15 (FOR M2) | HEAD CYLINDER HEAD ASSY 6D15 (FOR M2) |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONHEAD,CYL (FOR M0) (ME031992) |
| 2. | VAME031931 | [6] | INSERT | KOBINSERT,VALVE SEAT INLET (FOR M0 & M1) |
| 2. | VAME031929 | [6] | STD INLET VALVE | KOBSTD ENGINE INLET VALVE INSERT,VALVE SEAT INLET (FOR M2) Superseded by part number: VAME071002 |
| 3. | VAME031935 | [6] | INLET MANIFOLD | KOBINSERT,VALVE SEAT EXH (FOR M0 & M1) |
| 3. | VAME031933 | [6] | VALVE | KOBINSERT,VALVE SEAT EXH (FOR M2) Superseded by part number: VAME031934 |
| 4. | VAME031886 | [6] | GUIDE | KOBGUIDE,VALVE INLET |
| 5. | VAME031888 | [6] | GUIDE | KOBGUIDE,VALVE EXH |
| 6. | VAMS666137 | [18] | CAP | KOBCAP,SEALING 25 |
| 7. | VAMS666136 | [5] | PLUG | KOBCAP,SEALING 22 |
| 8. | VAMH002111 | [1] | STUD | KOBSTUD 8X20 |
| 9. | VAMH002160 | [12] | STUD STUD 10X33 | STUD STUD 10X33 |
| 10. | VAME030855 | [1] | TUBE | KOBTUBE,NOZZLE, Start Year: 01-MAR-83 |
| 10. | VAME031501 | [1] | TUBE TUBE,NOZZLE, Years: -01-FEB-83 | TUBE TUBE,NOZZLE, Years: -01-FEB-83 |
| 11. | VAMH035157 | [1] | O-RING | KOBO-RING,TUBE Superseded by part number: 132299A1 |
| 13. | VAMH004054 | [1] | NUT | KOBFLANGE 10 Superseded by part number: 134868A1 |
