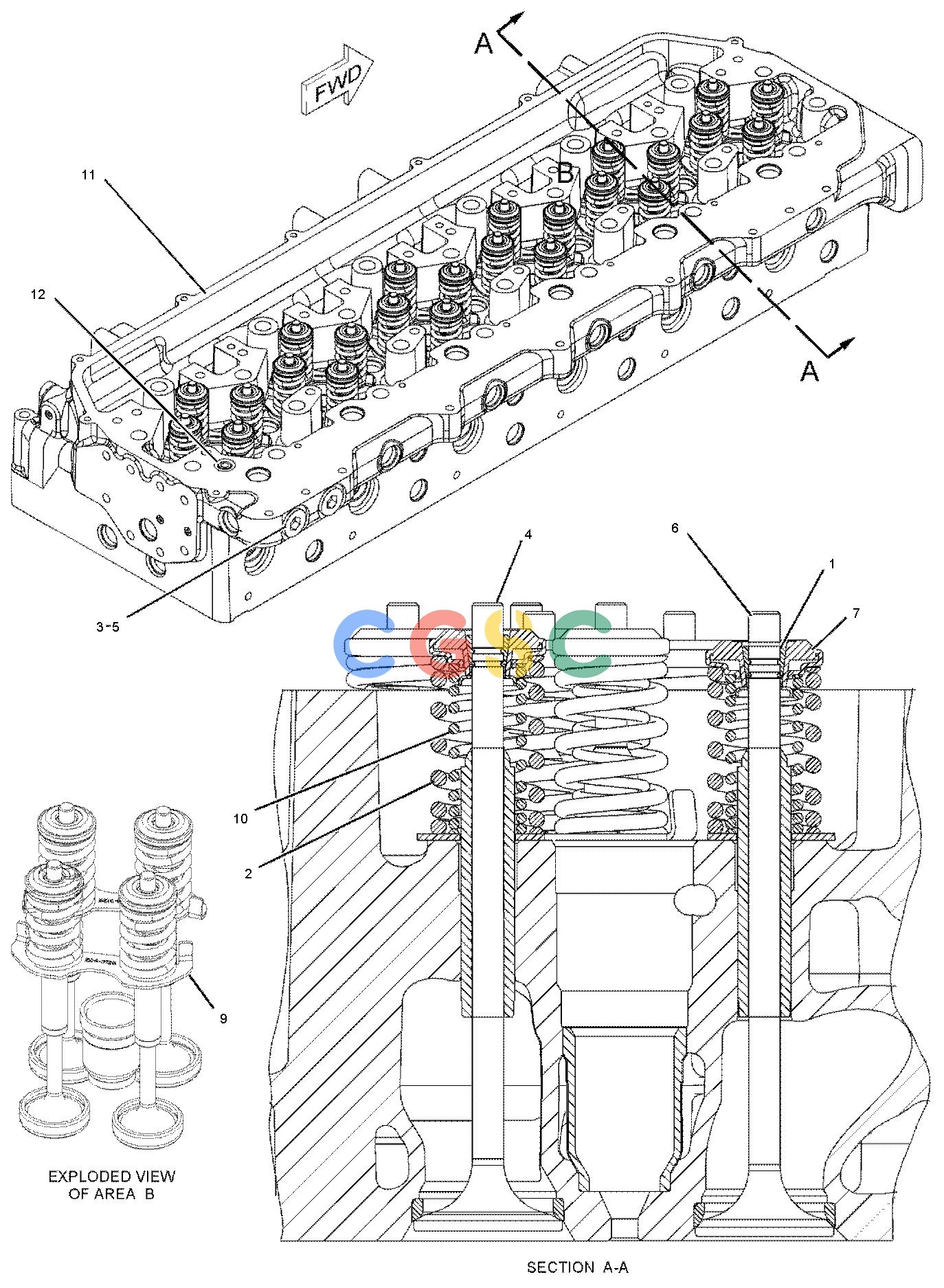

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 2A-4429 | [48] | LOCK-RETAINER | |
| 2. | 214-0586 | [24] | SPRING | |
| 3. | 6V-5063 | [2] | SEAL-O-RING | |
| 4. | 224-3028 | [12] | VALVE-INLET | |
| 5. | 9S-8008 | [2] | PLUG(1-1/16-12-THD) | |
| 6. | 224-3030 | [12] | VALVE-EXHAUST | |
| 7. | 7E-7977 | [24] | ROTOCOIL AS | |
| (EACH INCLUDES) | ||||
| 7E-7978 | [1] | SHIELD | ||
| 9. | 224-3125 | [12] | BASE | |
| 10. | 224-4441 | [24] | SPRING(VALVE) | |
| 11. | 245-4031Y | [1] | CYLINDER HEAD AS | |
| 12. | 5P-5598 | [1] | SEAL-O-RING | |
| Y | SEPARATE ILLUSTRATION | |||
