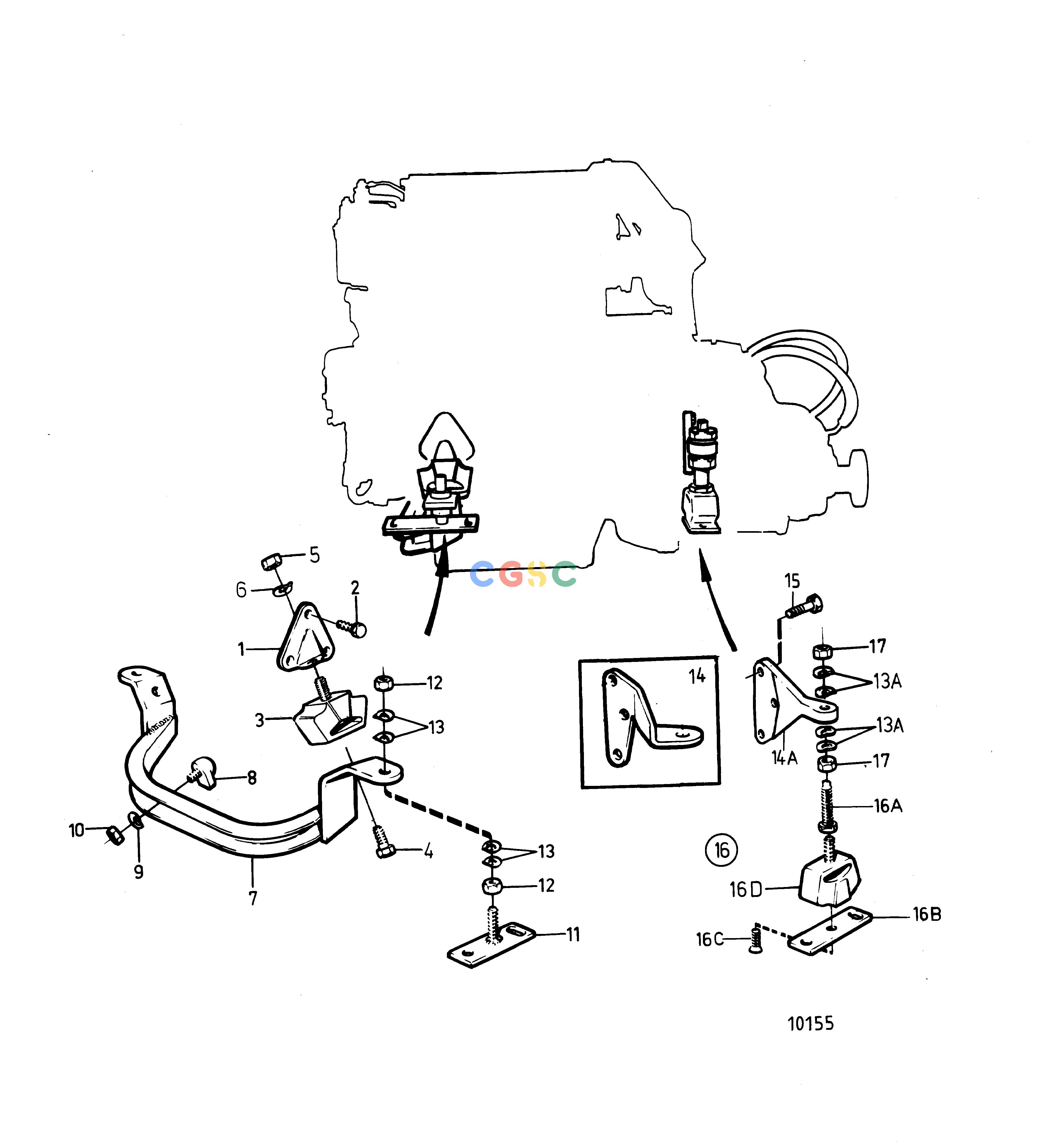

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TEngineEngine Suspension PRM (Fly Wheel Casing 858196): BEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
622 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
840701
|
[2] |
Engine anchorage
|
|
| 2. |
970945
|
[6] |
Hexagon screw
|
|
| 3. |
840845
|
[2] |
Rubber element
|
|
| 4. |
959236
|
[2] |
Hex. socket screw
|
|
| 5. |
971071
|
[2] |
Hexagon nut
|
|
| 6. |
940109
|
[2] |
Toothed washer
|
|
| 7. |
859898
|
[1] |
Engine bracket
|
|
| 8. |
840829
|
[2] |
Buffer
|
|
| 9. |
941906
|
[2] |
Spring washer
|
|
| 10. |
955781
|
[2] |
Hexagon nut
|
|
| 11. |
3581105
|
[2] |
Adjusting plate
|
|
| 12. |
955821
|
[4] |
Hexagon nut
|
|
| 13. |
829892
|
[8] |
Lock washer
|
|
| 13A. |
829893
|
[8] |
Lock washer
|
|
| 14. |
858591
|
[1] |
Engine anchorage
|
P, Repl by 860344
|
| 14. |
858802
|
[1] |
Engine anchorage
|
S.B, Repl by 860883
|
| 14A. |
860344
|
[1] |
Engine bracket
|
P
|
| 15. |
970948
|
[5] |
Hexagon screw
|
|
| 16. |
858452
|
[2] |
Rubber cushion
|
|
| 16A. |
838264
|
[1] |
Adjusting bolt
|
|
| 16B. |
858423
|
[1] |
Attaching plate
|
|
| 16C. |
|
|
|
|
| 16D. |
|
|
|
|
| 17. |
955806
|
[4] |
Hexagon nut
|
|
