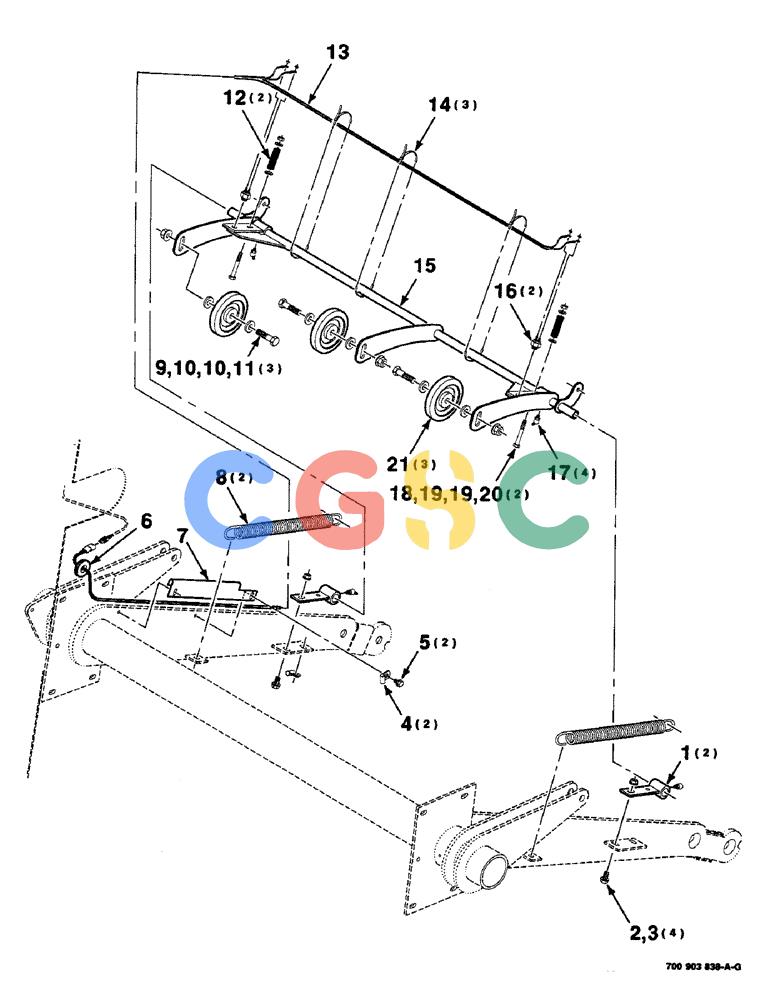

凯斯零件查询(8435) - CASE IH SILAGE SPECIAL ROUND BALER (1/97-12/00) (9-14) - BALE SHAPE MONITOR KIT, HK50895 BALE SHAPE MONITOR KIT COMPLETE, TO BE ORDERED THRU WHOLEGOODS ONLY Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
244 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
HK50895
|
[1] |
BALE SHAPE MONITOR KIT
|
|
| 1. |
700132176
|
[2] |
SUPPORT
|
HFI
WA
|
| 2. |
121-226
|
[4] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 3. |
231-5146
|
[4] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 4. |
515-2395
|
[2] |
CLAMP,3/8", Insul, 3/8" Bolt
|
CAS
Superseded by part number: 86572009
|
| 5. |
256873
|
[2] |
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
|
NH
|
| 6. |
7827983
|
[1] |
GROMMET
|
CAS
|
| 7. |
700132519
|
[1] |
COVER
|
HFI
- wire
|
| 8. |
700710130
|
[2] |
SPRING
|
CAS
- extension
|
| 9. |
413-832
|
[3] |
BOLT,Hex, 1/2" - 13 x 2", Gr 5
|
CAS
Superseded by part number: 9706716
|
| 10. |
705541
|
[6] |
WASHER,0.53" ID x 1.06" OD x 0.14" Thk
|
CAS
1/2 HARDENED PLAIN WASHER
|
| 11. |
231-5348
|
[3] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2-13 HFTLN GR/G Superseded by part number: 86521610
|
| 12. |
7058266
|
[2] |
SPRING
|
IH
- compression
|
| 13. |
700716007
|
[1] |
HARNESS
|
CAS
- wire
|
| 14. |
869707C1
|
[3] |
STRAP,368.3mm L
|
IH
TIE - cable Superseded by part number: 529070
|
| 15. |
700132168
|
[1] |
SUPPORT
|
HFI
WA
|
| 16. |
8025637
|
[2] |
SWITCH
|
L
|
| 17. |
219-90
|
[4] |
LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF
|
CAS
1/4-28 X 45 DEGREE ZERK Superseded by part number: 87569
|
| 18. |
703769
|
[2] |
SCREW
|
CAS
5/16-18 X 2 3/4 C
|
| 19. |
495-61034
|
[4] |
WASHER,0.34" ID x 0.88" OD x 0.06" Thk
|
CAS
5/16 WIDE PLAIN WASHER
|
| 20. |
230-4115
|
[2] |
LOCK NUT,5/16"-18, GA
|
CAS
5/16-18 HTLN GR/B Superseded by part number: 230-4145
|
| 21. |
111767C2
|
[3] |
BALL BEARING,1.468" ID x 4.25" OD x 0.875"
|
IH
IDLER - rubber tire
|
