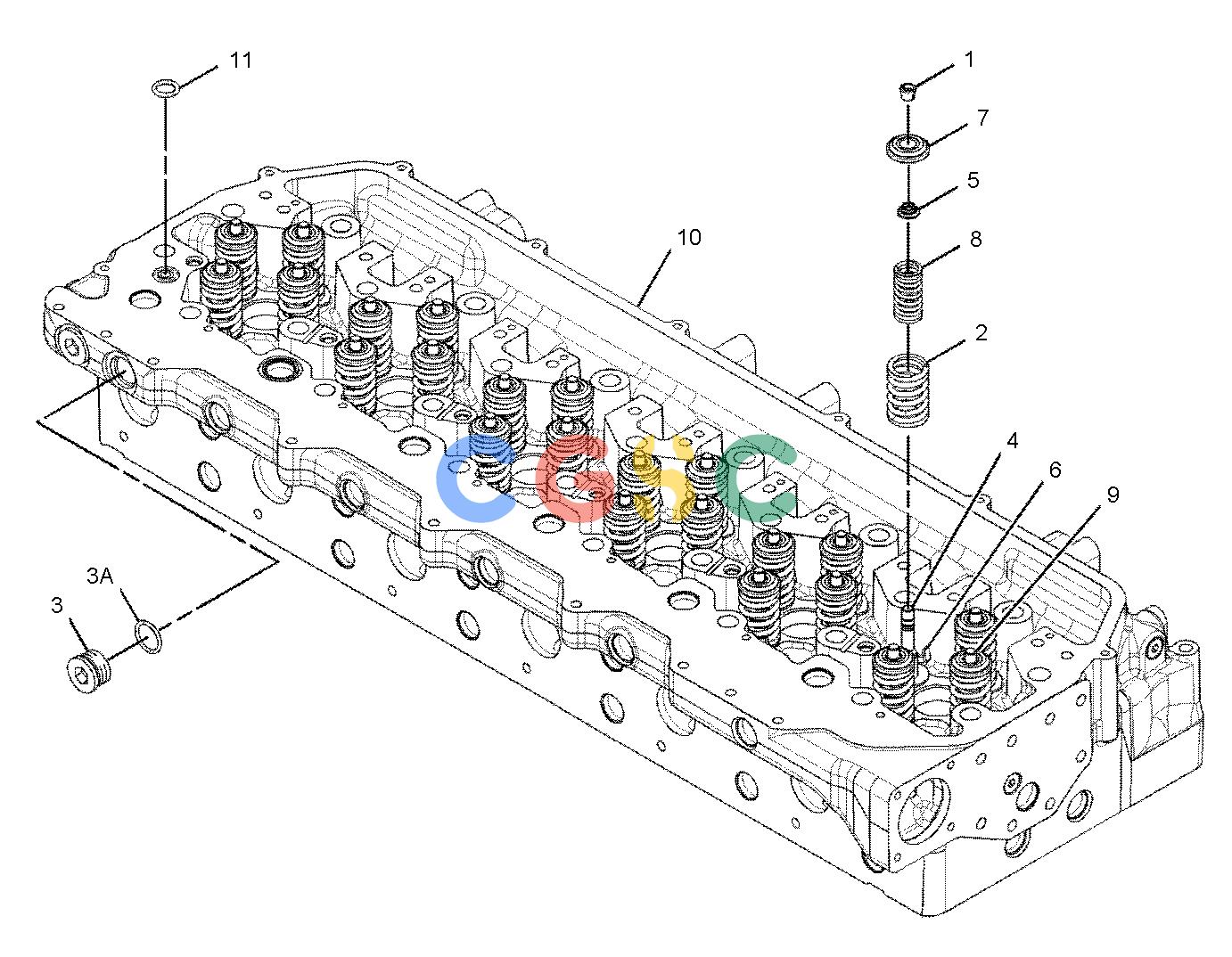

卡特零件查询（725） 305-0617: CYLINDER HEAD GP
广数供应链运营团队, 14 02月, 2025，浏览：
229 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2A-4429 | [48] | LOCK-RETAINER | |
| 2. | 332-2152 | [24] | SPRING-VALVE | |
| 3. | 353-5140 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| 3A. | 6V-5063 | [1] | SEAL-O-RING | |
| | 9S-8008 | [1] | PLUG(1-1/16-12-THD) | |
| 4. | 248-1467 | [12] | VALVE-EXHAUST | |
| 5. | 163-2478 | [24] | SEAL-VALVE STEM | |
| 6. | 224-3125 | [12] | BASE | |
| 7. | 7C-8581 | [24] | ROTOCOIL AS | |
| 8. | 224-4441 | [24] | SPRING(VALVE) | |
| 9. | 252-7802 | [12] | VALVE-INLET | |
| 10. | 345-3752Y | [1] | CYLINDER HEAD AS | |
| 11. | 5P-5598 | [1] | SEAL-O-RING | |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
