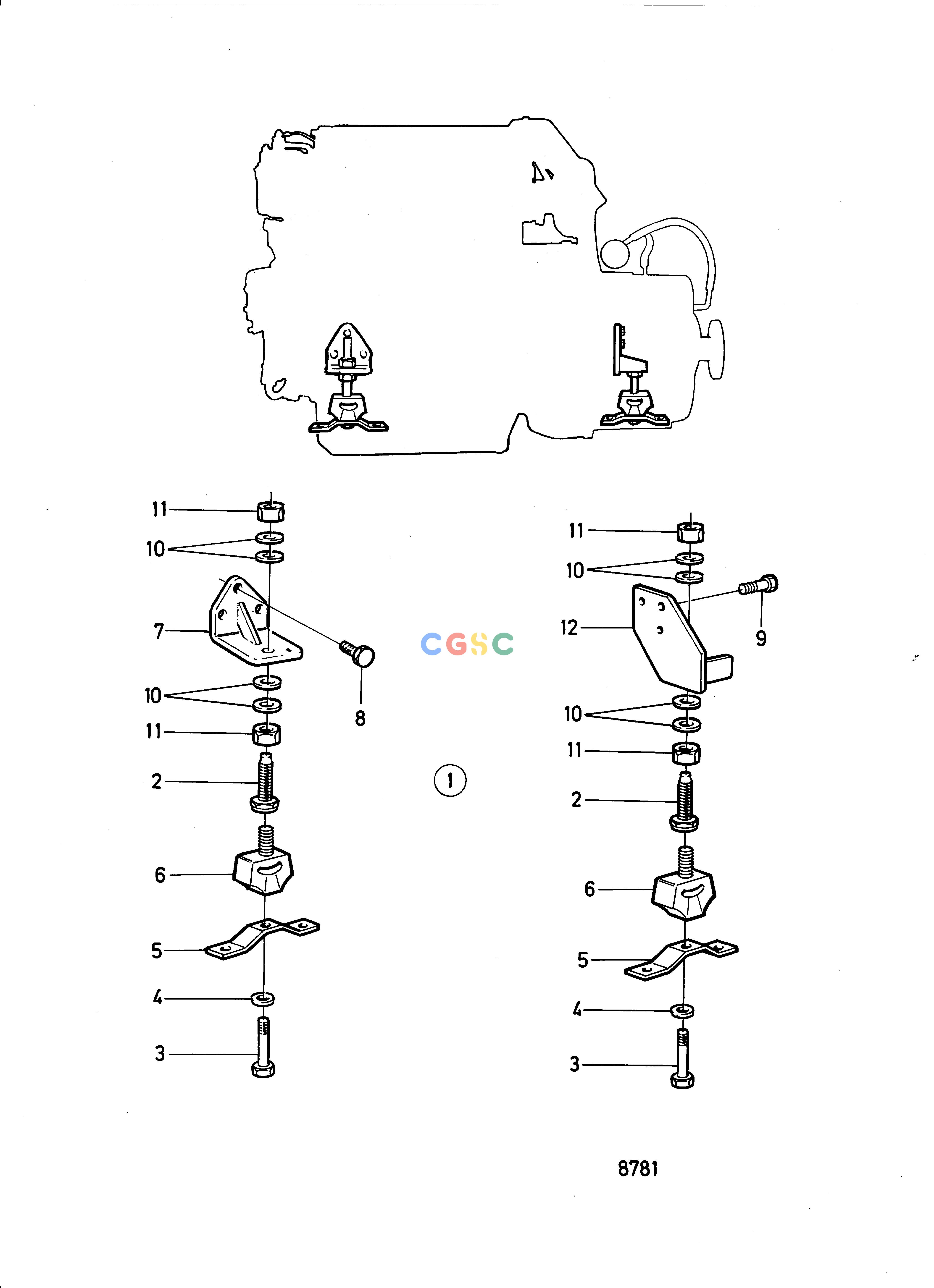

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TEngineEngine Suspension PRM (Fly Wheel Casing 858363)EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
554 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
858452
|
[4] |
Rubber cushion
|
|
| 2. |
838264
|
[4] |
Adjusting bolt
|
|
| 3. |
945808
|
[4] |
Hexagon screw
|
M10X25mm
|
| 4. |
976945
|
[4] |
Washer
|
|
| 5. |
858423
|
[4] |
Attaching plate
|
|
| 6. |
858455
|
[4] |
Rubber element
|
|
| 7. |
858379
|
[2] |
Engine bracket
|
|
| 8. |
970947
|
[6] |
Hexagon screw
|
(955317)
|
| 9. |
946817
|
[6] |
Flange screw
|
|
| 10. |
829893
|
[16] |
Lock washer
|
|
| 11. |
955806
|
[8] |
Hexagon nut
|
|
| 12. |
858776
|
[1] |
Engine bracket
|
S.B
|
| 12. |
858775
|
[1] |
Engine bracket
|
P
|
