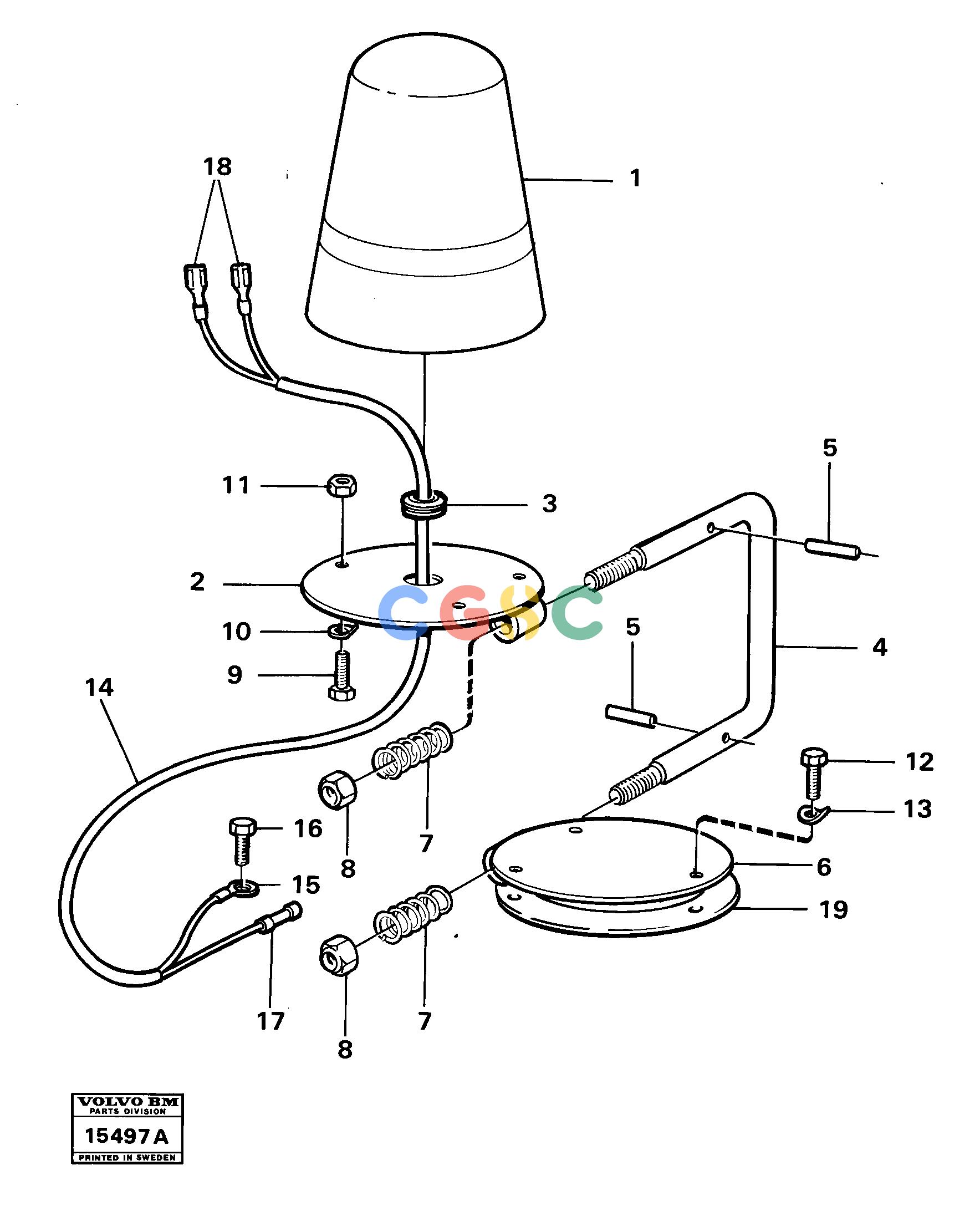

沃尔沃零件查询4400 Revolving warning light 98194,996604400 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
743 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
|
[0001] |
Stay
|
|
| 5. |
VOE951978
|
[0002] |
Spring pin
|
|
| 6. |
|
[0001] |
Attachment
|
|
| 7. |
VOE4935756
|
[0002] |
Spring
|
|
| 8. |
VOE963110
|
[0002] |
Lock nut
|
|
| 1. |
VOE4803305
|
[0001] |
Rotating beacon
|
|
| 9. |
VOE950033
|
[0003] |
Cross recessed screw
|
|
| |
|
|
None
|
|
| 10. |
VOE13941906
|
[0003] |
Washer
|
|
| 11. |
VOE940145
|
[0003] |
Hexagon nut
|
|
| 12. |
VOE950033
|
[0003] |
Cross recessed screw
|
|
| 13. |
VOE13941906
|
[0003] |
Washer
|
|
| 14. |
VOE4850135
|
[0001] |
Cable harness
|
|
| 15. |
VOE956925
|
[0001] |
Cable terminal
|
|
| 16. |
VOE955120
|
[0001] |
Cross recessed screw
|
|
| 17. |
VOE956956
|
[0001] |
Splice
|
|
| |
VOE4763789
|
[0001] |
Anchorage
|
|
| 18. |
VOE940341
|
[0002] |
Cable terminal
|
|
| 19. |
VOE4743671
|
[0001] |
Gasket
|
|
| 2. |
|
[0001] |
Attachment
|
|
| 3. |
VOE941267
|
[0001] |
Plug
|
|
