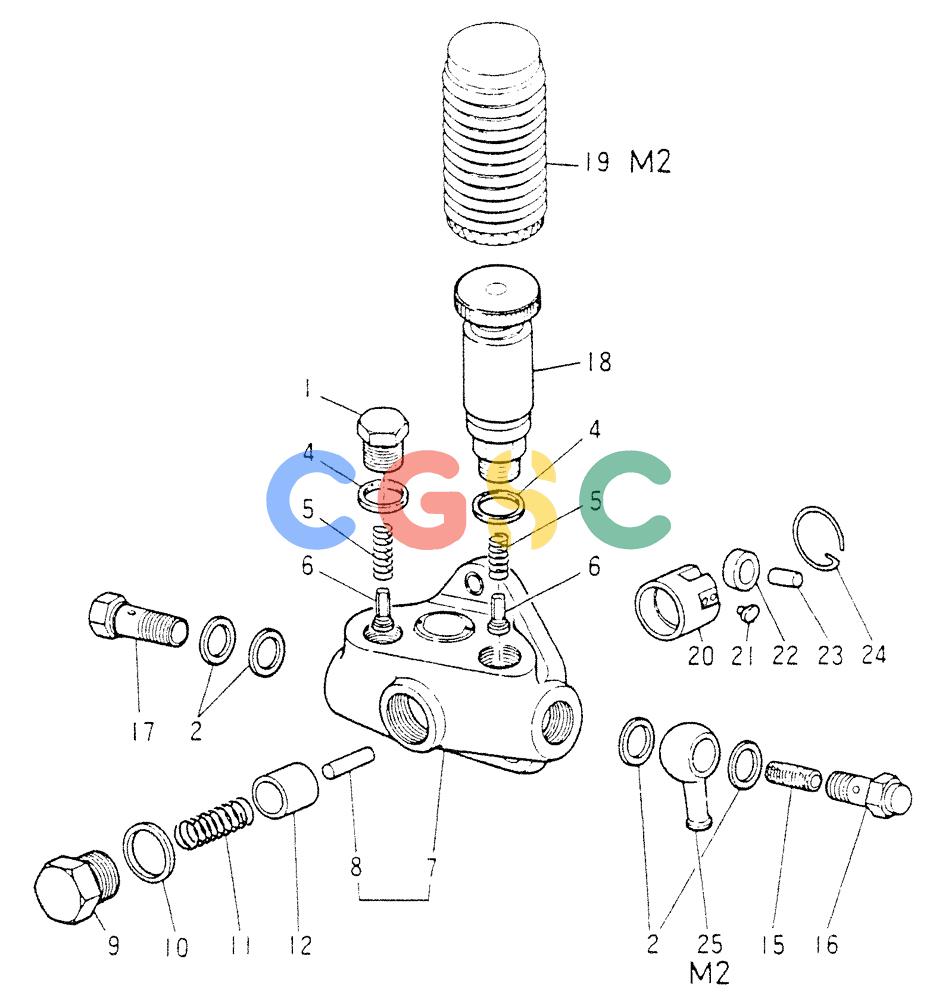

神钢零件查询(6D14) - MITSUBISHI DIESEL ENGINE - K904C, K907B, K907C & YS750-2 (1/77-12/06) (03-006) - FUEL FEED PUMP (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
454 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-24. | VAME038827 | [1] | PUMP | KOBFEED PUMP ASSY FUEL FEED PUMP ASSY (NO 0921001440) (FOR M0 ONLY) Superseded by part number: VAME035928 |
| 1-24. | VAME038826 | [1] | PUMP | KOBFUEL FEED PUMP FUEL FEED PUMP ASSY (NO 0921001391) (FOR M1 ONLY) Superseded by part number: VAME035928 |
| 1-25. | VA3186099020 | [1] | FUEL FEED PUMP ASSY (NO 0921000830) (FOR M2 ONLY) | |
| 1. | VA0921260010 | [1] | PLUG,CHAMBER | |
| 2. | VA0902220070 | [4] | WASHER | KOBWASHER,SEAL (FOR M0,M1 ONLY) Superseded by part number: VA0594601401 |
| 2. | VA0902220040 | [4] | WASHER, SEAL (FOR M2 ONLY) | |
| 4. | VA0921250010 | [2] | GASKET | KOBGASKET,PLUG |
| 5. | VA0921240010 | [2] | SPRING | KOBSPRING,CHECK/V |
| 6. | VA0921210011 | [2] | STD INLET VALVE | KOBSTD ENGINE INLET VALVE VALVE,CHECK |
| 7-8. | VA0921200171 | [1] | HOUSING SUB ASSY | |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONHOUSING |
| 8. | VA0921680010 | [1] | PUSH ROD BLUE | |
| 8. | VA0921680030 | [1] | PUSH ROD RED | |
| 8. | VA0921680040 | [1] | PUSH ROD YELLOW | |
| 8. | VA0921680050 | [1] | PUSH ROD GREEN | |
| 8. | VA0921680060 | [1] | PUSH ROD WHITE | |
| 8. | VA9216801370 | [1] | PUSH ROD BROWN | |
| 9. | VA0921840021 | [1] | PLUG,PISTON CHAMBER | |
| 10. | VA9490181240 | [1] | WASHER WASHER | WASHER WASHER |
| 11. | VA0921820020 | [1] | SPRING,PISTON (FOR M0,M2 ONLY) | |
| 11. | VA0921820040 | [1] | SPRING,PISTON (FOR M1 ONLY) | |
| 12. | VA0921710010 | [1] | MANIFOLD PISTON BLUE | MANIFOLD PISTON BLUE |
| 12. | VA0921710020 | [1] | PISTION RED | |
| 12. | VA0921710030 | [1] | PISTION YELLOW | |
| 12. | VA0921710040 | [1] | PISTION GREEN | |
| 12. | VA0921710050 | [1] | PISTION WHITE | |
| 15. | VA0922200040 | [1] | ELEMENT | KOBFILTER,FUEL |
| 16. | VA0922230070 | [1] | SCREW | KOBSCREW |
| 17. | VA9491800310 | [1] | JACK SCREW | KOBSCREW |
| 18. | VA0921300190 | [1] | PUMP,PRIMING (FOR M0 ONLY) | |
| 18. | VA0921300170 | [1] | PUMP PRIMIN PUMP,PRIMING (FOR M1 ONLY) | PUMP PRIMIN PUMP,PRIMING (FOR M1 ONLY) |
| 18. | VA0921300050 | [1] | PRIMING PUMP PUMP,PRIMING (FOR M2 ONLY) | PRIMING PUMP PUMP,PRIMING (FOR M2 ONLY) |
| 19. | VA0900610011 | [1] | COVER | KOBCOVER,PRIMING PUMP (FOR M2 ONLY) |
| 20. | VA0921740030 | [1] | TAPPET | |
| 21. | VA0921790050 | [2] | BLOCK,SLIDING | |
| 22. | VA0921760010 | [1] | ROLLER,TAPPET | |
| 23. | VA0921780010 | [1] | PIN,ROLLER | |
| 24. | VA9490720940 | [1] | RING,SNAP | |
| 25. | VA9491810160 | [1] | NIPPLE,SWIVELING D=8 (FOR M2 ONLY) | |
