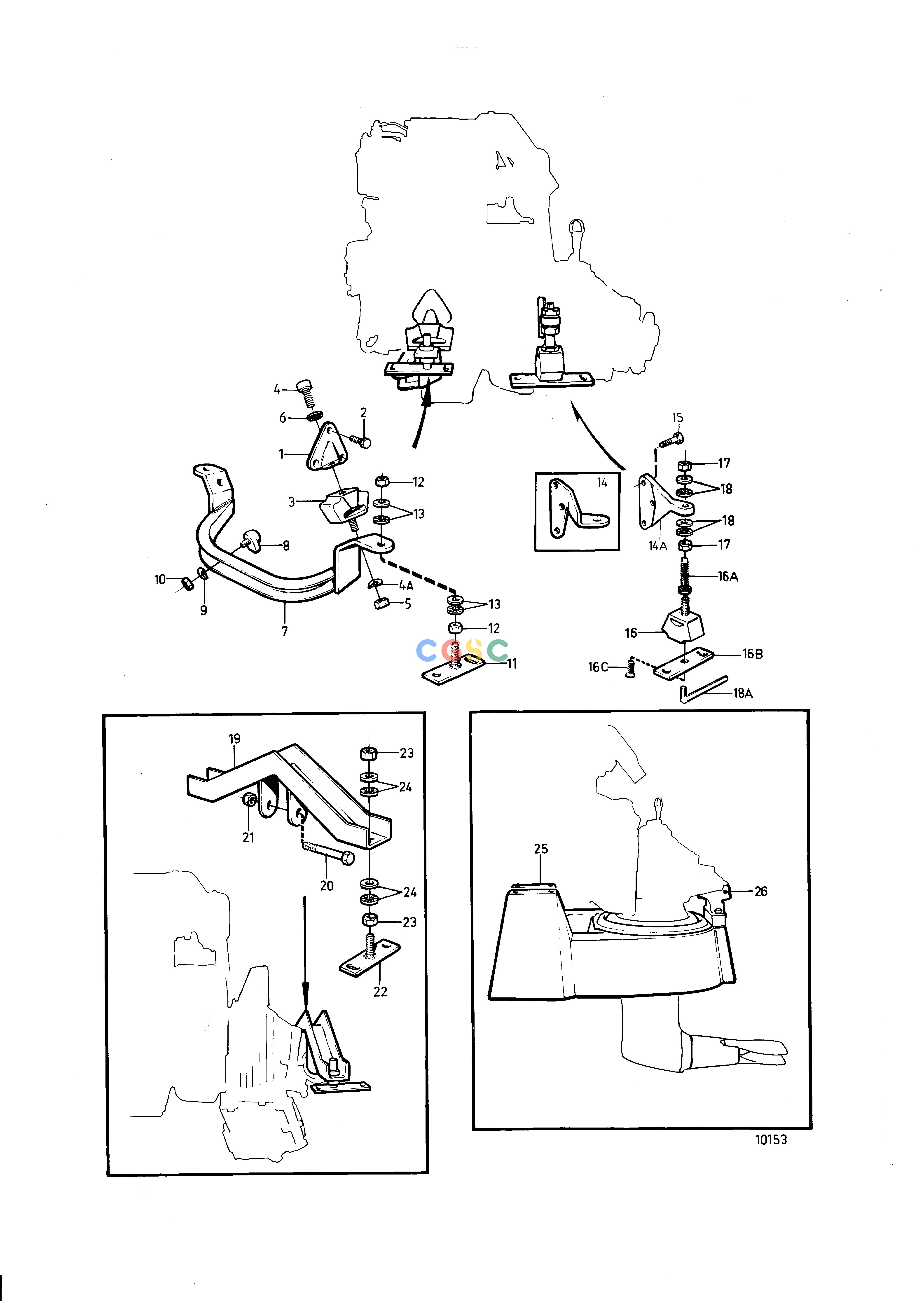

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TEngineEngine Suspension: BEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
1008 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
840701
|
[2] |
Engine anchorage
|
|
| 2. |
970945
|
[6] |
Hexagon screw
|
(955315)
|
| 3. |
838262
|
[2] |
Rubber element
|
|
| 4. |
959236
|
[2] |
Hex. socket screw
|
L=20mm
|
| 4A. |
941908
|
[2] |
Spring washer
|
|
| 5. |
971071
|
[2] |
Hexagon nut
|
(955783)
|
| 6. |
940109
|
[2] |
Toothed washer
|
|
| 7. |
859898
|
[1] |
Engine bracket
|
(840804)
|
| 8. |
840829
|
[2] |
Buffer
|
|
| 9. |
941906
|
[2] |
Spring washer
|
|
| 10. |
955781
|
[2] |
Hexagon nut
|
|
| 11. |
3581105
|
[2] |
Adjusting plate
|
|
| 12. |
955821
|
[4] |
Hexagon nut
|
|
| 13. |
829892
|
[8] |
Lock washer
|
|
| 14. |
840421
|
[2] |
Engine anchorage
|
Replaced by engine bracket 858591 and 858592 plus 6 PCS screw 955320, SN-19215
|
| 14. |
858591
|
[1] |
Engine anchorage
|
S.B SN19216-
|
| 14. |
858592
|
[1] |
Engine anchorage
|
P SN19216-
|
| 14. |
860344
|
[1] |
Engine bracket
|
S.B
|
| 14. |
860343
|
[1] |
Engine bracket
|
P
|
| 15. |
970948
|
[6] |
Hexagon screw
|
For 840421
|
| 15. |
965185
|
[6] |
Flange screw
|
For 858591-858592
|
| 16. |
840845
|
[2] |
Rubber element
|
|
| 16. |
838264
|
[2] |
Adjusting bolt
|
|
| 16B. |
838263
|
[2] |
Attaching plate
|
|
| 16C. |
949149
|
[2] |
Hex. socket screw
|
|
| 17. |
955806
|
[4] |
Hexagon nut
|
|
| 18. |
829893
|
[8] |
Lock washer
|
|
| 18A. |
914003
|
[1] |
Allen key
|
|
| 19. |
840861
|
[1] |
Member
|
|
| 20. |
955395
|
[1] |
Hexagon screw
|
|
| 21. |
955786
|
[1] |
Hexagon nut
|
|
| 22. |
3581105
|
[2] |
Adjusting plate
|
|
| 23. |
955821
|
[4] |
Hexagon nut
|
|
| 24. |
829892
|
[8] |
Lock washer
|
|
