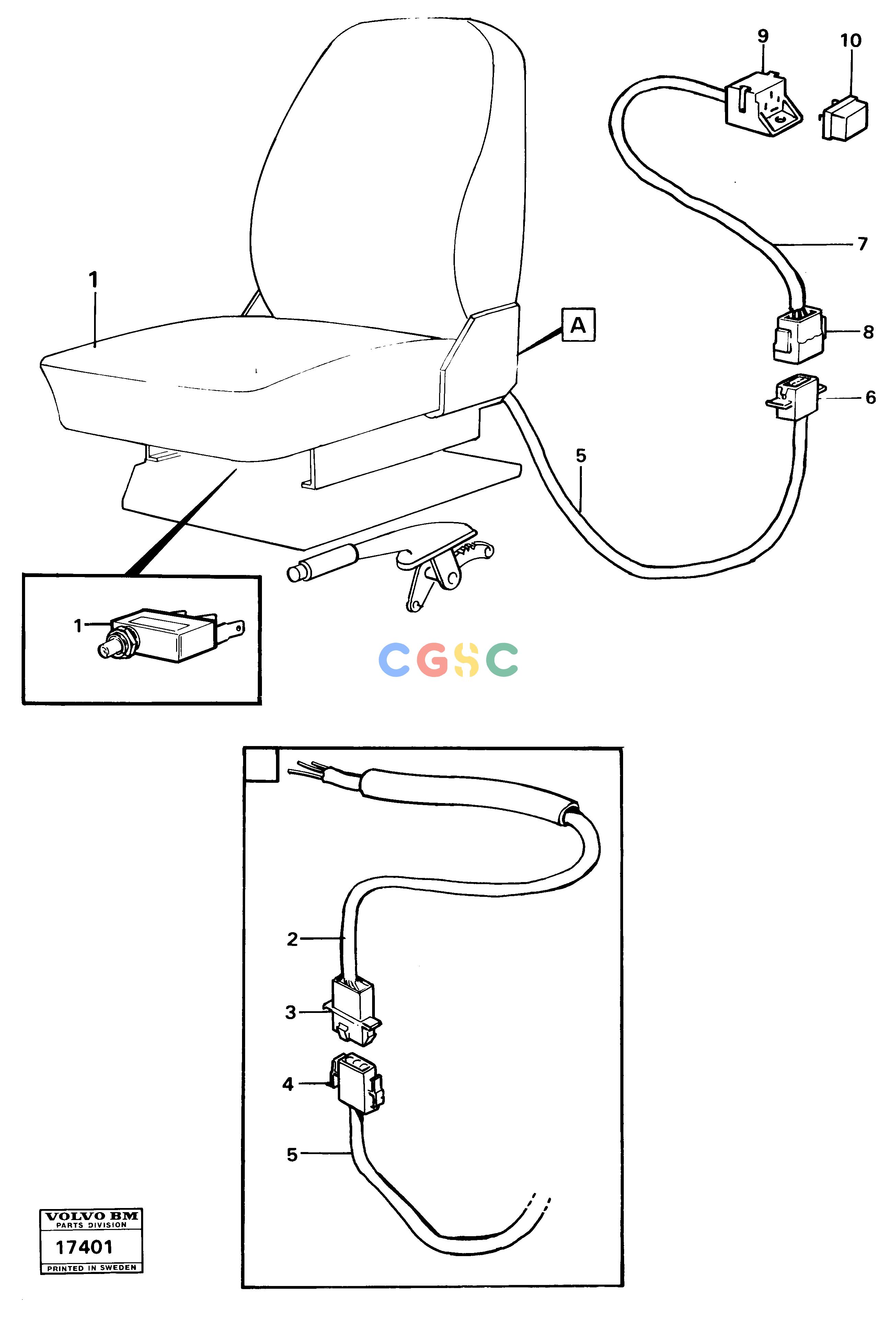

沃尔沃零件查询4400 Safety parts detals signal for parking brake 99715,90059440099715-90059VOE99715NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
248 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE4939081
|
[0001] |
Cable harness
|
|
| |
|
|
Wire harness
|
|
| 6. |
VOE948285
|
[0001] |
None
|
|
| 7. |
VOE4939082
|
[0001] |
Cable harness
|
|
| 8. |
VOE948294
|
[0001] |
Insulator
|
|
| 1. |
VOE17431358
|
[0001] |
Microswitch
|
|
| 9. |
VOE4803320
|
[0001] |
Relay socket
|
|
| 10. |
VOE4803319
|
[0001] |
Delay relay
|
|
| 2. |
VOE4854793
|
[0001] |
Cable harness
|
|
| 3. |
VOE13948995
|
[0001] |
Pin housing
|
|
| 4. |
VOE13948996
|
[0001] |
Insulator
|
|
