神钢零件查询(6D14) - MITSUBISHI DIESEL ENGINE - K904C, K907B, K907C & YS750-2 (1/77-12/06) (03-014) - FUEL RETURN SYSTEM Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
605 次

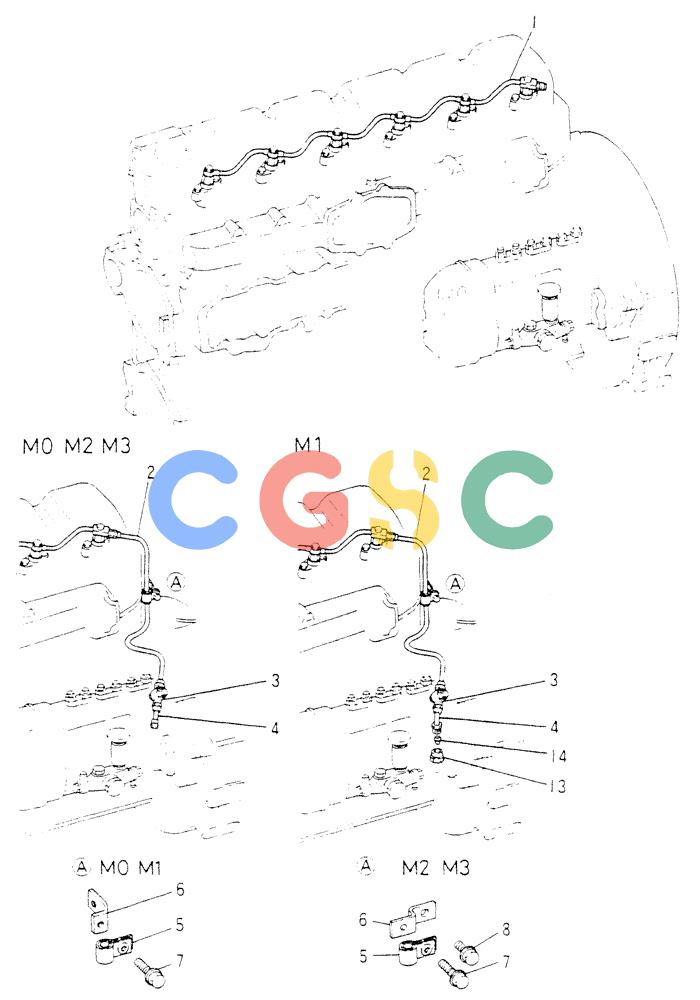

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME035957 | [1] | PIPE | KOBPIPE,A FUEL LEAK OFF |
| 2. | VAME035949 | [1] | PIPE PIPE,B FUEL LEAK OFF | PIPE PIPE,B FUEL LEAK OFF |
| 3. | VAME036121 | [1] | CONNECTOR CONNECTOR | CONNECTOR CONNECTOR |
| 4. | VAME039462 | [1] | PIPE,FUEL RETURN PIPE,FUEL RETURN D = 10 (FOR M0,M3 ONLY) | PIPE,FUEL RETURN PIPE,FUEL RETURN D = 10 (FOR M0,M3 ONLY) |
| 4. | VA3186194300 | [1] | PIPE,FUEL RETURN M16X1.5 (FOR M1 ONLY) | |
| 4. | VA3186190800 | [1] | PIPE PIPE,FUEL RETURN D=8 (FOR M2 ONLY) | PIPE PIPE,FUEL RETURN D=8 (FOR M2 ONLY) |
| 5. | VAMH020256 | [1] | CLIP CLIP | CLIP CLIP |
| 6. | VAMH023135 | [1] | STAY | KOBSTAY,PIPE (FOR M0,M1 ONLY) |
| 6. | VA3116151800 | [1] | STAY STAY,PIPE (FOR M2,M3 ONLY) | STAY STAY,PIPE (FOR M2,M3 ONLY) |
| 7. | VAMF140003 | [1] | BOLT | KOBBOLT,FLANGE 6X12, Start Year: 01-DEC-82 |
| 7. | VAMF241222 | [1] | SCREW | KOBBOLT,W/WSR 6X10, Years: -01-NOV-82 Superseded by part number: 132506A1 |
| 8. | VAMF140021 | [1] | SCREW | KOBBOLT,FLANGE 8X12 (FOR M2,M3 ONLY), Start Year: 01-DEC-82 |
| 8. | VAMF240050 | [1] | BOLT | SMB0LT,W/WSR 8X14 (FOR M2,M3 ONLY), Years: -01-NOV-82 |
| 13. | VAMS446001 | [1] | NUT,UNION 8 (FOR M1 ONLY) | |
| 14. | VAMS526101 | [1] | NIPPLE 8 (FOR M1 ONLY) | |
