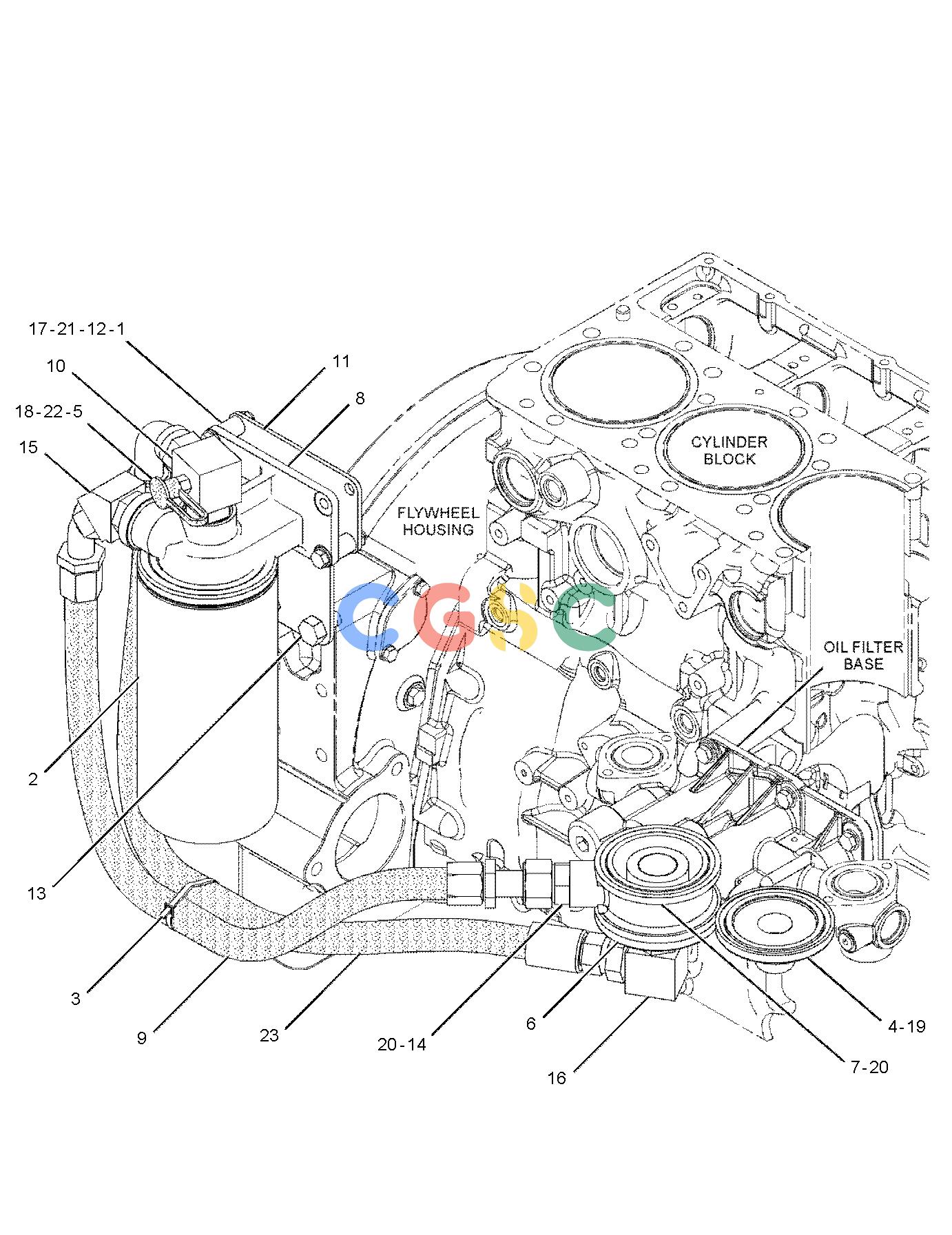

卡特零件查询（725） 227-9521: FILTER GP-ENGINE OIL
广数供应链运营团队, 14 02月, 2025，浏览：
893 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1M-3381C | [2] | SPACER(0.438X0.75X1-IN THK) | |
| 2. | 1R-1808C | [1] | FILTER-ENGINE OIL(ADVANCED EFFICIENCY) | |
| 3. | 6K-0806C | [1] | STRAP-CABLE | |
| 4. | 7C-9542 | [1] | COVER-FILTER BASE | |
| 5. | 8C-3445 | [1] | CAP-DUST(FLUID SAMPLING VALVE) | |
| 6. | 102-5828 | [1] | COVER | |
| 7. | 102-5829 | [1] | ADAPTER | |
| 8. | 104-7995 | [1] | BASE GP-OIL FILTER | |
| | 2P-4304 | [1] | STUD-HOLLOW | |
| 9. | 185-7821I | [1] | HOSE AS | |
| 10. | 199-6417 | [1] | ELBOW AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| | 186-3705 | [1] | ELBOW | |
| 11. | 269-6443C | [1] | PLATE | |
| 12. | 085-8091CM | [2] | BOLT(M10X1.5X55-MM) | |
| 13. | 0S-1624C | [2] | BOLT(5/8-11X1-IN) | |
| 14. | 148-8335 | [1] | CONNECTOR AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-8635 | [1] | CONNECTOR | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 15. | 148-8355 | [1] | ELBOW AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-9005 | [1] | ELBOW | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 16. | 148-8357 | [1] | ELBOW AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-9008 | [1] | ELBOW | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 17. | 2Y-5829CM | [2] | NUT(M10X1.5-THD) | |
| 18. | 3J-7354C | [1] | SEAL-O-RING | |
| 19. | 5S-9134 | [1] | SEAL-O-RING | |
| 20. | 6V-3908 | [2] | SEAL-O-RING | |
| 21. | 6V-5839C | [2] | WASHER(11X21X2.5-MM THK) | |
| 22. | 8C-3446 | [1] | VALVE-SAMPLING(ENGINE OIL) | |
| 23. | 9U-0297CI | [1] | HOSE AS | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
