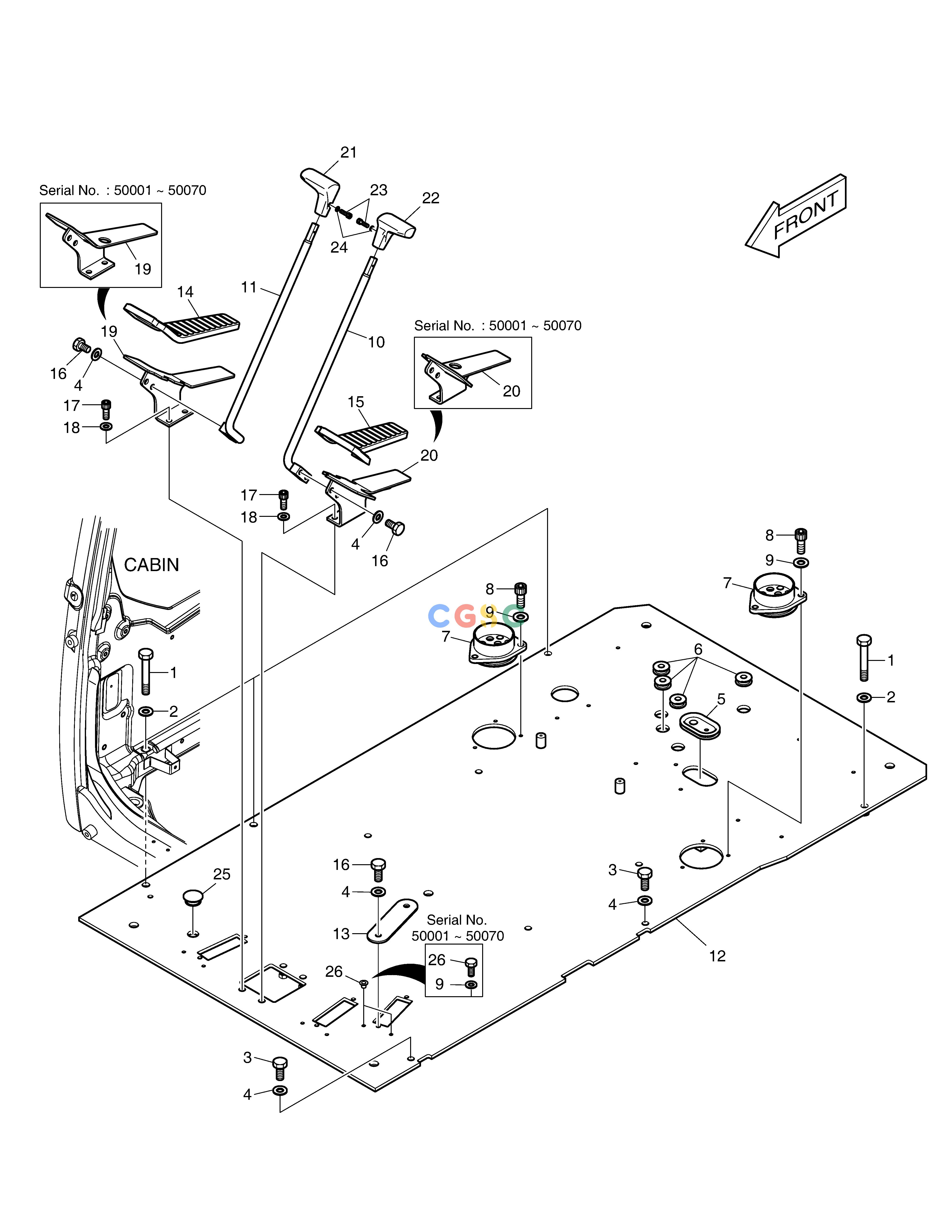

斗山零件查询FLOOR PLATE DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
616 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
622-00426G
|
[-] |
FLOOR PLATE ASS'Y
|
|
| 1. |
2120-2166D55
|
[4] |
BOLT
|
|
| 10. |
133-00229A
|
[1] |
LEVER;TRAVEL (L.H)
|
|
| 11. |
133-00230A
|
[1] |
LEVER;TRAVEL (R.H)
|
|
| 12. |
621-02892G
|
[1] |
PLATE;FLOOR
|
621-02892J
|
| 12. |
621-02892J
|
[1] |
PLATE;FLOOR
|
|
| 13. |
621-01507
|
[1] |
PLATE
|
621-01507A
|
| 13. |
621-01507A
|
[1] |
PLATE
|
|
| 14. |
161-00381
|
[1] |
RUBBER,PEDAL(R.H)
|
|
| 15. |
161-00382
|
[1] |
RUBBER;PEDAL(L.H)
|
|
| 16. |
2120-2166D4
|
[6] |
BOLT
|
|
| 17. |
S2211866
|
[4] |
BOLT
|
|
| 18. |
S5110603
|
[4] |
WASHER
|
|
| 19. |
195-01683A
|
[1] |
BRACKET,PEDAL(R.H)
|
K1039515
|
| 19. |
K1039515
|
[1] |
BRACKET;PEDAL(R.H)
|
|
| 2. |
2114-1898D17
|
[4] |
WASHER
|
|
| 20. |
195-01684A
|
[1] |
BRACKET;PEDAL(L.H)
|
K1039514
|
| 20. |
K1039514
|
[1] |
BRACKET;PEDAL(L.H)
|
|
| 21. |
2132-1134B
|
[1] |
GRIP,LEVER(R.H)
|
|
| 22. |
2132-1133B
|
[1] |
GRIP,LEVER(L.H)
|
|
| 23. |
S2201766
|
[2] |
BOLT
|
|
| 24. |
S5000113
|
[2] |
WASHER
|
|
| 25. |
2161-2487
|
[1] |
CAP
|
|
| 26. |
2120-2166D12
|
[2] |
BOLT
|
|
| 26. |
160-00073A
|
[2] |
CAP
|
|
| 3. |
2120-2166D1
|
[2] |
BOLT
|
|
| 4. |
2114-1898D1
|
[8] |
WASHER
|
|
| 5. |
160-00071
|
[1] |
BUSHING
|
|
| 6. |
160-00072
|
[4] |
BUSHING
|
|
| 7. |
160-00080A
|
[2] |
BUSHING;RUBBER
|
160-00080B
|
| 7. |
160-00080B
|
[2] |
BUSHING
|
|
| 8. |
S2208866
|
[6] |
BOLT
|
|
| 9. |
2114-1898D14
|
[8] |
WASHER
|
2114-1898D14
|
| 9. |
2114-1898D14
|
[6] |
WASHER
|
|
