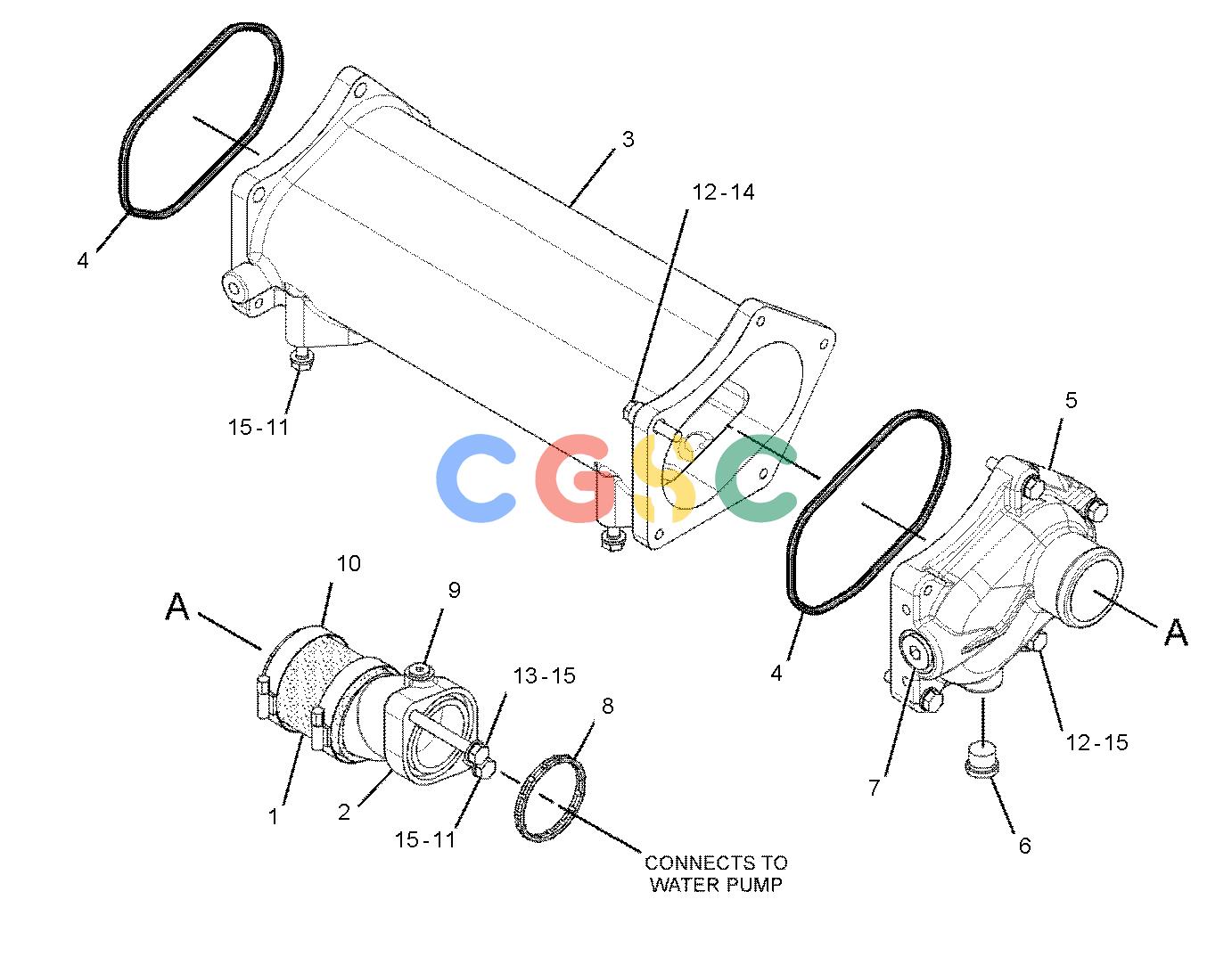

卡特零件查询（725） 231-0152: COOLER GP-ENGINE OIL
广数供应链运营团队, 14 02月, 2025，浏览：
685 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 131-6645C | [1] | HOSE | |
| 2. | 230-4518 | [1] | ELBOW | |
| 3. | 236-8745 | [1] | CORE AS-OIL COOLER(ENGINE) | |
| 4. | 341-1429 | [2] | SEAL(FRONT) | |
| 5. | 349-3313 | [1] | BONNET(OIL COOLER) | |
| 6. | 353-5124 | [1] | PLUG AS(7/16-20-THD) | |
| | 6V-3250 | [1] | SEAL-O-RING | |
| | 9S-8004 | [1] | PLUG(9/16-18-THD) | |
| 7. | 353-5125 | [1] | PLUG AS(9/16-18-THD) | |
| | 6V-3251 | [1] | SEAL-O-RING | |
| | 9S-8006 | [1] | PLUG(7/8-14-THD) | |
| 8. | 224-2675 | [1] | SEAL | |
| 9. | 304-8008 | [1] | PLUG AS | |
| | 6V-9027 | [1] | SEAL-O-RING | |
| | 9S-8002 | [1] | PLUG(7/16-20-THD) | |
| 10. | 335-9214 | [2] | CLAMP-BAND | |
| 11. | 6V-2317M | [5] | BOLT(M8X1.25X30-MM) | |
| 12. | 6V-5219M | [5] | BOLT(M8X1.25X40-MM) | |
| 13. | 6V-5221M | [1] | BOLT(M8X1.25X80-MM) | |
| 14. | 8E-9571 | [1] | WASHER-HARD(8.8X16X7-MM THK) | |
| 15. | 9M-1974 | [10] | WASHER-HARD(8.8X16X2-MM THK) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
