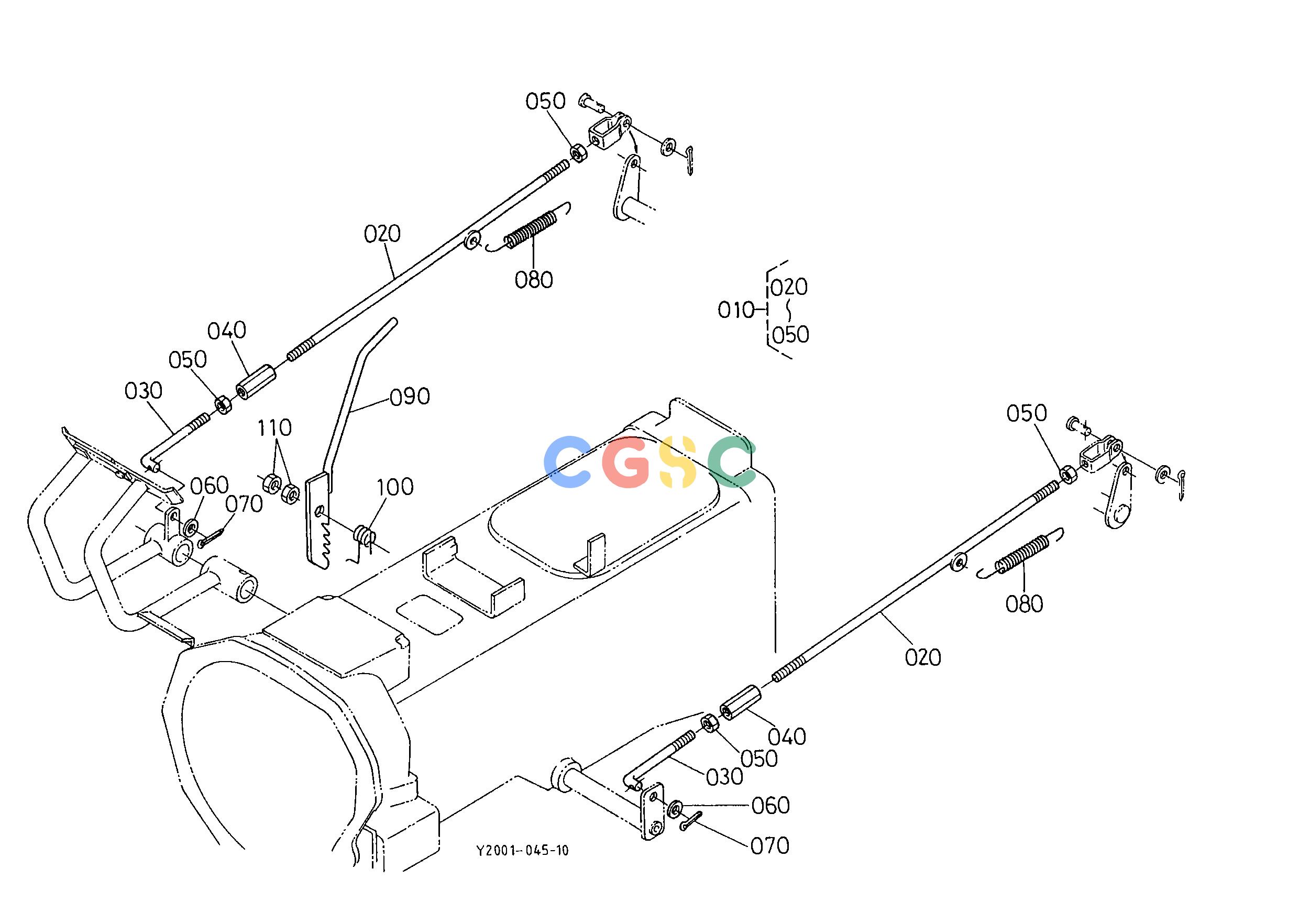

久保田零件查询T07300 BRAKE ROD BRAKEEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
1004 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6706142800
|
[2] |
ASSY ROD BRAKE
|
0.5280(lbs); 0.240
|
| 020. |
6706142810
|
[2] |
ROD BRAKE
|
0.3740(lbs); 0.170
|
| 030. |
6706142820
|
[2] |
ROD BRAKE FRONT
|
0.0880(lbs); 0.040
|
| 040. |
6659142410
|
[2] |
TURNBUCKLE
|
0.1012(lbs); 0.046
|
| 050. |
0211250080
|
[4] |
NUT
|
0.0066(lbs); 0.003
|
| 060. |
0401250080
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 070. |
0551150318
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 080. |
6659143190
|
[2] |
SPRING BRAKE RETURN
|
0.0968(lbs); 0.044
|
| 090. |
6706142852
|
[1] |
LEVER BRAKE LOCK
|
0.1870(lbs); 0.085
|
| 100. |
6620442840
|
[1] |
SPRING BRAKE LOCK
|
0.0132(lbs); 0.006
|
| 110. |
0217250120
|
[2] |
NUT
|
0.0220(lbs); 0.010
|
