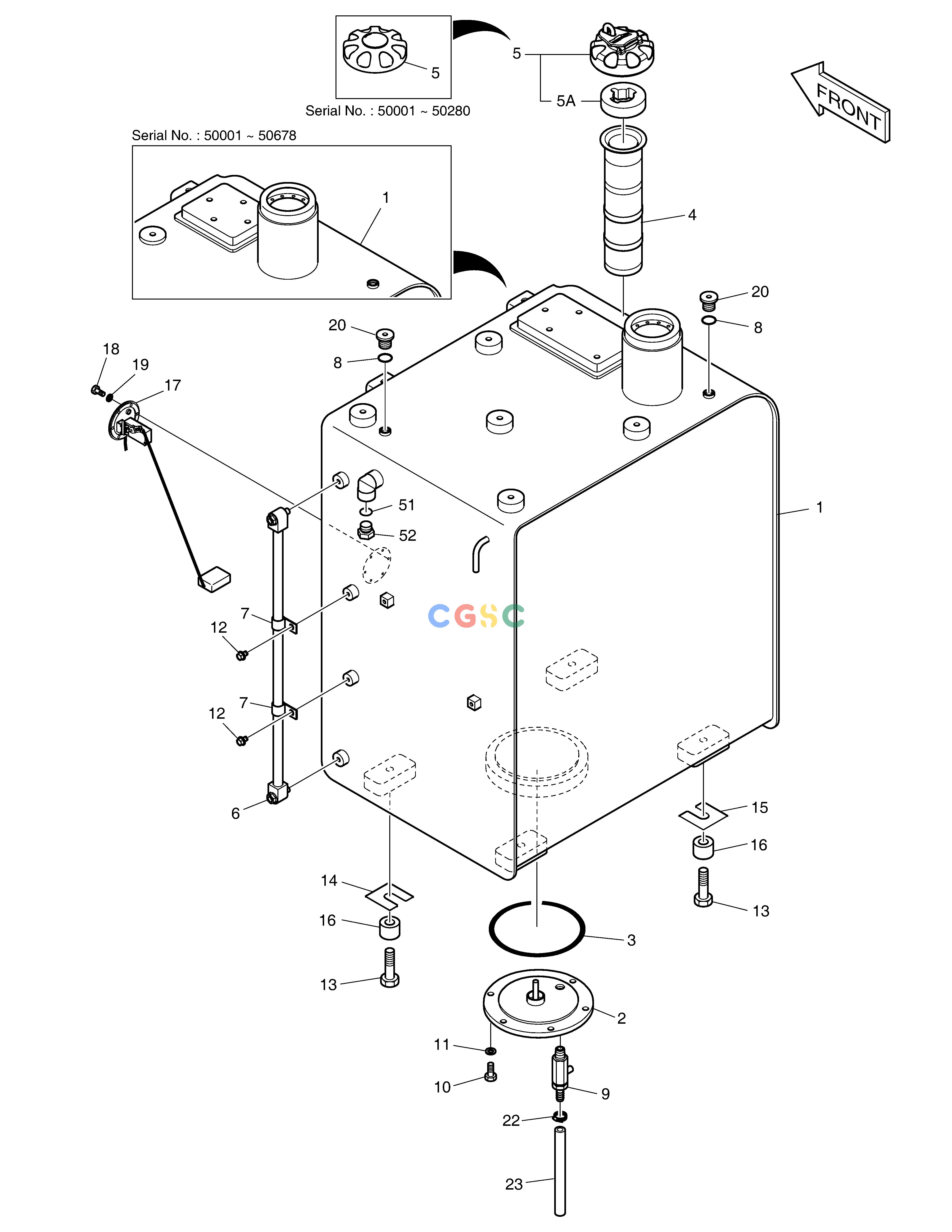

斗山零件查询FUEL TANK DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
693 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1016392G
|
[-] |
FUEL TANK ASS'Y
|
|
| 1. |
K1016393A
|
[1] |
TANK;FUEL
|
K1016393B
|
| 1. |
K1016393B
|
[1] |
TANK;FUEL
|
K1016393C
|
| 1. |
K1016393C
|
[1] |
TANK;FUEL
|
450103-00147
|
| 1. |
450103-00147
|
[1] |
|
|
| 1. |
450103-00147A
|
[1] |
|
|
| 10. |
S0512066
|
[6] |
. BOLT
|
|
| 11. |
S5102603
|
[6] |
. WASHER
|
|
| 12. |
K1001029
|
[2] |
BOLT
|
|
| 13. |
S0565466
|
[4] |
BOLT
|
|
| 14. |
2114-1813
|
[2] |
SHIM,0.8T
|
|
| 15. |
2114-1814
|
[2] |
SHIM,1.6T
|
|
| 16. |
114-00425
|
[4] |
SPACER
|
|
| 17. |
547-00026
|
[1] |
SENDER;FUEL
|
301316-00016
|
| 17. |
301316-00016
|
[1] |
|
|
| 18. |
S3450833
|
[6] |
BOLT
|
|
| 19. |
S5100203
|
[6] |
WASHER
|
|
| 2. |
473-00033
|
[1] |
COVER
|
|
| 20. |
2181-1890D2
|
[2] |
PLUG
|
|
| 22. |
S8450012
|
[1] |
CLAMP
|
|
| 23. |
DS2105053
|
[1] |
HOSE
|
|
| 3. |
S8011450
|
[1] |
O-RING
|
|
| 4. |
471-00105A
|
[1] |
FILTER,FUEL STRAINER
|
|
| 5. |
K1004166
|
[1] |
CAP
|
110911-00013
|
| 51. |
S8000181
|
[1] |
O-RING
|
|
| 52. |
2181-1950D7
|
[1] |
. PLUG
|
|
| 5A. |
110911-00013
|
[1] |
CAP,FUEL
|
|
| 6. |
119-00014AD1
|
[1] |
GAUGE;LEVEL
|
|
| 7. |
DS2802021
|
[2] |
CLIP
|
|
| 8. |
S8000111
|
[2] |
O-RING
|
|
| 9. |
186-00017A
|
[1] |
COCK;DRAIN
|
|
