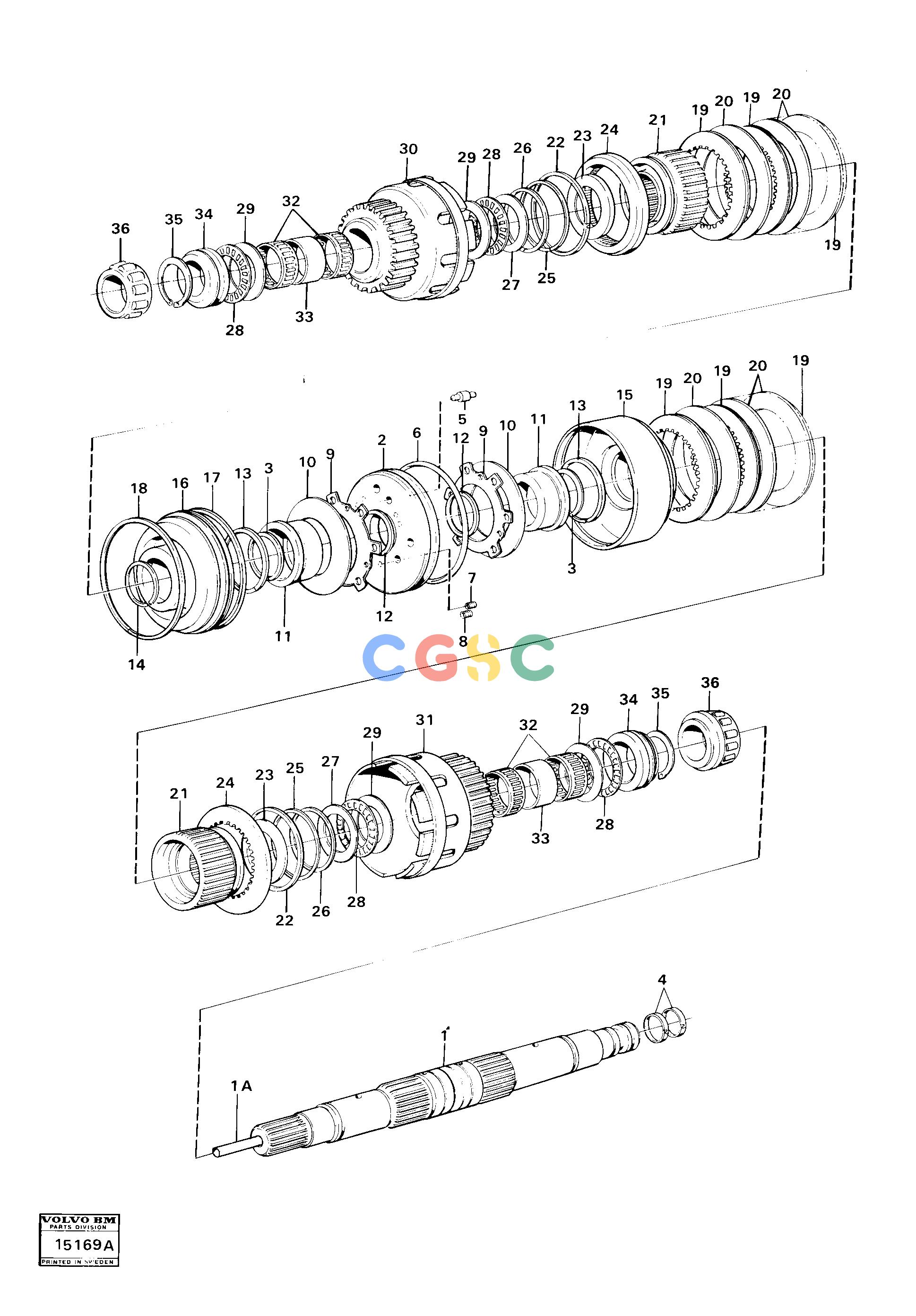

沃尔沃零件查询4400 Clutches forward and reverse4400 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
742 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE4871049
|
[0002] |
Piston ring
|
|
| 5. |
VOE4881102
|
[0003] |
Tappet
|
|
| 6. |
VOE4871935
|
[0001] |
O-ring
|
|
| 7. |
VOE4786539
|
[0006] |
Compression spring
|
|
| 8. |
VOE4786538
|
[0006] |
Compression spring
|
|
| |
VOE4871301
|
[0001] |
Hydraulic clutch
|
|
| 9. |
VOE4786515
|
[0002] |
Reinforcing disc
|
|
| 10. |
VOE795664
|
[0002] |
Disc
|
|
| 11. |
VOE4786943
|
[0002] |
Piston
|
|
| 12. |
VOE795303
|
[0002] |
Lock ring
|
|
| 13. |
VOE795305
|
[0002] |
Piston ring
|
|
| 14. |
VOE795307
|
[0004] |
Piston ring
|
|
| 15. |
VOE4786520
|
[0001] |
Clutch body
|
|
| 16. |
VOE4786516
|
[0001] |
Piston
|
|
| 17. |
VOE795310
|
[0001] |
Sealing ring
|
|
| 18. |
VOE795311
|
[0001] |
Lock ring
|
|
| 1. |
VOE4871502
|
[0001] |
Clutch shaft
|
|
| 19. |
VOE4873042
|
[0022] |
Friction disc
|
|
| 20. |
VOE795322
|
[0020] |
Disc
|
|
| 21. |
VOE4786530
|
[0002] |
Clutch hub
|
|
| 22. |
VOE4786536
|
[0002] |
Lock ring
|
|
| 23. |
VOE795323
|
[0004] |
Retainer
|
|
| 1A. |
VOE4718002
|
[0001] |
Tube
|
|
| 24. |
VOE4786554
|
[0002] |
Pressure plate
|
HT-3122
|
| |
VOE4786554
|
[0002] |
Pressure plate
|
HT 3123-
|
| 25. |
VOE4786526
|
[0002] |
Lock ring
|
|
| 26. |
VOE795318
|
[0002] |
Lock ring
|
|
| 27. |
VOE795319
|
[0002] |
Washer
|
|
| 28. |
VOE795433
|
[0004] |
Needle bearing
|
|
| 2. |
VOE4786523
|
[0001] |
Partition wall
|
|
| 29. |
VOE4871341
|
[0004] |
Thrust washer
|
|
| 30. |
VOE11036070
|
[0001] |
Gear
|
|
| 31. |
VOE11036071
|
[0001] |
Gear
|
|
| 32. |
VOE784467
|
[0002] |
Needle bearing
|
|
| 33. |
VOE4718015
|
[0002] |
Spacer ring
|
|
| 34. |
VOE17433093
|
[0002] |
Thrust washer
|
|
| 35. |
VOE914472
|
[0002] |
Snap ring
|
|
| 36. |
VOE11997939
|
[0002] |
Roller bearing
|
|
| 3. |
VOE795303
|
[0002] |
Lock ring
|
|
| |
VOE183824
|
[0002] |
Roller bearing
|
|
| |
VOE6630545
|
[0001] |
Clutch kit
|
|
