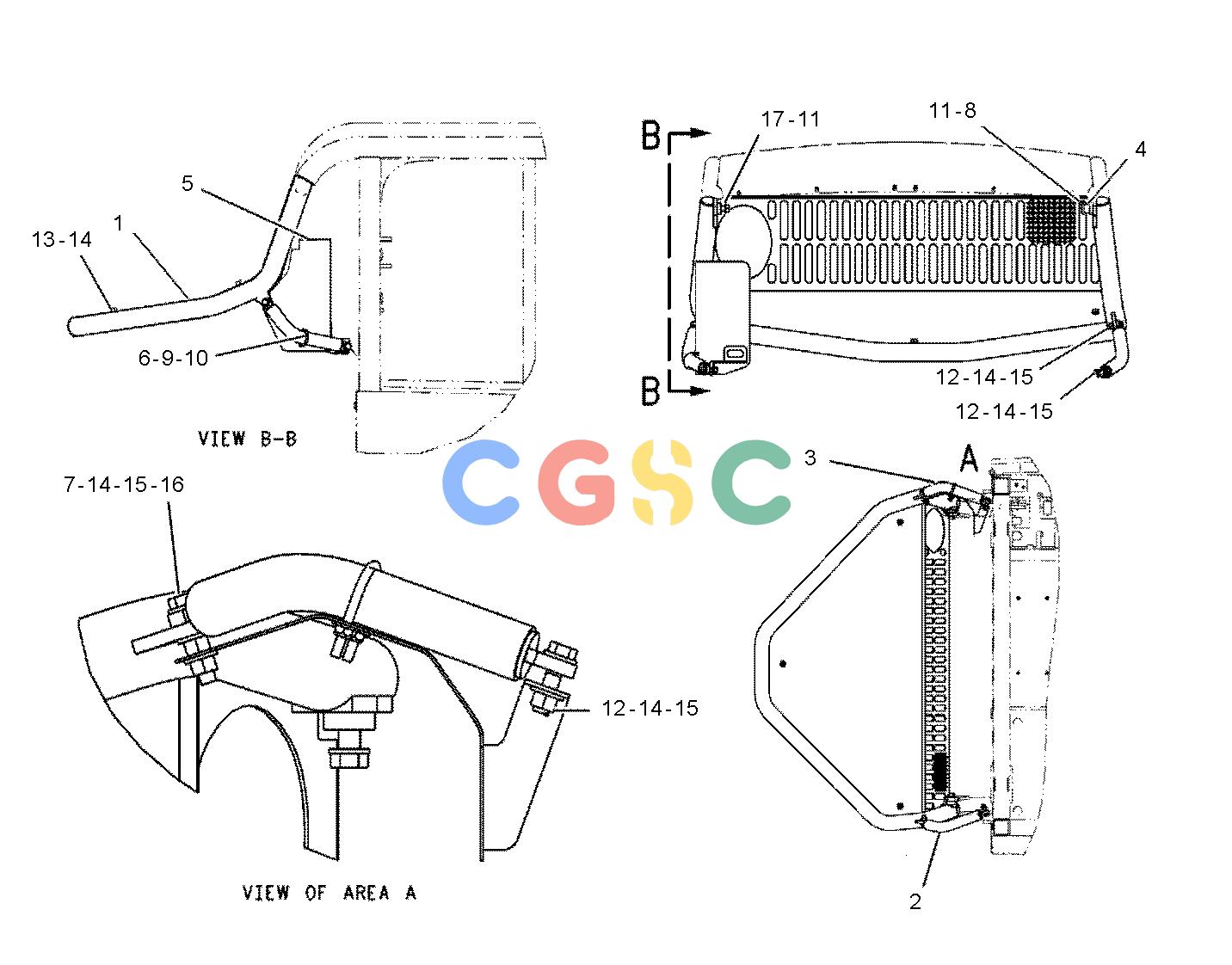

卡特零件查询（725） 149-0104: GUARD GP-WINDOW
广数供应链运营团队, 14 02月, 2025，浏览：
717 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 173-5255 | [1] | GUARD AS-WINDOW | |
| 2. | 188-2993 | [1] | SUPPORT AS(LH) | |
| 3. | 188-2995 | [1] | SUPPORT AS(RH) | |
| 4. | 188-3001 | [1] | BOSS(17.5X30X18-MM THK) | |
| 5. | 197-2420C | [1] | GUARD AS-EXHAUST | |
| 6. | 227-4768C | [1] | U-BOLT | |
| 7. | 198-4778C | [1] | WASHER-HARD(13.5X30X12-MM THK) | |
| 8. | 3E-9411 | [1] | WASHER-HARD(17.5X38X6-MM THK) | |
| 9. | 5P-4116C | [2] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 10. | 6V-9189CM | [2] | LOCKNUT(M8X1.25-THD) | |
| 11. | 7X-2554CM | [2] | BOLT(M16X2X70-MM) | |
| 12. | 8T-4184CM | [3] | BOLT(M12X1.75X45-MM) | |
| 13. | 8T-4192M | [3] | BOLT(M12X1.75X25-MM) | |
| 14. | 8T-4223 | [11] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 15. | 6V-7687M | [4] | LOCKNUT(M12X1.75-THD) | |
| 16. | 8T-4910CM | [1] | BOLT(M12X1.75X60-MM) | |
| 17. | 9X-8257 | [1] | WASHER(17.5X30X3.5-MM THK) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
