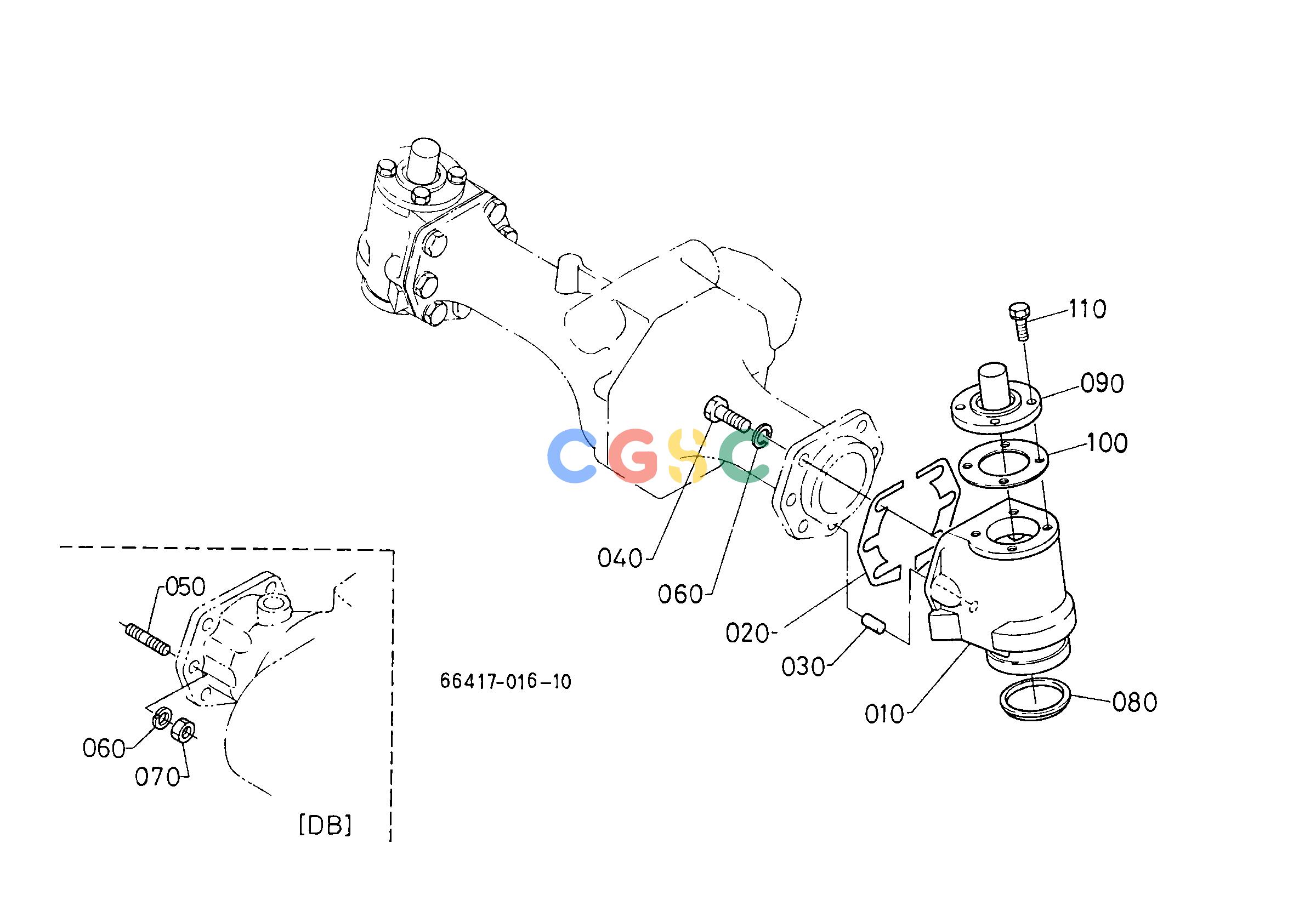

久保田零件查询T08000 BEVEL GEAR CASE ## [B1550HST-D:WITH BI-SPEED TURN/B1750HST-D:ALL] FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
796 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6712156210
|
[2] |
CASE BEVEL GEAR
|
5.7200(lbs); 2.600
|
| 020. |
6712156230
|
[4] |
SHIM
|
0.0088(lbs); 0.004
|
| 020. |
6712156240
|
[4] |
SHIM
|
0.0066(lbs); 0.003
|
| 030. |
0501201020
|
[2] |
PIN STRAIGHT
|
0.0286(lbs); 0.013
|
| 040. |
0115351230
|
[6] |
BOLT
|
0.0792(lbs); 0.036
|
| 040. |
0115351228
|
[6] |
BOLT
|
0.0748(lbs); 0.034
|
| 050. |
6715676150
|
[6] |
STUD
|
0.0660(lbs); 0.030
|
| 060. |
0451250120
|
[12] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 070. |
0217450120
|
[6] |
NUT
|
0.0220(lbs); 0.010
|
| 080. |
6712156250
|
[2] |
SEAL DUST
|
0.0022(lbs); 0.001
|
| 090. |
6712156263
|
[2] |
SUPPORT KNUCKLE ARM
|
0.8800(lbs); 0.400
|
| 100. |
6712156270
|
[2] |
GASKET
|
0.0000(lbs); 0.000
|
| 110. |
0112350822
|
[8] |
BOLT
|
0.0264(lbs); 0.012
|
