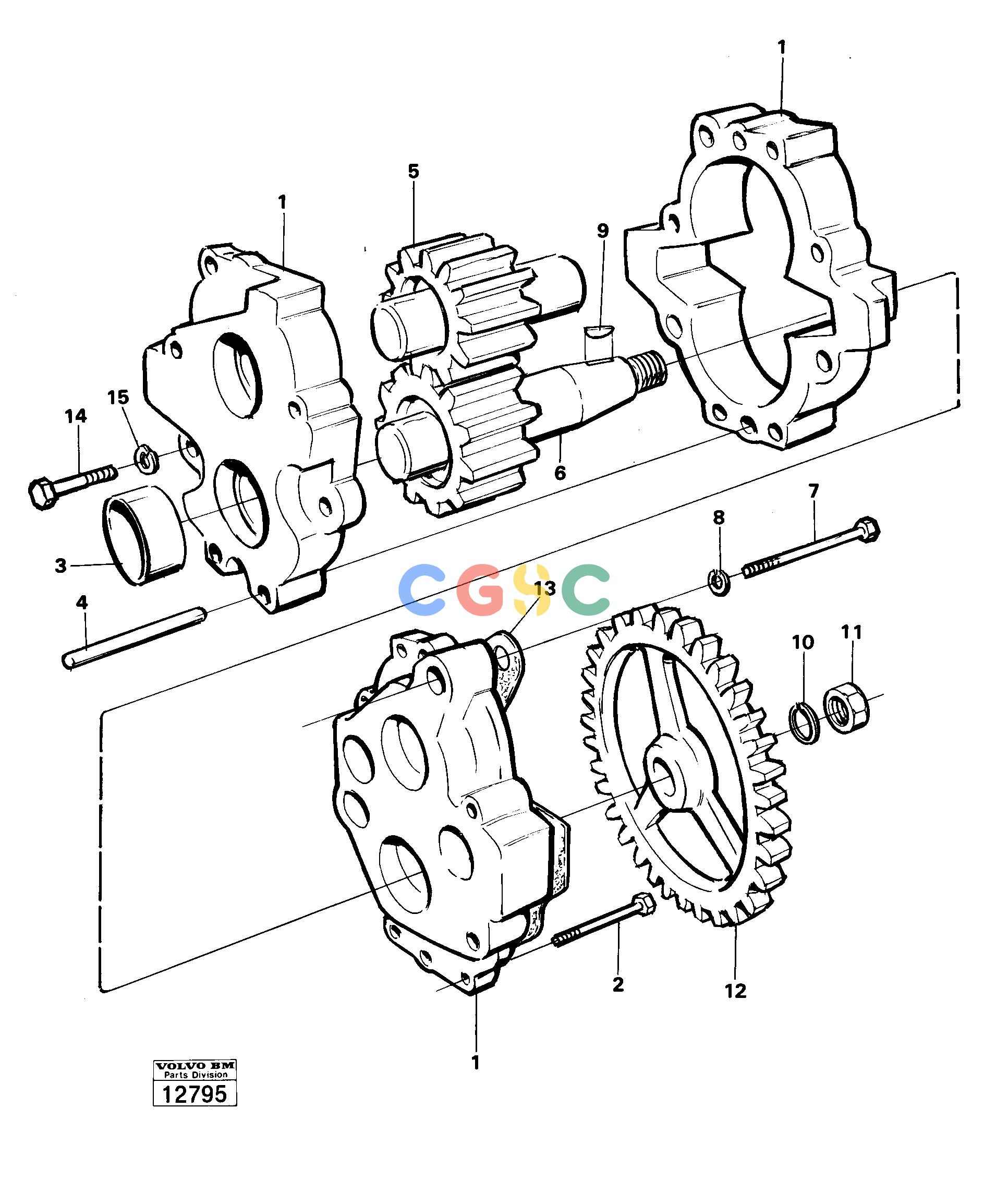

沃尔沃零件查询4400 Transmission pump4400 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
990 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE951985
|
[0002] |
Spring pin
|
|
| 5. |
VOE4720068
|
[0001] |
Gear
|
|
| 6. |
VOE4720074
|
[0001] |
Gear
|
|
| 7. |
VOE955282
|
[0003] |
Hexagon screw
|
|
| 8. |
VOE13941906
|
[0005] |
Washer
|
|
| |
VOE4720099
|
[0001] |
Pump
|
|
| 9. |
VOE910112
|
[0001] |
Woodruff key
|
|
| 10. |
VOE940280
|
[0001] |
Spring washer
|
|
| 11. |
VOE150137
|
[0001] |
Hexagon nut
|
|
| 12. |
VOE4720090
|
[0001] |
Gear
|
|
| 13. |
VOE11036098
|
[0001] |
Gasket
|
|
| 14. |
VOE959250
|
[0003] |
Hex. socket screw
|
|
| 15. |
VOE941908
|
[0003] |
Spring washer
|
|
| 1. |
|
[0001] |
Housing
|
|
| 2. |
VOE955282
|
[0002] |
Hexagon screw
|
|
| 3. |
VOE944096
|
[0004] |
Bearing bushing
|
|
