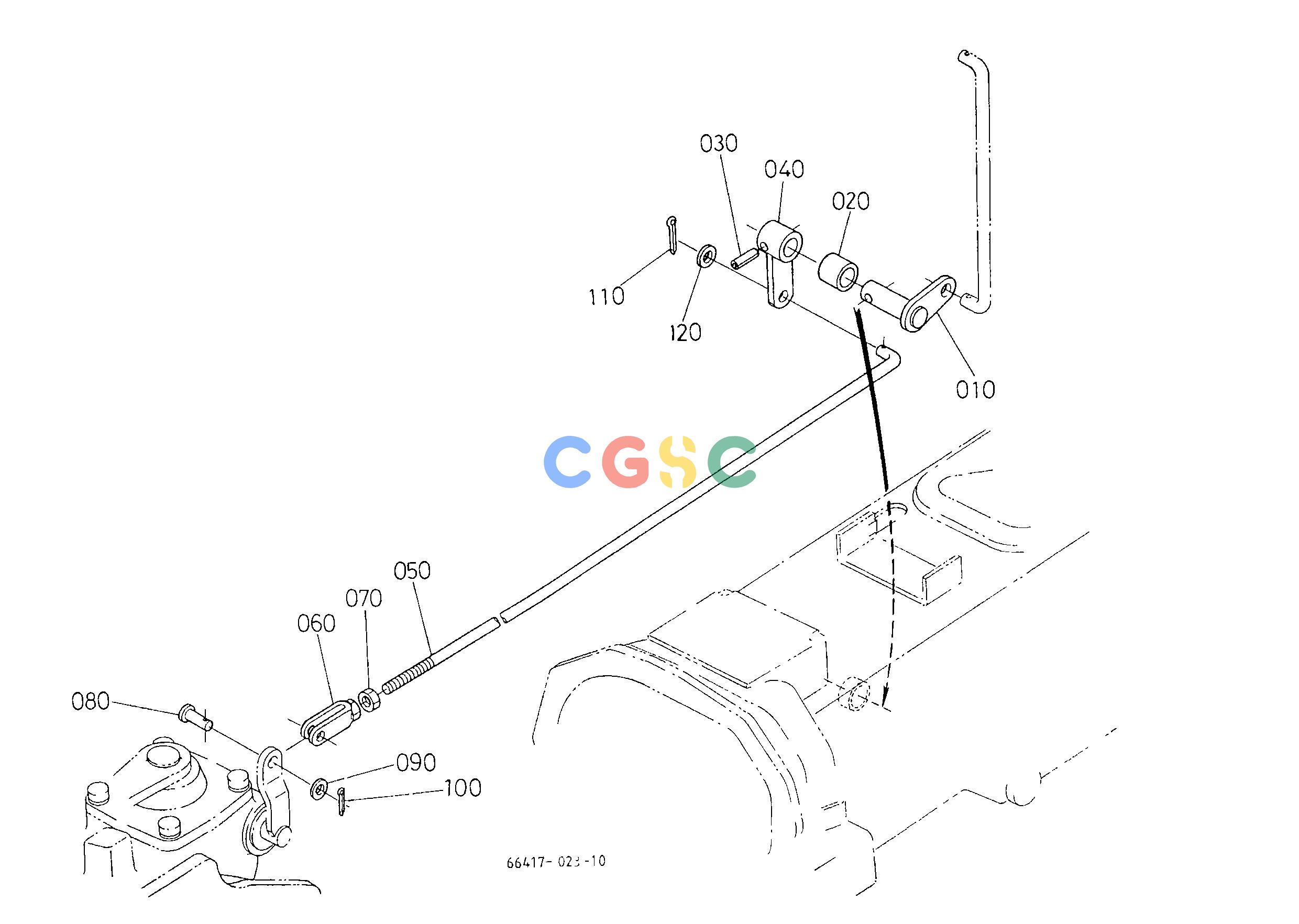

久保田零件查询T08900 BI-SPEED TURN ROD [WITH BI-SPEED TURN] FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
497 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6641744180
|
[1] |
SHAFT BI-S.T.ARM
|
0.1760(lbs); 0.080
|
| 020. |
0851101420
|
[1] |
BUSH
|
0.0154(lbs); 0.007
|
| 030. |
0541100630
|
[1] |
PIN SPRING
|
0.0088(lbs); 0.004
|
| 040. |
6641744210
|
[1] |
ARM BI-S.T.FULCRUM
|
0.1320(lbs); 0.060
|
| 050. |
6641744220
|
[1] |
ROD BI-S.T.CHANGE
|
0.3960(lbs); 0.180
|
| 060. |
6731142830
|
[1] |
U-JOINT
|
0.1100(lbs); 0.050
|
| 070. |
0211250080
|
[1] |
NUT
|
0.0066(lbs); 0.003
|
| 080. |
0512250822
|
[1] |
PIN JOINT
|
0.0220(lbs); 0.010
|
| 090. |
0401250080
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 100. |
0551150218
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 110. |
0551150318
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 120. |
0401250080
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
