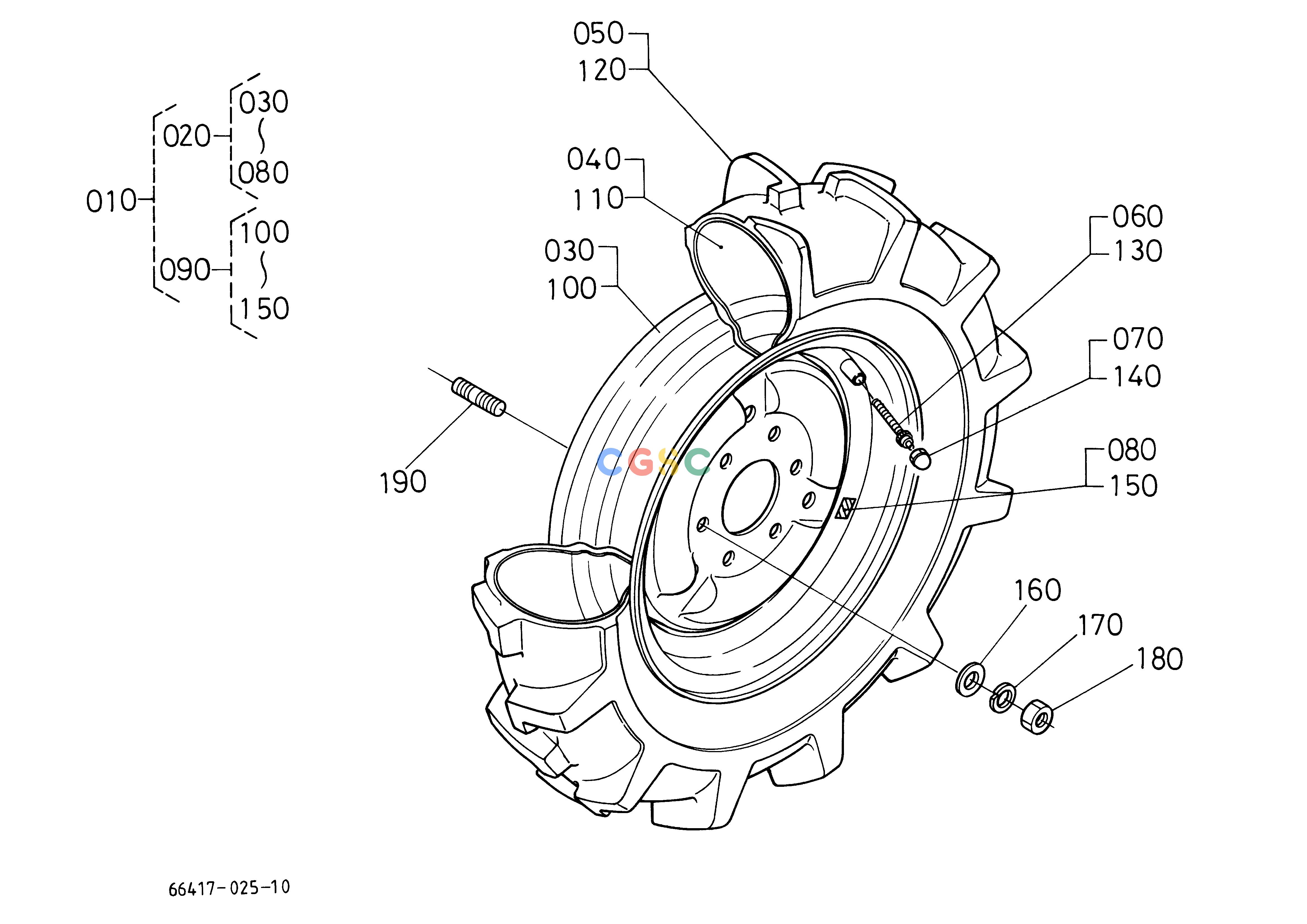

久保田零件查询T09101 FRONT WHEEL (6-12B) FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
635 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6641557400
|
[1] |
ASSY TIRE FRONT
|
61.6000(lbs); 28.000
|
| 020. |
6641557410
|
[1] |
ASSY TIRE LH
|
30.4040(lbs); 13.820
|
| 030. |
6641957420
|
[1] |
WHEEL
|
13.0020(lbs); 5.910
|
| 040. |
9301601120
|
[1] |
TUBE
|
1.5400(lbs); 0.700
|
| 050. |
9601534130
|
[1] |
TIRE
|
15.8400(lbs); 7.200
|
| 060. |
3215027740
|
[1] |
CORE VALVE
|
0.0066(lbs); 0.003
|
| 070. |
3824011690
|
[1] |
CAP VALVE
|
0.0044(lbs); 0.002
|
| 080. |
6641557430
|
[1] |
LABEL TIRE LH
|
0.0022(lbs); 0.001
|
| 090. |
6641557440
|
[1] |
ASSY TIRE RH
|
0.0000(lbs); 0.000
|
| 100. |
6641957420
|
[1] |
WHEEL
|
13.0020(lbs); 5.910
|
| 110. |
9301601120
|
[1] |
TUBE
|
1.5400(lbs); 0.700
|
| 120. |
9601534130
|
[1] |
TIRE
|
15.8400(lbs); 7.200
|
| 130. |
3215027740
|
[1] |
CORE VALVE
|
0.0066(lbs); 0.003
|
| 140. |
3824011690
|
[1] |
CAP VALVE
|
0.0044(lbs); 0.002
|
| 150. |
6641557450
|
[1] |
LABEL TIRE RH
|
0.0022(lbs); 0.001
|
| 160. |
0401360120
|
[12] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 170. |
0451250120
|
[12] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 180. |
0217450120
|
[12] |
NUT
|
0.0220(lbs); 0.010
|
| 190. |
6659156564
|
[12] |
BOLT STUD
|
0.0616(lbs); 0.028
|
