久保田零件查询T09401 MANUAL STEERING STEERINGEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
854 次

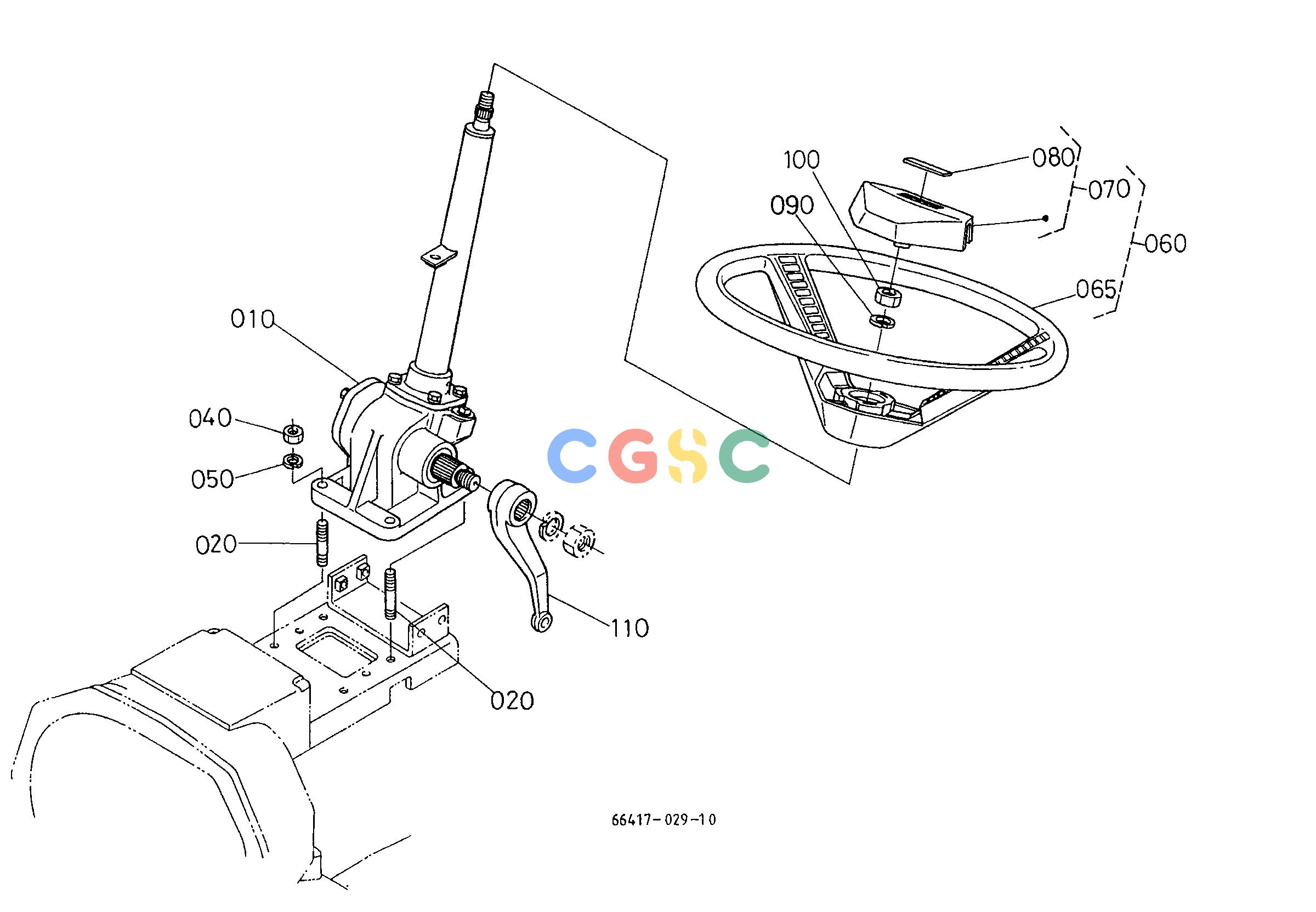

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6641641100
|
[1] |
ASSY STEERING
|
13.6400(lbs); 6.200
|
| 020. |
0151751028
|
[4] |
STUD
|
0.0484(lbs); 0.022
|
| 040. |
0211850100
|
[4] |
NUT
|
0.0110(lbs); 0.005
|
| 050. |
0451260100
|
[4] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 060. |
6615041450
|
[1] |
ASSY WHEEL STEERING
|
4.1800(lbs); 1.900
|
| 065. |
3741041460
|
[1] |
WHEEL STEERING
|
4.4000(lbs); 2.000
|
| 070. |
3741041470
|
[1] |
ASSY PAD
|
0.0000(lbs); 0.000
|
| 070. |
6714841470
|
[1] |
ASSY PAD
|
0.1320(lbs); 0.060
|
| 080. |
3741041490
|
[1] |
MARK
|
0.0110(lbs); 0.005
|
| 080. |
6714841490
|
[1] |
MARK
|
0.0110(lbs); 0.005
|
| 090. |
0451250120
|
[1] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 100. |
0217250120
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
| 110. |
6641741140
|
[1] |
ARM PITMAN
|
1.6500(lbs); 0.750
|
