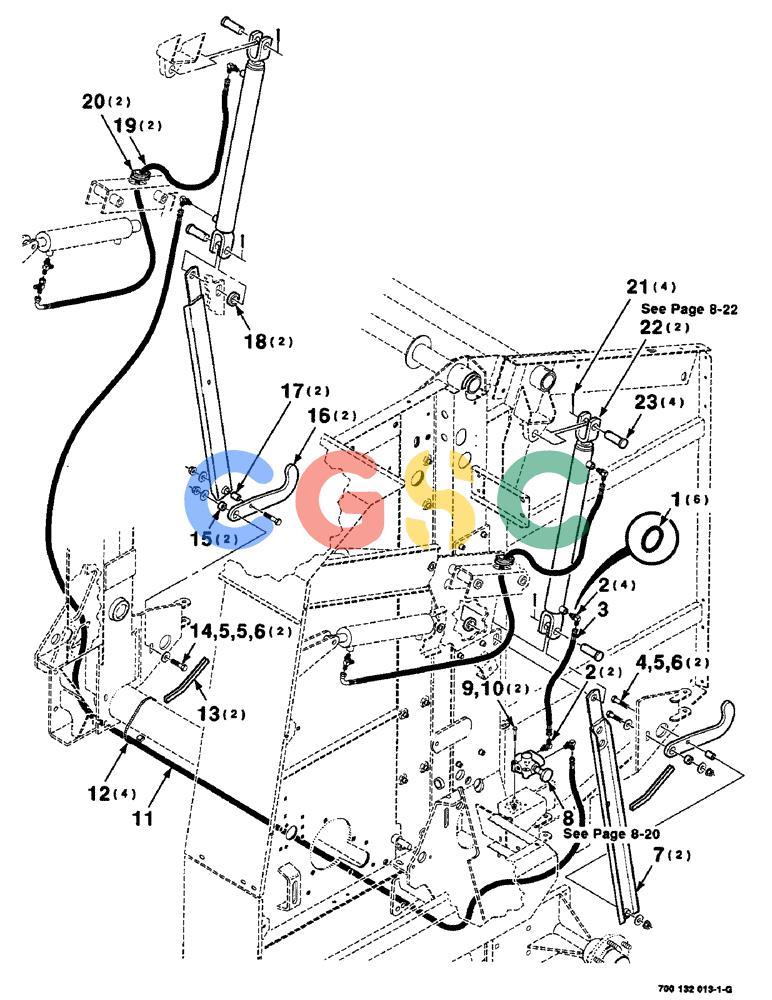

凯斯零件查询(8435) - CASE IH SILAGE SPECIAL ROUND BALER (1/97-12/00) (8-18) - HYDRAULIC ASSEMBLY, TAILGATE Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
973 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
738468
|
[6] |
O-RING
|
IH
|
| 2. |
218-5105
|
[6] |
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
- 90 degrees (includes item 1) Superseded by part number: 76344, 72186128
|
| 3. |
700714818
|
[1] |
HYDRAULIC HOSE,0.38" ID x 27.56", SAE J516, SAE J343
|
CAS
HOSE - hydraulic
|
| 4. |
413-836
|
[2] |
BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5
|
CAS
Superseded by part number: 87975
|
| 5. |
700711557
|
[6] |
WASHER
|
CAS
1/2 HARDENED WIDE PLAIN WASHER
|
| 6. |
231-5348
|
[4] |
FLANGE NUT,Flg, 1/2"-13
|
CAS
1/2-13 HFTLN GR/G Superseded by part number: 86521610
|
| 7. |
700147502
|
[2] |
LINK
|
HFI
STRAP WA
|
| 8. |
700714887
|
[1] |
VALVE
|
CAS
ASSEMBLY - shutoff
|
| 9. |
413-528
|
[2] |
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5
|
CAS
Superseded by part number: 9707515, 72187200
|
| 10. |
232-5315
|
[2] |
FLANGE NUT,Flg, 5/16"-18
|
CAS
5/16-18 HFTLN GR/G
|
| 11. |
700714825
|
[1] |
HYDRAULIC HOSE,0.38" ID x 131.89", SAE J516, SAE J343
|
CAS
HOSE - hydraulic
|
| 12. |
214-1480
|
[4] |
HOSE CLAMP,#80, 4.62" - 5.5", Type F Worm
|
CAS
CLAMP, HOSE, #80, 4.62/5.50 Type F Worm Superseded by part number: 87019670
|
| 13. |
700716877
|
[2] |
ORNAMENTAL STRIP
|
CAS
TRIM - edge
|
| 14. |
413-832
|
[2] |
BOLT,Hex, 1/2" - 13 x 2", Gr 5
|
CAS
Superseded by part number: 9706716
|
| 15. |
700132512
|
[2] |
BUSHING
|
HFI
|
| 16. |
700132511
|
[2] |
LATCH
|
HFI
|
| 17. |
700132513
|
[2] |
BUSHING
|
HFI
|
| 18. |
700120629
|
[2] |
SPACER
|
HFI
|
| 19. |
700714821
|
[2] |
HOSE
|
CAS
- hydraulic
|
| 20. |
8027427
|
[2] |
GROMMET
|
CAS
|
| 21. |
432-1624
|
[4] |
COTTER PIN,1/4" x 1 1/2"
|
CAS
Pin, Split (Cotter), 1/4" x 1-1/2" Superseded by part number: 80753
|
| 22. |
700715833
|
[2] |
CYLINDER
|
CAS
ASSEMBLY - hydraulic
|
| 23. |
700710292
|
[4] |
PIN
|
CAS
CLEVIS, special
|
