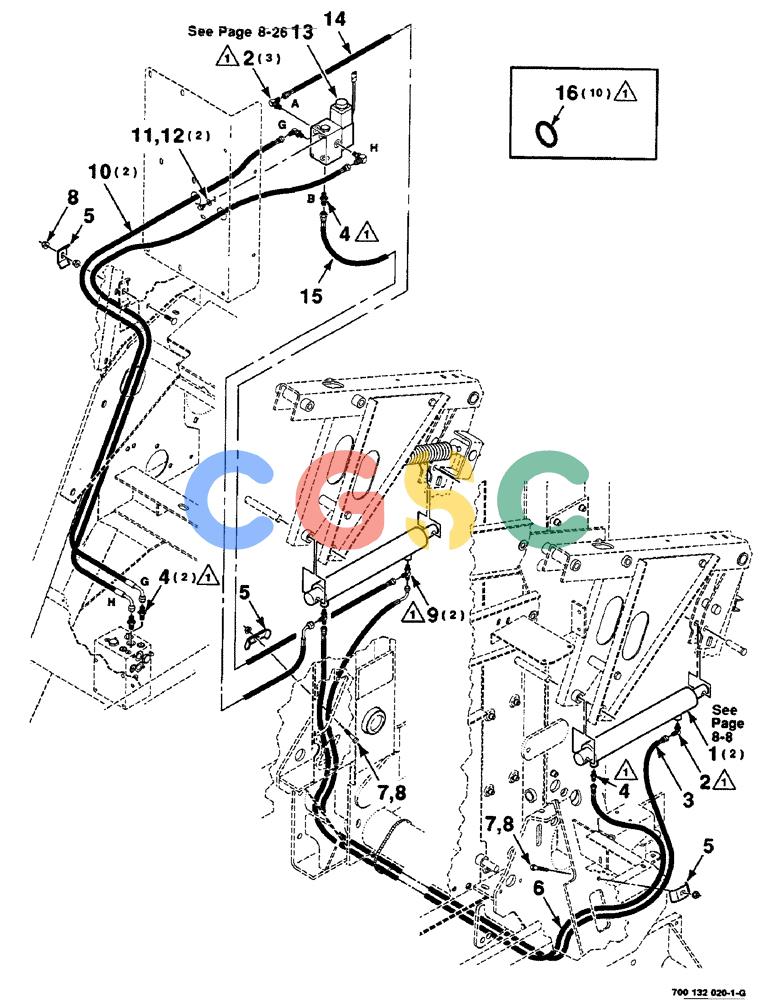

凯斯零件查询(8435) - CASE IH SILAGE SPECIAL ROUND BALER (1/97-12/00) (8-24) - EJECTOR HYDRAULIC ASSEMBLY Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
655 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700714707
|
[2] |
CYLINDER
|
CAS
ASSEMBLY - hydraulic
|
| 2. |
218-5105
|
[4] |
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
90 DEGREE ELBOW (includes item 16) Superseded by part number: 76344, 72186128
|
| 3. |
700714809
|
[1] |
HOSE
|
CAS
- hydraulic
|
| 4. |
218-5057
|
[4] |
HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB
|
CAS
CONNECTOR - short str thread (includes item 16) Superseded by part number: 76350
|
| 5. |
700120636
|
[3] |
CLAMP
|
HFI
|
| 6. |
700714825
|
[1] |
HYDRAULIC HOSE,0.38" ID x 131.89", SAE J516, SAE J343
|
CAS
HOSE - hyd
|
| 7. |
413-628
|
[2] |
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
|
CAS
Superseded by part number: 72187210, 9706689
|
| 8. |
232-5316
|
[3] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 9. |
218-5243
|
[2] |
TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
Straight run (Includes item 16) 9/16"-18, 37º x 9/16"-18, O-Ring Run Superseded by part number: 86513020
|
| 10. |
700714803
|
[2] |
HOSE
|
CAS
- hydraulic
|
| 11. |
256873
|
[2] |
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
|
NH
|
| 12. |
495-61034
|
[2] |
WASHER,0.34" ID x 0.88" OD x 0.06" Thk
|
CAS
5/16 WIDE PLAIN WASHER
|
| 13. |
700714785
|
[1] |
MANIFOLD
|
CAS
VALVE ASSEMBLY
|
| 14. |
700714805
|
[1] |
HYDRAULIC HOSE,0.38" ID x 27.17", SAE J517, SAE J516, SAE J343
|
CAS
HOSE - hyd
|
| 15. |
700714807
|
[1] |
HOSE
|
CAS
- hyd
|
| 16. |
738468
|
[10] |
O-RING
|
IH
|
