神钢零件查询(6D14) - MITSUBISHI DIESEL ENGINES - K907D & K907LC EXCAVATORS (1/86-12/06) (01-026) - ENGINE HANGER Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
333 次

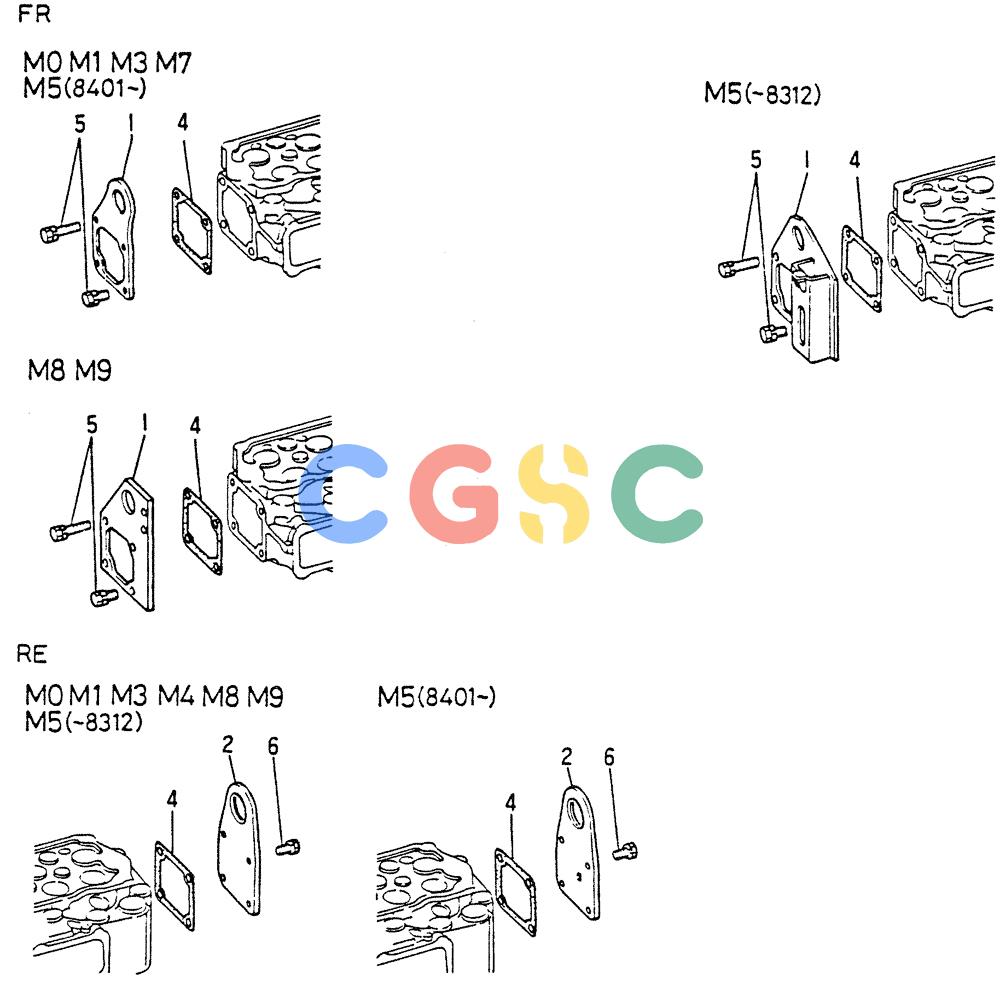

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME031928 | [1] | HANGER HANGER FR(FOR M0,M1,M3,M7 ONLY) | HANGER HANGER FR(FOR M0,M1,M3,M7 ONLY) |
| 1. | VAME039977 | [1] | BRACKET,HANGER(FOR M5 ONLY),-8312, Years: -01-DEC-83 | |
| 1. | VAME070156 | [1] | HANGER FR(FOR M8,M9 ONLY),8504-, Start Year: 01-APR-85 | |
| 1. | VAME037743 | [1] | HANGER FR(FOR M8,M9 ONLY)-8503, Years: -01-MAR-85 | |
| 2. | VAME031136 | [1] | HEAT EXCHANGER | KOBHANGER RE(FOR M0,M1,M3,M4,M8,M9 ONLY) |
| 2. | VAME037742 | [1] | HANGER RE(FOR M5 ONLY),8401-, Start Year: 01-JAN-84 | |
| 4. | VAME031082 | [1] | GASKET | KOBGASKET,HANGER(FOR M4,M7 ONLY) Superseded by part number: VAME074770 |
| 5. | NSS | [4] | NOT SOLD SEPARAT | CONBOLT,SEAL(FOR M0,M1,M3,M5,M7,M8 ONLY) |
| 6. | VA3001121900 | [3] | BOLT | KOBBOLT,SEAL 10X22(FOR M3 ONLY) |
| 6. | VAMH000122 | [4] | BOLT | KOBBOLT,SEAL 10X30(FOR M1,M7,M8 ONLY) |
