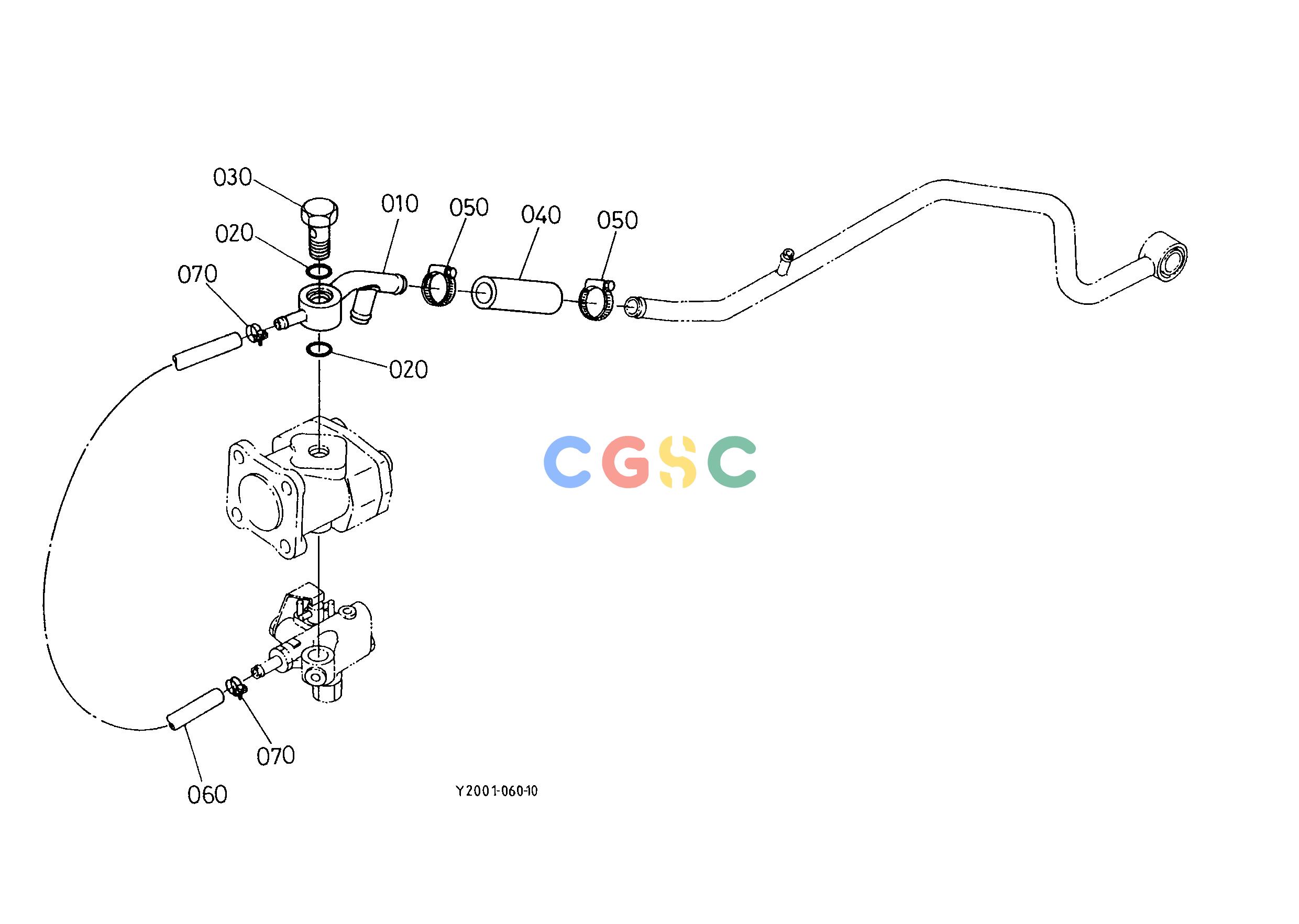

久保田零件查询T09900 HYDRAULIC PIPE (FRONT) HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
736 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6641736110
|
[1] |
PIPE SUCTION FRONT
|
0.6160(lbs); 0.280
|
| 020. |
0481100220
|
[2] |
RING
|
0.0022(lbs); 0.001
|
| 030. |
6781037710
|
[1] |
BOLT JOINT
|
0.2200(lbs); 0.100
|
| 040. |
6620436720
|
[1] |
HOSE
|
0.0880(lbs); 0.040
|
| 050. |
6620436230
|
[2] |
BAND PIPE
|
0.0440(lbs); 0.020
|
| 050. |
6795536230
|
[2] |
CLAMP
|
0.0506(lbs); 0.023
|
| 060. |
6641636340
|
[1] |
HOSE
|
0.1716(lbs); 0.078
|
| 070. |
1510973360
|
[2] |
BAND PIPE
|
0.0220(lbs); 0.010
|
