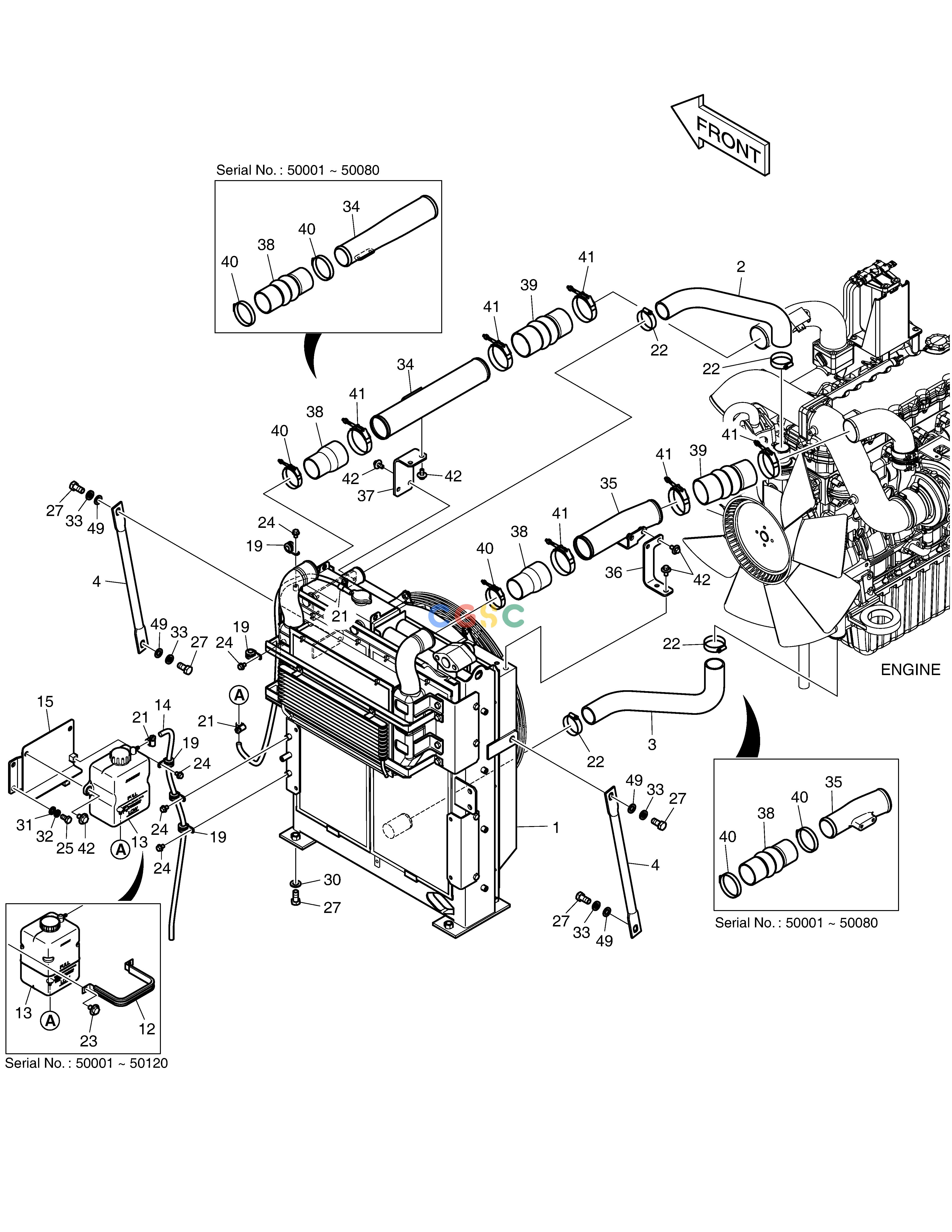

斗山零件查询RADIATOR MOUNTING DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
648 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1017777J
|
[-] |
ENGINE ASS'Y
|
|
| -. |
K1054336
|
[-] |
|
|
| 1. |
K1009271B
|
[1] |
RADIATOR ASS'Y
|
K1009271C
|
| 1. |
K1009271C
|
[1] |
RADIATOR ASS'Y
|
|
| 12. |
K1000722A
|
[1] |
CLAMP
|
|
| 13. |
K1003180A
|
[1] |
TANK;RESERVE
|
|
| 13. |
K1038409
|
[1] |
TANK;RESERVE
|
|
| 14. |
K1030756
|
[1] |
HOSE
|
|
| 15. |
K1009745A
|
[1] |
BRACKET
|
|
| 19. |
124-00208D2
|
[4] |
CLAMP
|
|
| 2. |
K1009160A
|
[1] |
HOSE;WATER
|
|
| 21. |
S8450006
|
[3] |
CLAMP
|
|
| 22. |
S8450053
|
[4] |
CLAMP;HOSE
|
|
| 23. |
DS0025014
|
[2] |
BOLT
|
|
| 24. |
K1001029
|
[5] |
BOLT
|
|
| 25. |
S0515066
|
[2] |
BOLT
|
|
| 27. |
S0521366
|
[8] |
BOLT
|
|
| 3. |
K1009161A
|
[1] |
HOSE;WATER
|
|
| 30. |
2114-1816A
|
[4] |
WASHER
|
|
| 31. |
S5010713
|
[2] |
WASHER;PLAIN
|
|
| 32. |
S5102703
|
[2] |
WASHER
|
|
| 33. |
S5102903
|
[4] |
WASHER
|
|
| 34. |
K1009162
|
[1] |
PIPE;AIR
|
|
| 34. |
K1046100
|
[1] |
PIPE;AIR
|
|
| 35. |
K1009163A
|
[1] |
PIPE;AIR
|
|
| 35. |
K1046101
|
[1] |
PIPE;AIR
|
|
| 36. |
K1009636A
|
[1] |
BRACKET
|
|
| 37. |
K1009637
|
[1] |
BRACKET
|
|
| 38. |
K1012213
|
[2] |
HOSE;AIR
|
K1038558
|
| 38. |
K1038558
|
[2] |
HOSE;CAC
|
K1038375
|
| 38. |
K1038375
|
[2] |
HOSE;AIR
|
|
| 39. |
K1012214
|
[2] |
HOSE;CAC
|
K1038559
|
| 39. |
K1038559
|
[2] |
HOSE;CAC
|
|
| 4. |
K1009635
|
[2] |
STAY
|
|
| 40. |
K1000704A
|
[4] |
CLAMP
|
|
| 40. |
K1000704A
|
[2] |
CLAMP
|
|
| 41. |
124-00194
|
[4] |
CLAMP
|
|
| 41. |
124-00194
|
[6] |
CLAMP
|
|
| 42. |
DS0025017
|
[8] |
BOLT
|
|
| 42. |
DS0025017
|
[10] |
BOLT
|
|
| 49. |
S5010913
|
[4] |
WASHER
|
|
