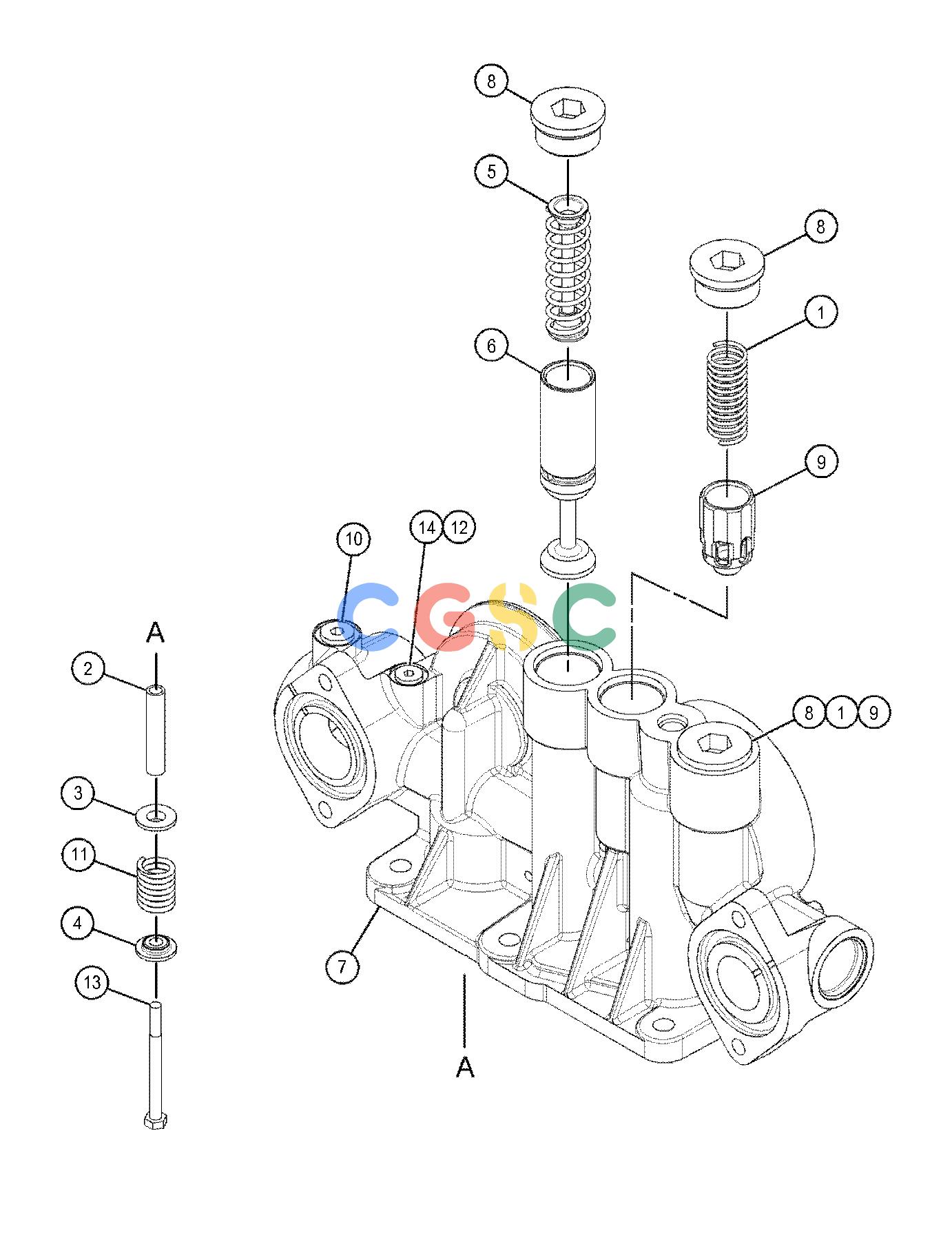

卡特零件查询（725） 530-2298: BASE GP-OIL FILTER
广数供应链运营团队, 14 02月, 2025，浏览：
784 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4N-8150 | [2] | SPRING | |
| 2. | 7C-3081 | [1] | SPACER(6.88X9.53X50-MM THK) | |
| 3. | 7C-3082 | [1] | RETAINER | |
| 4. | 7C-3083 | [1] | SEAT-RELIEF VALVE SPRING | |
| 5. | 7C-3954 | [1] | SPRING AS | |
| 6. | 224-3405 | [1] | VALVE AS(OIL PUMP BYPASS) | |
| 7. | 251-6668 | [1] | BASE AS-OIL FILTER | |
| | 2P-4304 | [1] | STUD-HOLLOW | |
| | 3B-0623 | [1] | PLUG-CUP | |
| | 3P-1896 | [2] | PLUG-CUP | |
| | 7W-6390 | [1] | STUD-FILTER BASE | |
| 8. | 319-6234 | [3] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 9S-9334 | [1] | PLUG | |
| | 238-5084 | [1] | SEAL-O-RING | |
| 9. | 392-9208 | [2] | PLUNGER-VALVE(RELIEF) | |
| 10. | 183-3407 | [1] | PLUG AS | |
| | 9S-8004 | [1] | PLUG(9/16-18-THD) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 11. | 368-3986 | [1] | SPRING | |
| 12. | 6V-5048 | [1] | SEAL-O-RING | |
| 13. | 6V-8359M | [1] | BOLT(M6X1X70-MM) | |
| 14. | 9S-8002 | [1] | PLUG(7/16-20-THD) | |
| | M | | METRIC PART |
