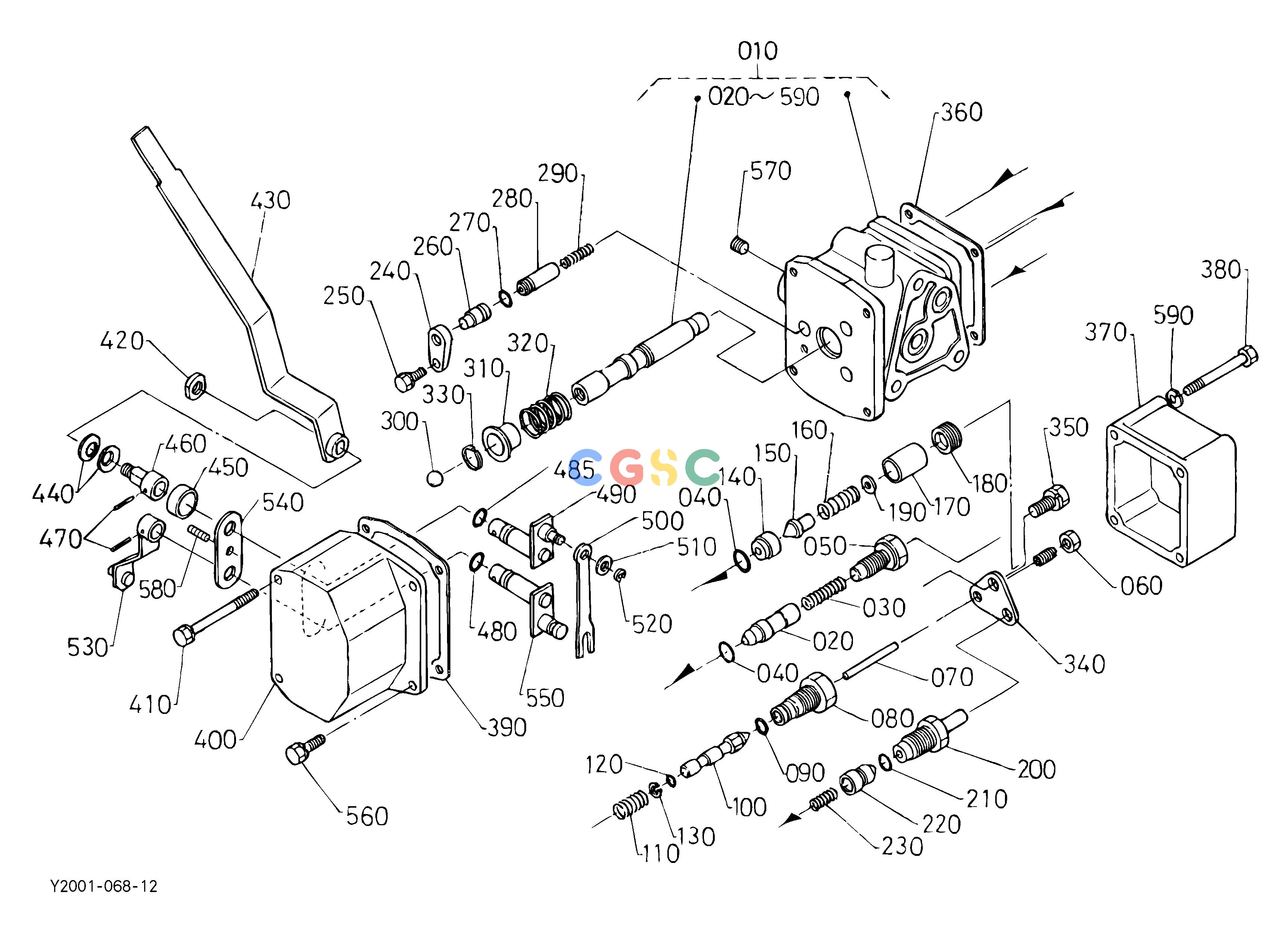

久保田零件查询T10700 CONTROL VALVE [COMPONENT PARTS] HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
904 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6641636200
|
[1] |
ASSY VALVE CONTROL
|
0.0000(lbs); 0.000
|
| 010. |
6641636203
|
[1] |
ASSY VALVE CONTROL
|
0.0000(lbs); 0.000
|
| 020. |
6715636520
|
[1] |
POPPET
|
0.0484(lbs); 0.022
|
| 030. |
6715636530
|
[1] |
SPRING
|
0.0110(lbs); 0.005
|
| 040. |
0481100120
|
[2] |
RING
|
0.0022(lbs); 0.001
|
| 050. |
6715636540
|
[1] |
PLUG
|
0.0858(lbs); 0.039
|
| 060. |
0201450060
|
[1] |
NUT
|
0.0044(lbs); 0.002
|
| 070. |
6715636550
|
[1] |
RETAINER ROD
|
0.0022(lbs); 0.001
|
| 080. |
6715636560
|
[1] |
PLUG
|
0.0022(lbs); 0.001
|
| 090. |
0481106100
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 100. |
6715636570
|
[1] |
POPPET
|
0.0484(lbs); 0.022
|
| 110. |
6715636580
|
[1] |
SPRING
|
0.0176(lbs); 0.008
|
| 120. |
0481100050
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 130. |
6715636590
|
[1] |
RING BACK UP
|
0.0022(lbs); 0.001
|
| 140. |
6715636610
|
[1] |
SEAT VALVE
|
0.0220(lbs); 0.010
|
| 150. |
6715636620
|
[1] |
POPPET
|
0.0044(lbs); 0.002
|
| 160. |
6715636630
|
[1] |
SPRING RELIEF
|
0.0286(lbs); 0.013
|
| 170. |
6715636640
|
[1] |
COLLAR
|
0.0440(lbs); 0.020
|
| 180. |
6715636650
|
[1] |
SCREW ADJUSTING
|
0.0330(lbs); 0.015
|
| 190. |
6715636660
|
[1] |
SHIM ADJUSTING
|
0.0022(lbs); 0.001
|
| 190. |
6715636670
|
[1] |
SHIM ADJUSTING
|
0.0044(lbs); 0.002
|
| 190. |
6715636680
|
[1] |
SHIM ADJUSTING
|
0.0022(lbs); 0.001
|
| 200. |
6715636690
|
[1] |
PLUG
|
0.1210(lbs); 0.055
|
| 210. |
0481000090
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 220. |
6715636710
|
[1] |
POPPET
|
0.0330(lbs); 0.015
|
| 230. |
6641636730
|
[1] |
SPRING
|
0.0990(lbs); 0.045
|
| 240. |
6715636730
|
[1] |
PLATE
|
0.2200(lbs); 0.100
|
| 250. |
0120250610
|
[1] |
BOLT
|
0.0088(lbs); 0.004
|
| 260. |
6715636740
|
[1] |
COVER
|
0.0330(lbs); 0.015
|
| 270. |
0481100070
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 280. |
6636136750
|
[1] |
POPPET
|
0.0440(lbs); 0.020
|
| 290. |
6715636760
|
[1] |
SPRING
|
0.0088(lbs); 0.004
|
| 300. |
0771503211
|
[1] |
BALL
|
0.0066(lbs); 0.003
|
| 310. |
6715636780
|
[1] |
COLLAR
|
0.0220(lbs); 0.010
|
| 320. |
6715636790
|
[1] |
SPRING SPOOL
|
0.0220(lbs); 0.010
|
| 330. |
6636136800
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 340. |
6715636820
|
[1] |
PLATE JOINT
|
0.0792(lbs); 0.036
|
| 350. |
0112350818
|
[1] |
BOLT
|
0.0264(lbs); 0.012
|
| 360. |
6715636830
|
[1] |
GASKET RELIEF COVER
|
0.0000(lbs); 0.000
|
| 370. |
6715636840
|
[1] |
COVER RELIEF
|
0.3300(lbs); 0.150
|
| 380. |
0122250650
|
[4] |
BOLT
|
0.0242(lbs); 0.011
|
| 390. |
6715636850
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 400. |
6715636862
|
[1] |
COVER VALVE
|
0.5060(lbs); 0.230
|
| 410. |
0120250665
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
| 420. |
6715636870
|
[1] |
U-NUT
|
0.0000(lbs); 0.000
|
| 420. |
6795059140
|
[1] |
U-NUT
|
0.0220(lbs); 0.010
|
| 430. |
6641638640
|
[1] |
LEVER CONTROL
|
0.5500(lbs); 0.250
|
| 440. |
6715636890
|
[2] |
WASHER SPRING
|
0.0000(lbs); 0.000
|
| 450. |
6715636910
|
[1] |
COLLAR
|
0.0286(lbs); 0.013
|
| 460. |
6715636920
|
[1] |
SHAFT CONTROL ARM
|
0.0440(lbs); 0.020
|
| 470. |
0541100516
|
[2] |
PIN SPRING
|
0.0044(lbs); 0.002
|
| 480. |
0481100090
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 485. |
0481100110
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 490. |
6715636932
|
[1] |
SHAFT CONTROL LEVER
|
0.1430(lbs); 0.065
|
| 500. |
6636136940
|
[1] |
LEVER SPOOL DRIVE
|
0.0880(lbs); 0.040
|
| 510. |
0401250060
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 520. |
0461300050
|
[1] |
CIRCLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 530. |
6715636952
|
[1] |
ARM FEED BACK
|
0.1100(lbs); 0.050
|
| 540. |
6715636960
|
[1] |
PLATE
|
0.0000(lbs); 0.000
|
| 540. |
6715636962
|
[1] |
PLATE
|
0.0264(lbs); 0.012
|
| 550. |
6715636970
|
[1] |
SHAFT BACK LEVER
|
0.1188(lbs); 0.054
|
| 560. |
0120250620
|
[2] |
BOLT
|
0.0154(lbs); 0.007
|
| 570. |
6715636980
|
[4] |
PLUG SCREW
|
0.0088(lbs); 0.004
|
| 580. |
0341050616
|
[1] |
SCREW SET
|
0.0110(lbs); 0.005
|
| 590. |
0451250060
|
[4] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
