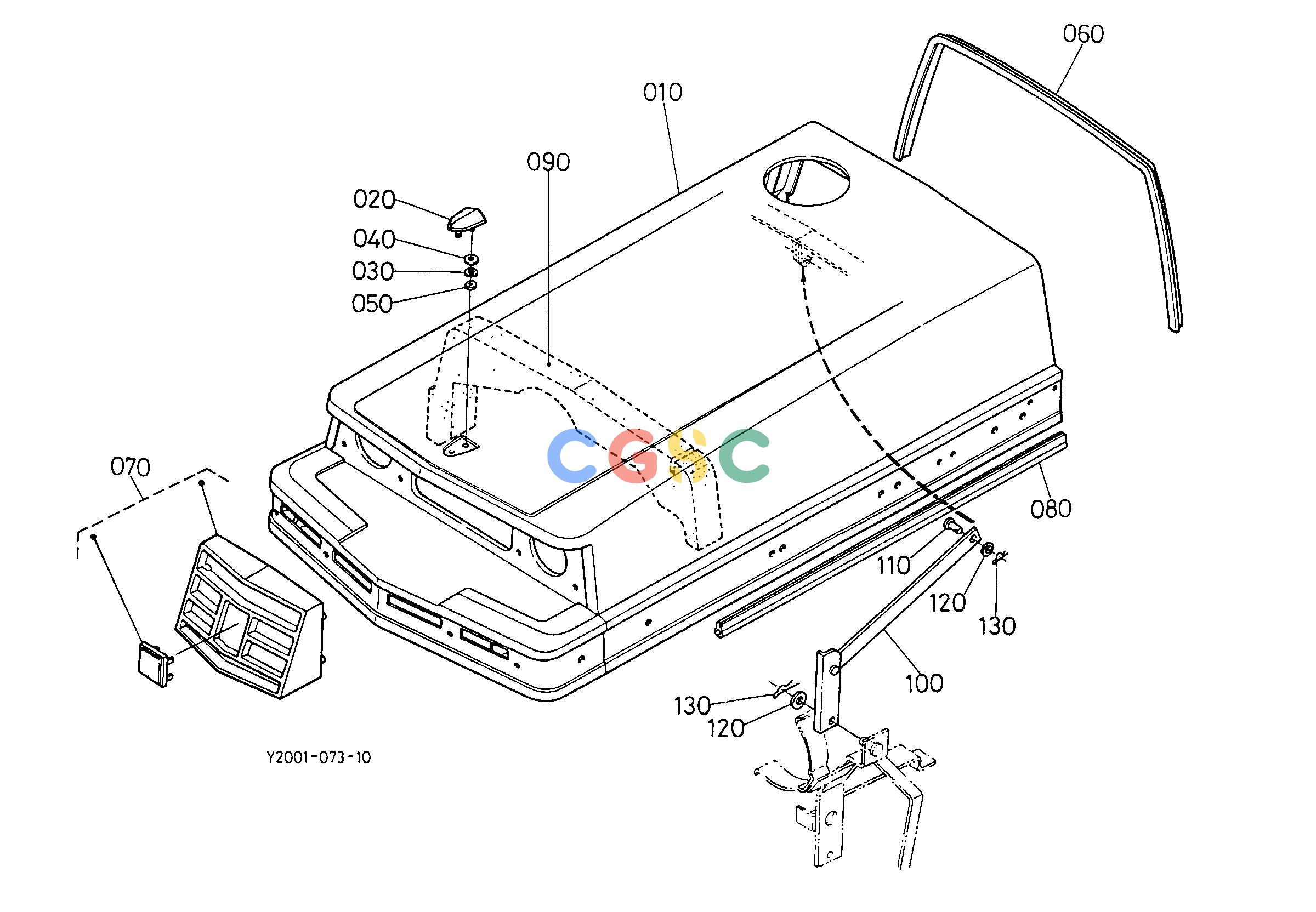

久保田零件查询T11100 HOOD (BONNET) HOOD(BONNET)/CHASSISEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
260 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6641654103
|
[1] |
COMP.BONNET
|
0.0000(lbs); 0.000
|
| 010. |
6641654105
|
[1] |
COMP.BONNET
|
16.5000(lbs); 7.500
|
| 020. |
3135165180
|
[1] |
MASCOT
|
0.0220(lbs); 0.010
|
| 030. |
0451250040
|
[1] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 040. |
0401350040
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 050. |
0205450040
|
[1] |
NUT
|
0.0066(lbs); 0.003
|
| 060. |
6641654110
|
[1] |
CUSHION BONNET
|
0.1980(lbs); 0.090
|
| 060. |
6641654113
|
[1] |
CUSHION BONNET
|
0.1980(lbs); 0.090
|
| 070. |
6641654410
|
[1] |
MASK FRONT
|
0.0000(lbs); 0.000
|
| 070. |
6641654412
|
[1] |
MASK FRONT
|
0.5060(lbs); 0.230
|
| 080. |
6641654120
|
[2] |
TRIM BONNET SIDE
|
0.1320(lbs); 0.060
|
| 090. |
6641651452
|
[1] |
BLOCK DUSTPROOF
|
0.0880(lbs); 0.040
|
| 100. |
6641654240
|
[1] |
ASSY LINK BONNET
|
0.6160(lbs); 0.280
|
| 110. |
0512250816
|
[1] |
PIN JOINT
|
0.0154(lbs); 0.007
|
| 120. |
0401350080
|
[2] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 120. |
0471700800
|
[2] |
WASHER WITH RUBBER
|
0.0022(lbs); 0.001
|
| 130. |
0552550800
|
[2] |
PIN SNAP
|
0.0022(lbs); 0.001
|
