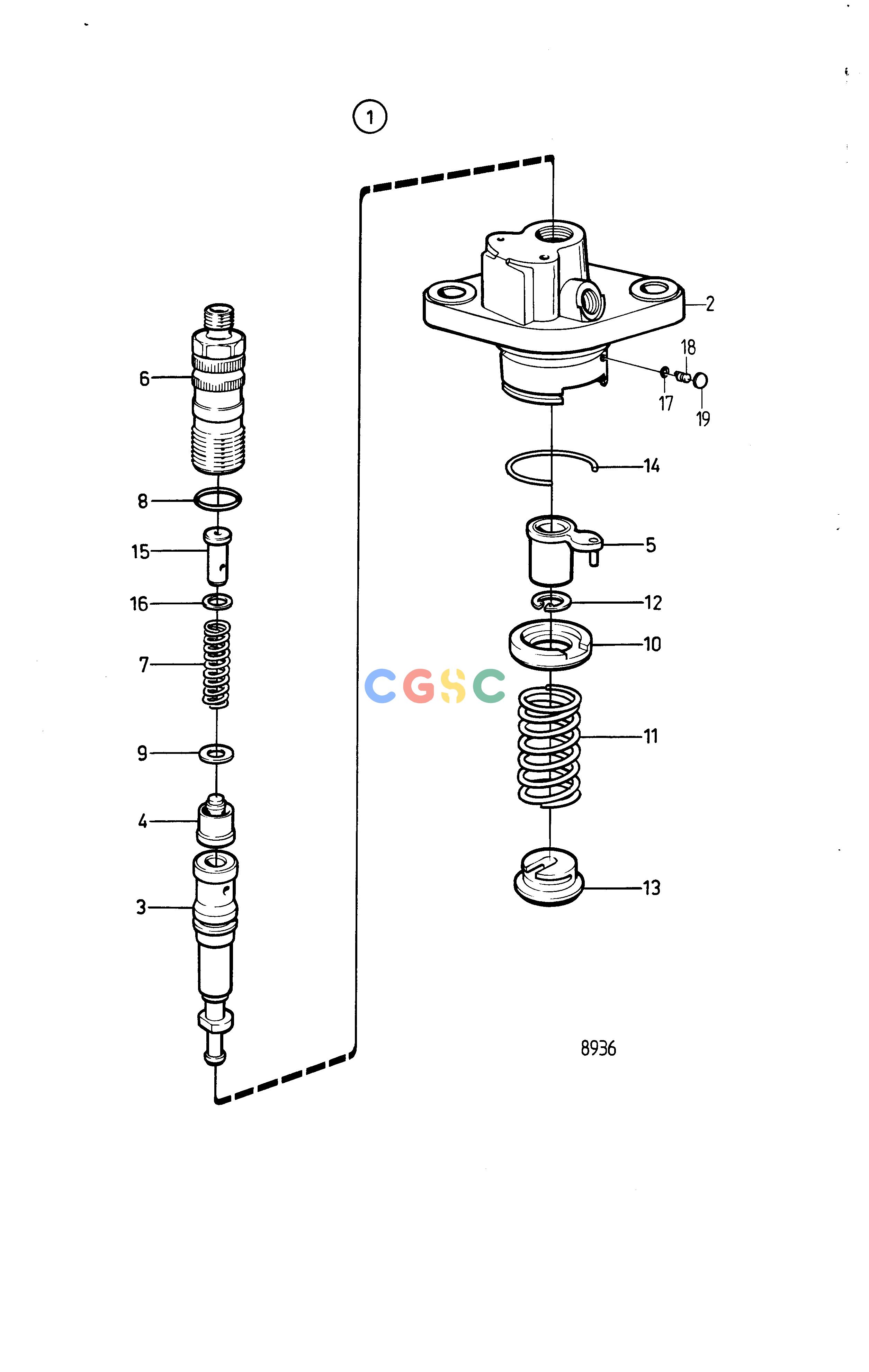

沃尔沃零件查询2001; 2001B; 2001AG; 2001BG; 2002; 2002B; 2002D; 2002AG; 2002BG; 2003; 2003B; 2003D; 2003AG; 2003BG; 2003T; 2003TB; 2003 SOLAS; 2003B SOLAS; 2003TFuel SystemFuel Injection Pump: 860793EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
1009 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
860793
|
[1] |
Injection pump
|
2001B,2001BG
|
| 2. |
|
|
|
|
| 3. |
858939
|
[1] |
Pump element
|
|
| 4. |
861021
|
[1] |
Delivery valve
|
|
| 5. |
861022
|
[1] |
Control sleeve
|
|
| 6. |
243420
|
[1] |
Retainer
|
|
| 7. |
238309
|
[1] |
Compression spring
|
|
| 8. |
861023
|
[1] |
O-ring
|
|
| 9. |
870581
|
[1] |
Gasket
|
|
| 10. |
870023
|
[1] |
Spring disc
|
|
| 11. |
840852
|
[1] |
Compression spring
|
|
| 13. |
840853
|
[1] |
Spring disc
|
|
| 14. |
840854
|
[1] |
Clamping ring
|
|
| 15. |
870576
|
[1] |
Filling-in plug
|
|
| 16. |
238314
|
[1] |
Adjusting washer
|
TH=1.0mm
|
| 17. |
858089
|
[1] |
O-ring
|
|
| 18. |
858090
|
[1] |
Screw
|
|
| 19. |
243410
|
[1] |
Washer
|
|
