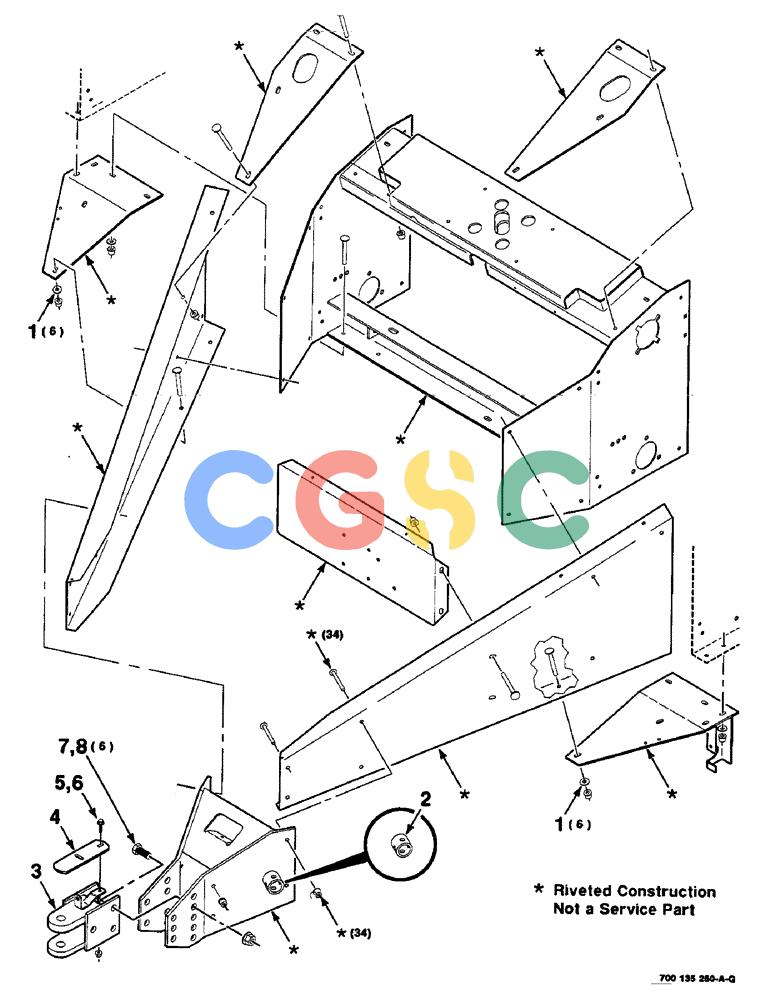

凯斯零件查询(8435) - CASE IH SILAGE SPECIAL ROUND BALER (1/97-12/00) (7-06) - HITCH AND TONGUE ASSEMBLIES, SERIAL NUMBER CFH0124401 AND LATER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
585 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
496-81010
|
[12] |
WASHER
|
CAS
3/8 HARDENED WIDE PLAIN WASHER Superseded by part number: 86625244
|
| 2. |
6227391
|
[1] |
TUBE,2" OD, 1.88" Length
|
CAS
- jack
|
| 3. |
700147507
|
[1] |
TRAILER HITCH
|
HFI
HITCH WA
|
| 4. |
700132315
|
[1] |
PLATE
|
HFI
|
| 5. |
121-237
|
[1] |
SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl
|
CAS
3/8-16 X 1-1/4 HFS GR8 Superseded by part number: 87327172
|
| 6. |
232-5316
|
[1] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 7. |
413-1228
|
[6] |
BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5
|
CAS
3/4-10 x 1-3/4 C Superseded by part number: 88725
|
| 8. |
232-53112
|
[6] |
FLANGE NUT,Flg, 3/4"-10
|
CAS
3/4-10 HFTLN GR/G Superseded by part number: 86512372
|
