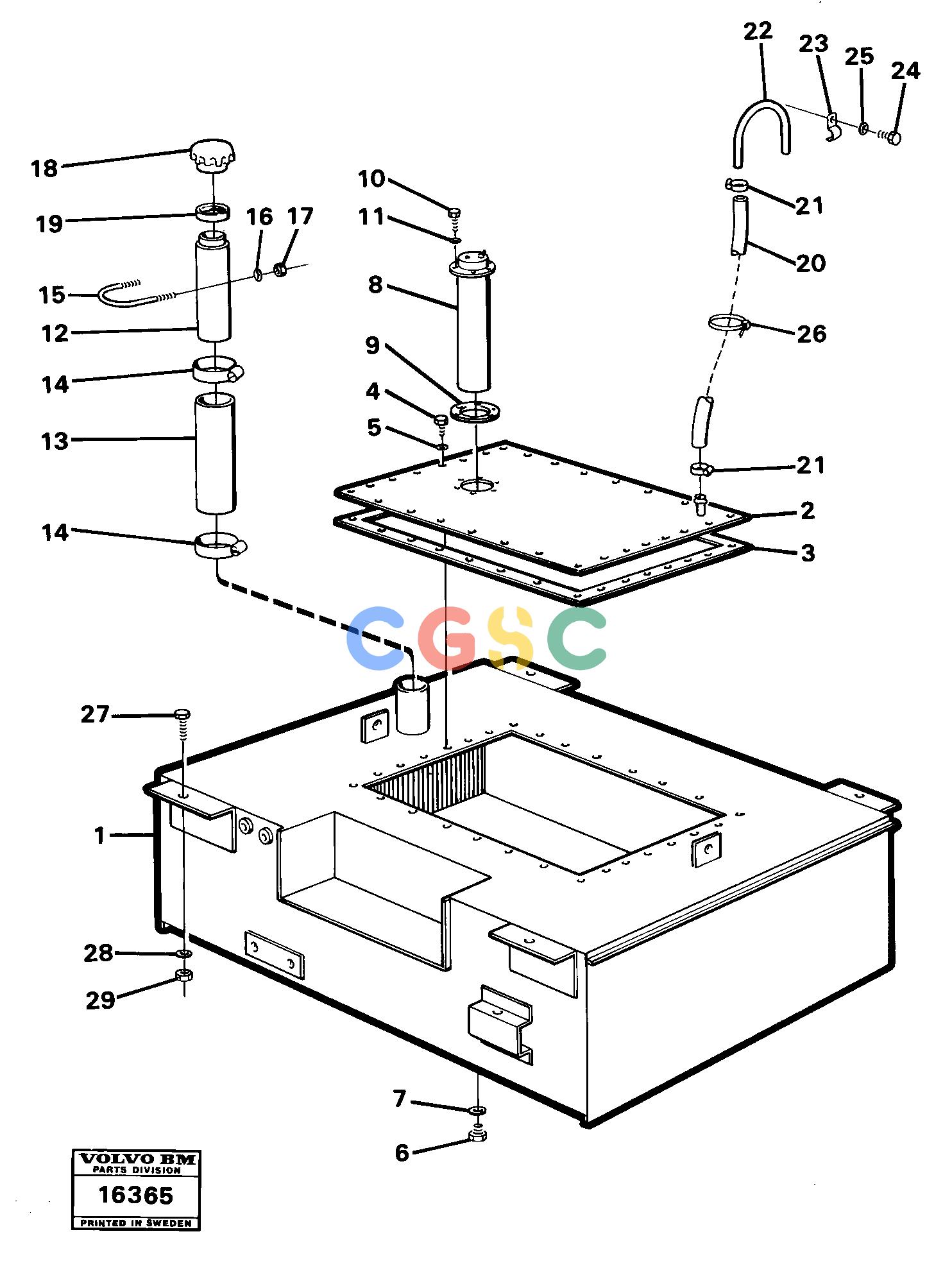

沃尔沃零件查询4500 Fuel tank4500 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
1030 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE4929461
|
[0024] |
Washer
|
|
| 6. |
VOE914392
|
[0001] |
Plug
|
|
| 7. |
VOE957184
|
[0001] |
Gasket
|
|
| 8. |
VOE4740537
|
[0001] |
Tank unit
|
|
| 9. |
VOE4708245
|
[0001] |
Gasket
|
|
| 1. |
VOE4851155
|
[0001] |
Fuel tank
|
|
| 10. |
VOE956094
|
[0006] |
Cross recessed screw
|
|
| 11. |
VOE957170
|
[0006] |
Gasket
|
|
| 12. |
VOE4761322
|
[0001] |
Filler pipe
|
|
| 13. |
VOE4780206
|
[0001] |
Hose
|
|
| 14. |
VOE943480
|
[2] |
Hose clamp
|
|
| 15. |
VOE4761310
|
[1] |
Clamp
|
|
| 16. |
VOE13955894
|
[2] |
Washer
|
|
| 17. |
VOE963106
|
[2] |
Lock nut
|
|
| 18. |
VOE421753
|
[1] |
Filler cap
|
|
| 19. |
VOE1275379
|
[1] |
Gasket
|
|
| 2. |
VOE4851484
|
[0001] |
Cover
|
|
| 20. |
VOE941680
|
[REQ] |
Hose
|
L=1300
|
| 21. |
VOE13943472
|
[2] |
Hose clamp
|
|
| 22. |
VOE4851633
|
[1] |
Tube
|
|
| 23. |
VOE942022
|
[1] |
Clamp
|
|
| 24. |
VOE13955294
|
[1] |
Screw
|
|
| 25. |
VOE13955894
|
[1] |
Washer
|
|
| 26. |
VOE4881440
|
[1] |
Cable tie
|
|
| 27. |
VOE13970972
|
[4] |
Hexagon screw
|
|
| 28. |
VOE13960145
|
[0006] |
Washer
|
|
| 29. |
VOE13971090
|
[0002] |
Lock nut
|
|
| 3. |
VOE4931525
|
[0001] |
Gasket
|
|
| 4. |
VOE13946173
|
[0024] |
Screw
|
|
