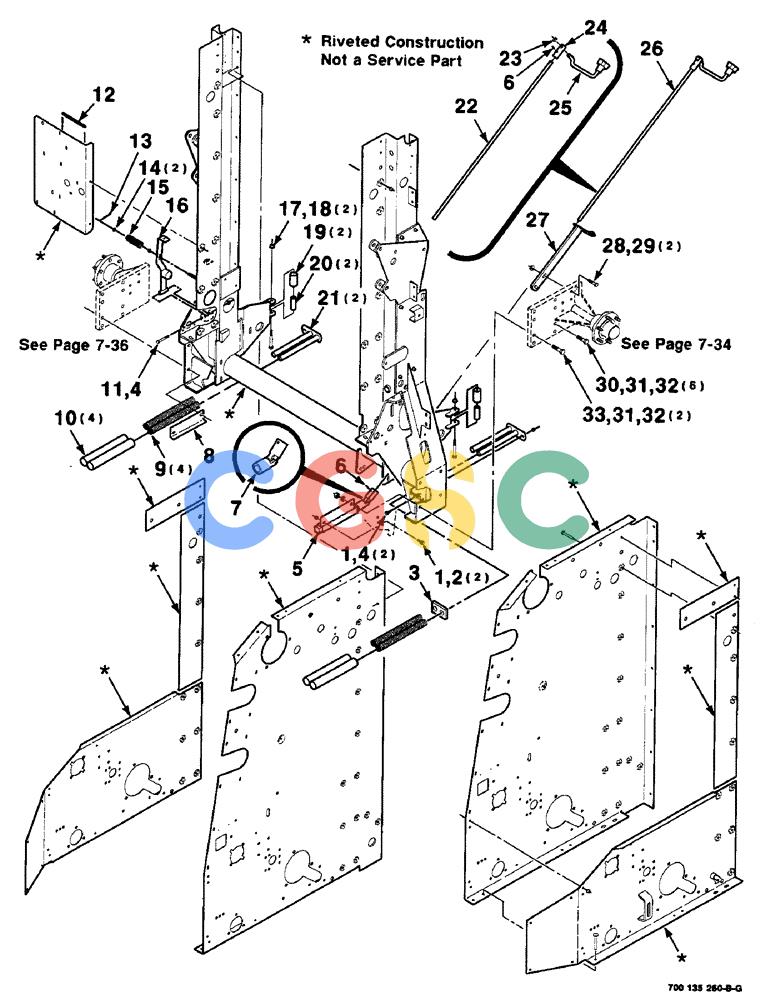

| 1. |
121-237
|
[4] |
SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl
|
CAS
3/8-16 X 1-1/4 HFS GR8 Superseded by part number: 87327172
|
| 2. |
231-5146
|
[2] |
FLANGE NUT,3/8"-16
|
CAS
Superseded by part number: 72187068, 247780
|
| 3. |
700147575
|
[1] |
SPACER
|
HFI
|
| 4. |
232-5316
|
[3] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 5. |
700715738
|
[1] |
JACK
|
CAS
ASSEMBLY (includes item 7)
|
| 6. |
435-7614
|
[2] |
GROOVED PIN,3/16" x 7/8", Type G
|
CAS
Pin, Grooved, 3/16" x 7/8", Type G
|
| 7. |
700715754
|
[1] |
JOINT
|
CAS
U-JOINT Superseded by part number: 700728184
|
| 8. |
700132319
|
[1] |
ANGLE
|
HFI
|
| 9. |
700716912
|
[4] |
SPRING
|
CAS
- compression
|
| 10. |
700135993
|
[4] |
TUBE
|
HFI
- wa
|
| 11. |
413-648
|
[1] |
BOLT,Hex, 3/8" - 16 x 3", Gr 5
|
CAS
Superseded by part number: 280161
|
| 12. |
1117746
|
[1] |
ORNAMENTAL STRIP
|
CAS
TRIM - edge
|
| 13. |
432-816
|
[1] |
COTTER PIN,1/8" x 1"
|
CAS
1/8" x 1" Superseded by part number: 80755
|
| 14. |
496-11041
|
[2] |
WASHER,13/32" x 13/16" x .065", HDN
|
CAS
3/8 HARDENED PLAIN WASHER Superseded by part number: 86632588
|
| 15. |
700707978
|
[1] |
SPRING
|
IH
- compression
|
| 16. |
700135980
|
[1] |
SUPPORT
|
HFI
WA
|
| 17. |
413-864
|
[2] |
BOLT,Hex, 1/2" - 13 x 4", Gr 5
|
CAS
1/2-13 X 4 C Superseded by part number: 86505993
|
| 18. |
230-4118
|
[2] |
LOCK NUT,1/2"-13, GA
|
CAS
1/2-13 HTLN GR/B
|
| 19. |
700132293
|
[2] |
TUBE,38.1 mm OD, 66 mm Length
|
HFI
- roller Superseded by part number: 700155971
|
| 20. |
6250351
|
[2] |
SPACER
|
HFI
|
| 21. |
700135990
|
[2] |
GUIDE
|
HFI
- wa
|
| 22. |
700132317
|
[1] |
CRANK
|
CAS
ROD - crank Superseded by part number: 700715760
|
| 23. |
51200194
|
[1] |
RETAINER
|
CAS
RING - retaining
|
| 24. |
700132516
|
[1] |
TUBE
|
HFI
Superseded by part number: 700715760
|
| 25. |
700715780
|
[1] |
HANDLE
|
CAS
Superseded by part number: 700715760
|
| 26. |
700715760
|
[1] |
CRANK
|
CAS
- assembly
|
| 27. |
700132318
|
[1] |
SUPPORT
|
CAS
- wa
|
| 28. |
413-832
|
[2] |
BOLT,Hex, 1/2" - 13 x 2", Gr 5
|
CAS
Superseded by part number: 9706716
|
| 29. |
231-5148
|
[2] |
FLANGE NUT,Flg, USR, 1/2"-13
|
CAS
Superseded by part number: 72187069, 86512371
|
| 30. |
413-1036
|
[6] |
BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5
|
CAS
5/8-11 X 2-1/4 C Superseded by part number: 88556
|
| 31. |
492-11062
|
[8] |
BEARING WASHER,5/8"
|
CAS
WASHER, LOCK, 5/8" Superseded by part number: 86729275
|
| 32. |
425-1010
|
[8] |
NUT,5/8"-11, G5
|
CAS
Superseded by part number: 280374
|
| 33. |
413-1040
|
[2] |
BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5
|
CAS
Superseded by part number: 280233
|
