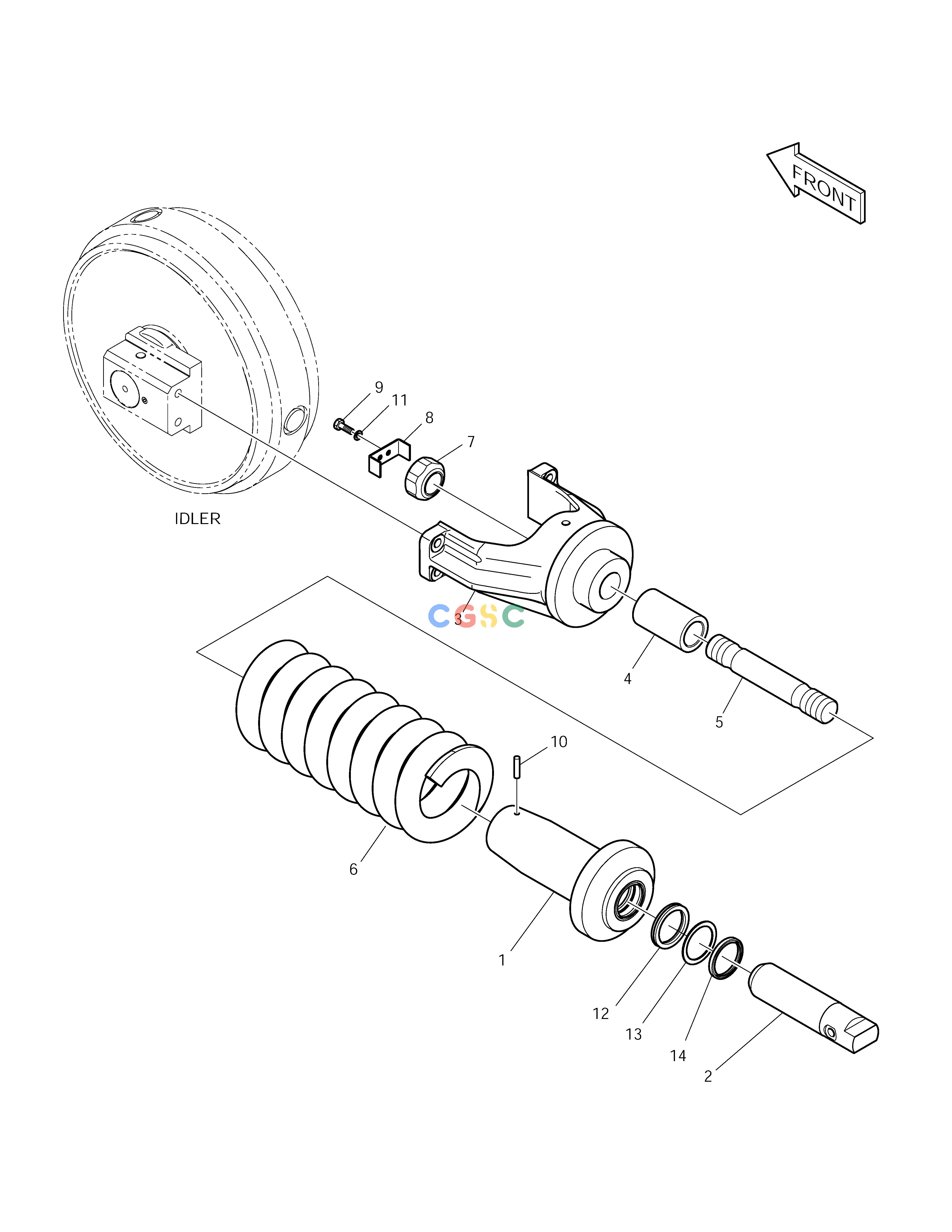

斗山零件查询TRACK SPRING DX160LC Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
401 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
K9004529
|
[1] |
SEAL KIT;TRACK SPRING
|
|
| -. |
K1024943
|
[2] |
TRACK SPRING
|
K1024943A
|
| -. |
K1024943A
|
[2] |
TRACK SPRING
|
|
| 1. |
NA00079
|
[1] |
BODY
|
|
| 10. |
S5741262
|
[1] |
PIN;SPRING
|
|
| 11. |
S5102603
|
[2] |
. WASHER
|
|
| 12. |
NA00740
|
[1] |
PACKING
|
|
| 13. |
NA00946
|
[1] |
|
|
| 14. |
NA01082
|
[1] |
. SEAL
|
|
| 2. |
K1024948
|
[1] |
ROD;PISTON
|
|
| 3. |
K1024949
|
[1] |
YOKE
|
|
| 4. |
K1024950
|
[1] |
SPACER
|
|
| 5. |
K1024953
|
[1] |
SHAFT
|
|
| 6. |
2129-1236
|
[1] |
. SPRING
|
|
| 7. |
K1024956
|
[1] |
NUT
|
|
| 8. |
K1024957
|
[1] |
PLATE;LOCK
|
|
| 9. |
S0512266
|
[2] |
BOLT
|
|
