卡特零件查询（725） 233-5221: PUMP GP-ENGINE OIL
广数供应链运营团队, 14 02月, 2025，浏览：
225 次

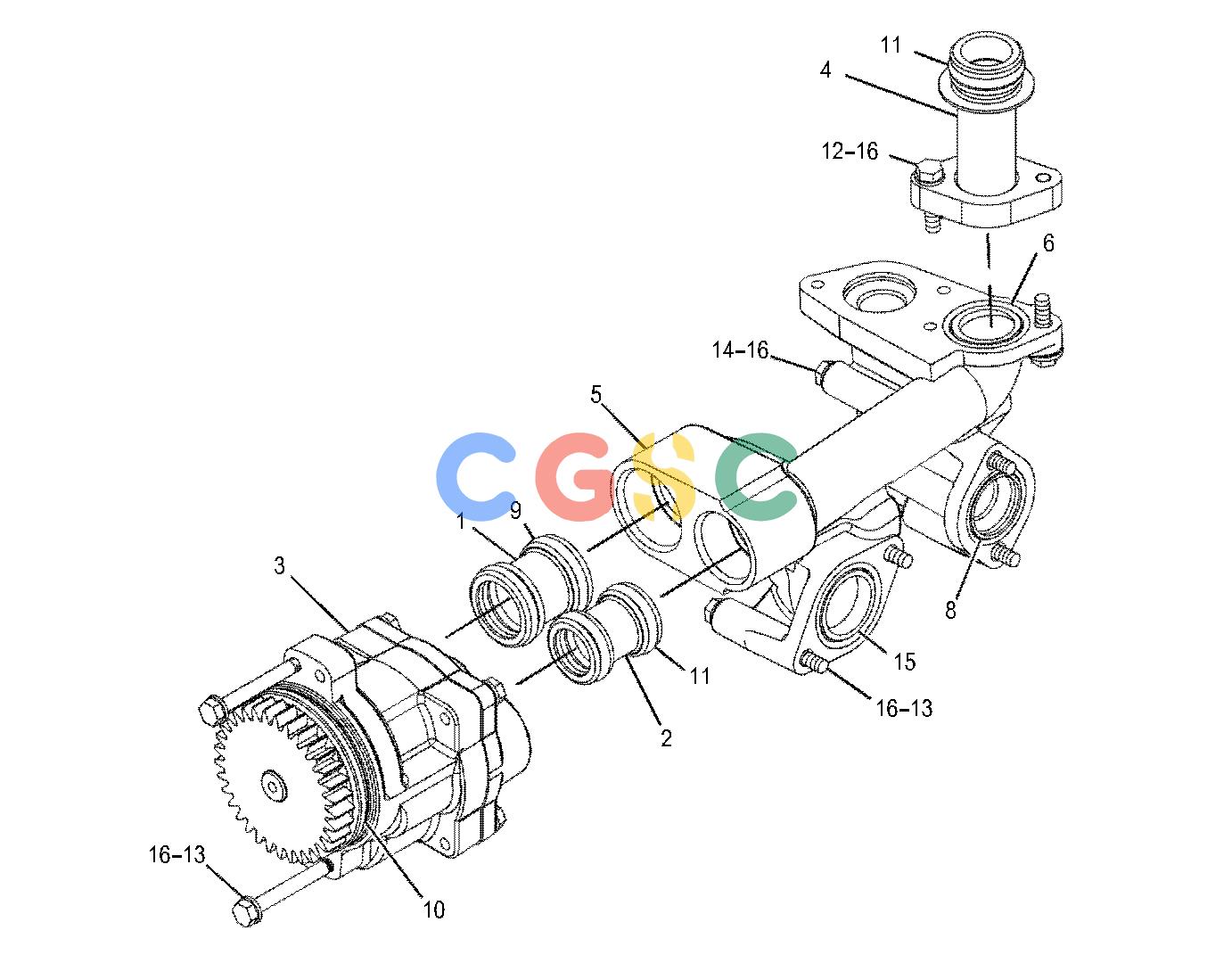

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7C-1821 | [1] | COUPLING | |
| 2. | 7C-1822 | [1] | COUPLING | |
| 3. | 233-5220Y | [1] | PUMP GP-ENGINE OIL | |
| 4. | 493-6920 | [1] | TUBE AS | |
| 5. | 235-1451 | [1] | ELBOW-OIL PUMP | |
| 6. | 346-4897 | [1] | SEAL-O-RING | |
| 8. | 3E-6788 | [1] | SEAL-O-RING | |
| 9. | 5P-8068 | [2] | SEAL-O-RING | |
| 10. | 6V-3834 | [1] | SEAL-O-RING | |
| 11. | 6V-5134 | [3] | SEAL-O-RING | |
| 12. | 6V-2317M | [2] | BOLT(M8X1.25X30-MM) | |
| 13. | 6V-5221M | [5] | BOLT(M8X1.25X80-MM) | |
| 14. | 7X-0870M | [1] | BOLT(M8X1.25X140-MM) | |
| 15. | 8J-4351 | [1] | SEAL-O-RING | |
| 16. | 9M-1974 | [8] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
