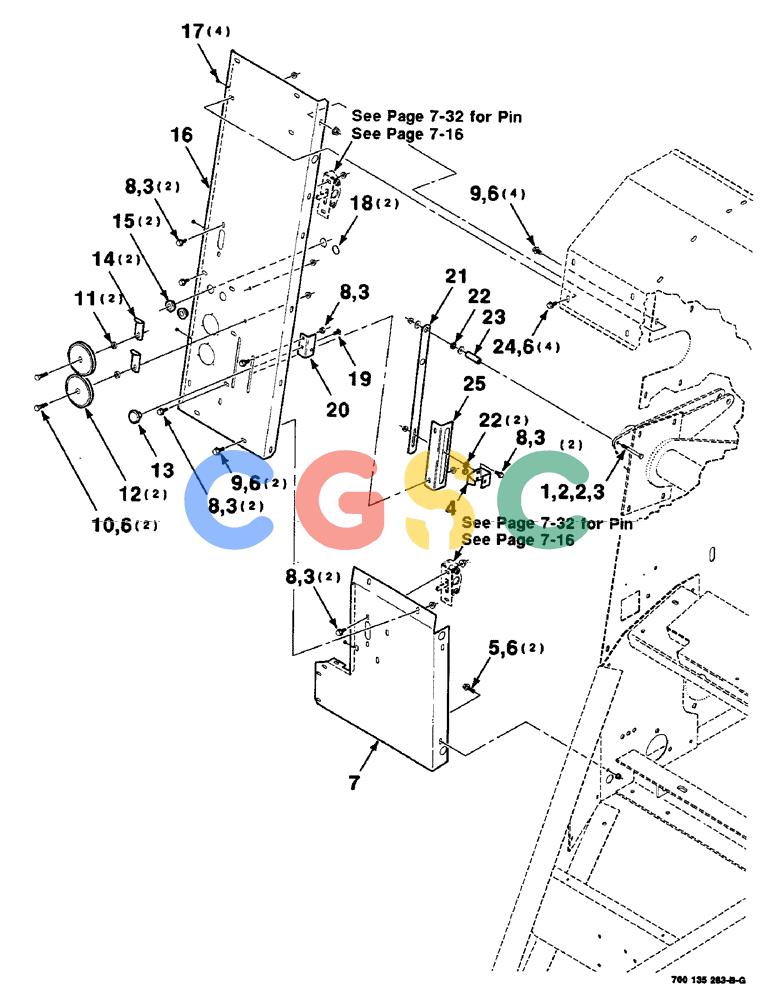

凯斯零件查询(8435) - CASE IH SILAGE SPECIAL ROUND BALER (1/97-12/00) (7-14) - SHIELD, LATCH AND BALE INDICATOR ASSEMBLIES, RIGHT, SERIAL NUMBER CFH0124401 AND LATER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
452 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
413-548
|
[1] |
BOLT,Hex, 5/16" - 18 x 3", Gr 5
|
CAS
Superseded by part number: 88731
|
| 2. |
495-61034
|
[2] |
WASHER,0.34" ID x 0.88" OD x 0.06" Thk
|
CAS
5/16 WIDE PLAIN WASHER
|
| 3. |
232-5315
|
[10] |
FLANGE NUT,Flg, 5/16"-18
|
CAS
5/16-18 HFTLN GR/G
|
| 4. |
700115976
|
[1] |
INDICATOR
|
HFI
|
| 5. |
121-237
|
[2] |
SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl
|
CAS
3/8-16 X 1-1/4 HFS GR8 Superseded by part number: 87327172
|
| 6. |
232-5316
|
[14] |
FLANGE NUT,Flg, 3/8"-16
|
CAS
3/8-16 HFTLN GR/G Superseded by part number: 86521609
|
| 7. |
700147589
|
[1] |
SHIELD
|
HFI
- lower, right
|
| 8. |
121-115
|
[9] |
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
|
CAS
|
| 9. |
409-7612
|
[6] |
BOLT,3/8"-16 x 1.09" OAL
|
CAS
3/8-16 X 3/4 HWHMS Superseded by part number: 72187187, 255918
|
| 10. |
413-620
|
[2] |
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
|
CAS
C Hex, 3/8"-16 x 1 1/4", G5, Full Thd Superseded by part number: 72187207, 88011
|
| 11. |
700116106
|
[2] |
SPACER
|
HFI
|
| 12. |
700714888
|
[2] |
PULLEY
|
HFI
Superseded by part number: 700725038
|
| 13. |
700707234
|
[1] |
BUTTON
|
IH
KNOB
|
| 14. |
700132485
|
[2] |
GUIDE
|
HFI
|
| 15. |
700107977
|
[2] |
GUIDE
|
CAS
- twine
|
| 16. |
700135965
|
[1] |
SHIELD
|
HFI
- upper, right
|
| 17. |
700715104
|
[4] |
BUMPER
|
CAS
|
| 18. |
100-11100
|
[2] |
SNAP RING,#100, Ext
|
CAS
Ring, Snap, #100, Ext Superseded by part number: 25121
|
| 19. |
433-512
|
[1] |
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5
|
CAS
Superseded by part number: 280327
|
| 20. |
700115974
|
[1] |
SUPPORT
|
HFI
- switch
|
| 21. |
700132482
|
[1] |
LINK
|
HFI
|
| 22. |
700115973
|
[3] |
SPACER
|
CAS
|
| 23. |
700132481
|
[1] |
SPACER
|
HFI
|
| 24. |
121-226
|
[4] |
SERRATED BOLT,Hex, 3/8" - 16 x 1"
|
CAS
Superseded by part number: 87034804
|
| 25. |
700132479
|
[1] |
ANGLE
|
HFI
|
